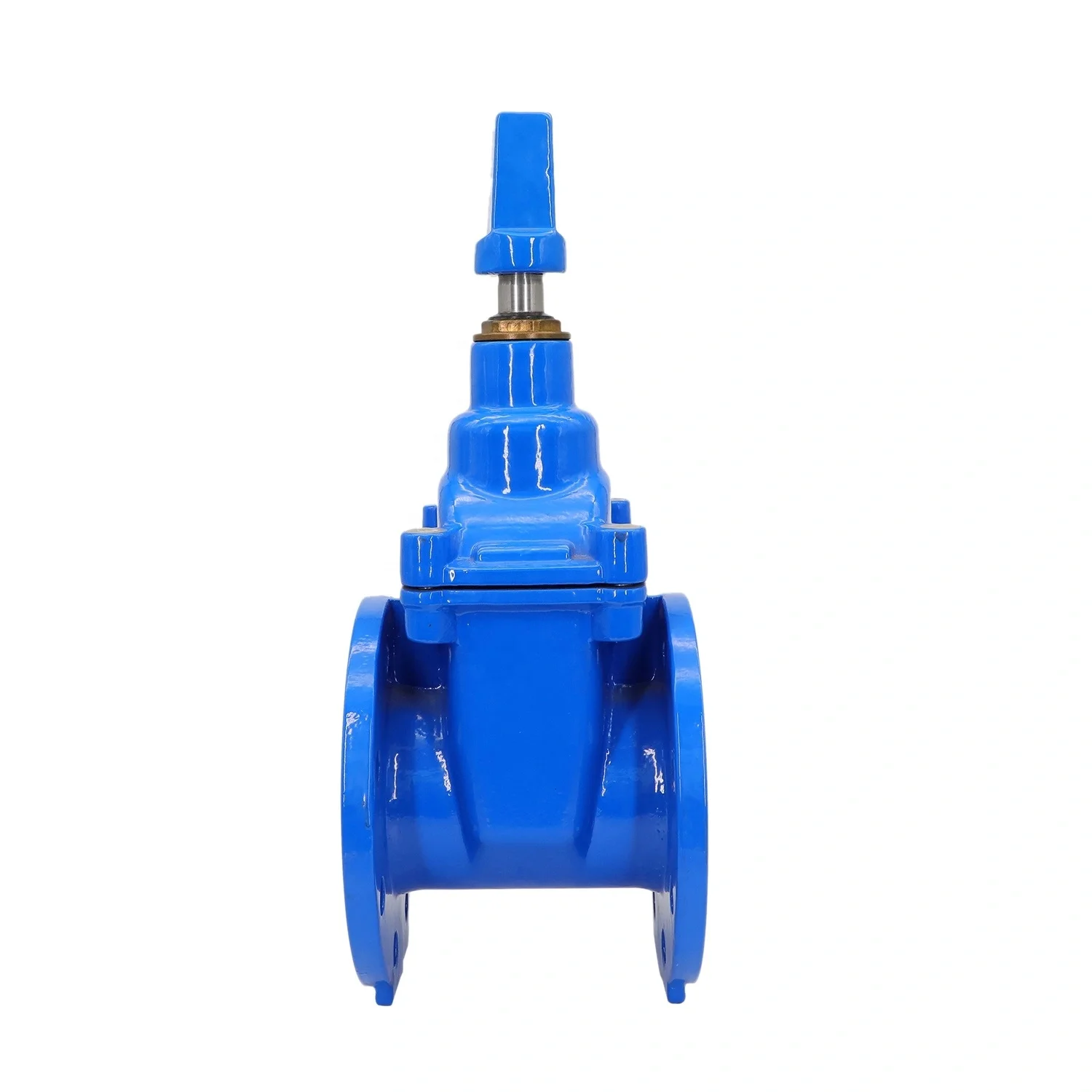

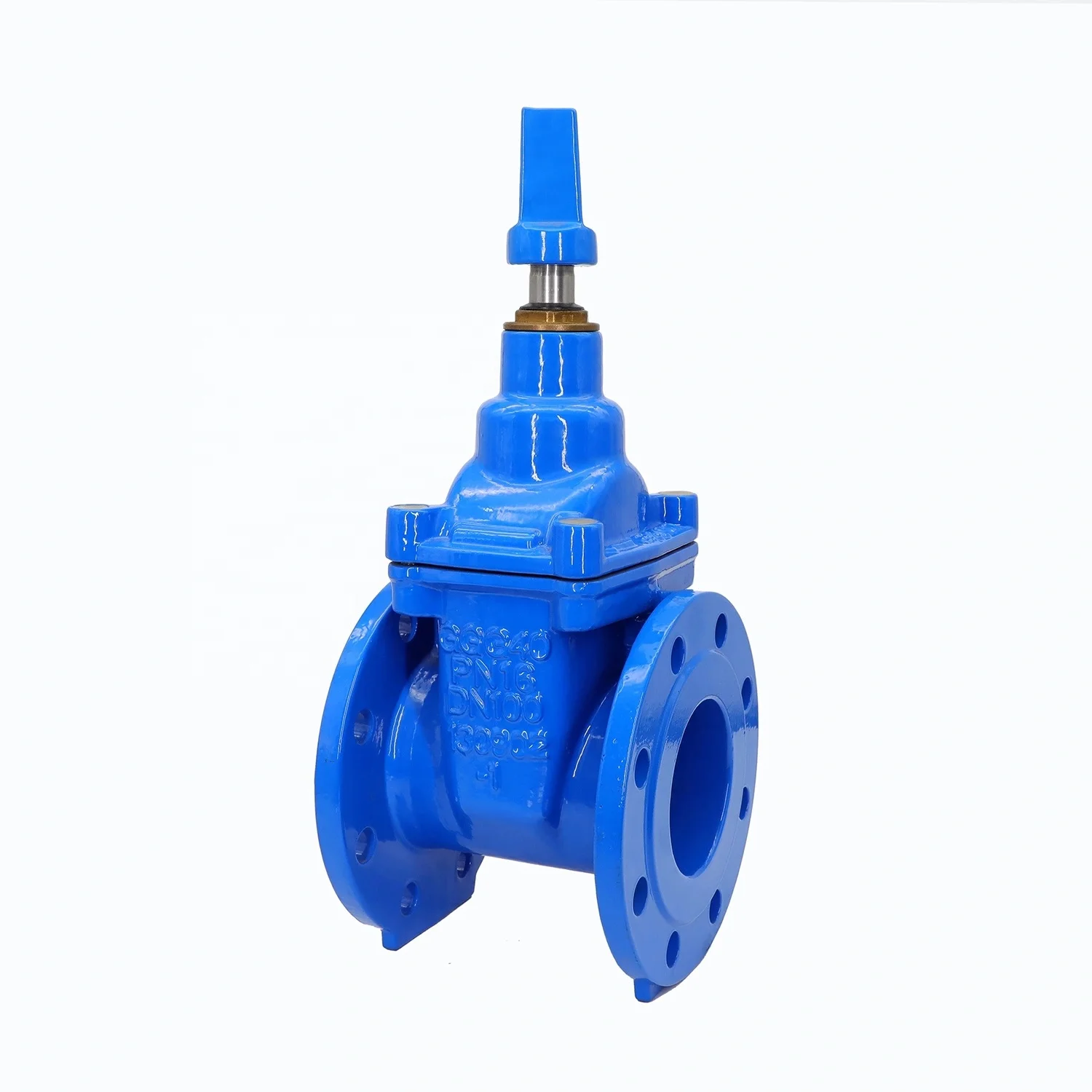

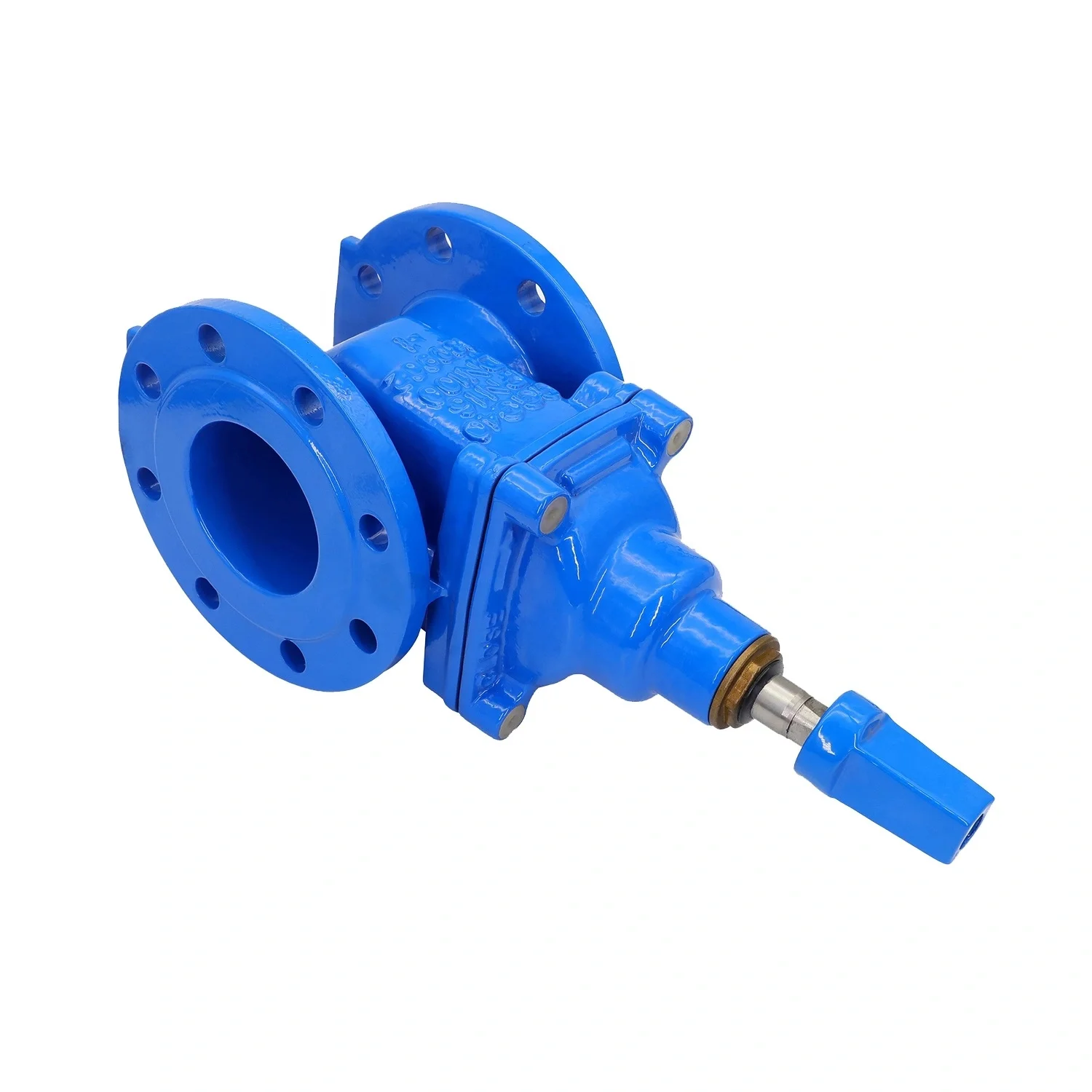

Pn10/16 BS5163 Dinf4/F5 Nrs Resilient Seated Gate Valve With Flanged Ends
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SOLID
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN,QINGDAO,SHANGHAI
Delivery Detail:
15 days
Related Products
-
Cast Iron Rising Stem Knife Gate Valve With Electric/Pneumatic DriveNegotiableMOQ: 50 Pieces -
DIN3352 F4 DI (GGG40/GGG50) Double Flanged End Metal Seal Gate ValveNegotiableMOQ: 50 Pieces
-
PN16 DN75 Ductile Iron GGG50 Non Rising Stem Spigot Ends Resilient Seated Gate ValveNegotiableMOQ: 50 Pieces
-
Red Color AWWA C509 Ductile Iron Flanged Ends NRS Resilient Seated Sluice Gate Valve PriceNegotiableMOQ: 50 Pieces
-
BS5163 Big Size DN500 Epoxy Coated Metal Seated by Pass Flanged Gate ValveNegotiableMOQ: 50 Pieces
Brand Name
SOLID
Place of Origin
China
Product Description
Face To Face Standard: EN558,(DIN3202 F4/F5, BS5163, SABS664/665)
Design Standard: BS EN1171/EN1074-2
Flanges Standard: BS EN1092-2
Inspection & testing: BS EN 12266-1 (Other Flange Types available on request) (ISO Top Flange, Indicator available on request)
Fusion Bonded Epoxy Powder Coated Interior and Exterior to EN14901
Working Pressure: 16bar
Working Temperature: -20ºC to 100ºC
Operator: Handwheel,Operating Nut,Gearbox,Extension Spindle
| No | Part | Material |
| 1 | Body | Ductile Iron |
| 2 | Wedge | DI & EPDM |
| 3 | Wedge Nut | Brass |
| 4 | Bonnet | Ductile Iron |
| 5 | Stem | SS420 |
| 6 | Gland | Brass |
| 7 | Handwheel | Ductile Iron |
| 8 | Bonnet Gasket | NBR/EPDM |
| 9 | Bonnet /Gasket Bolt | CS With ZINC Plated/SS304 |
| 10 | Wedge Nut Gasket | NBR/EPDM |
| 11 | Washers | Nylon/Brass |
| 12 | O-ring | NBR/EPDM |
| 13 | Dust Cap | NBR/EPDM |
| 14 | Handwheel Bolts | SS304 |
Detailed Images
