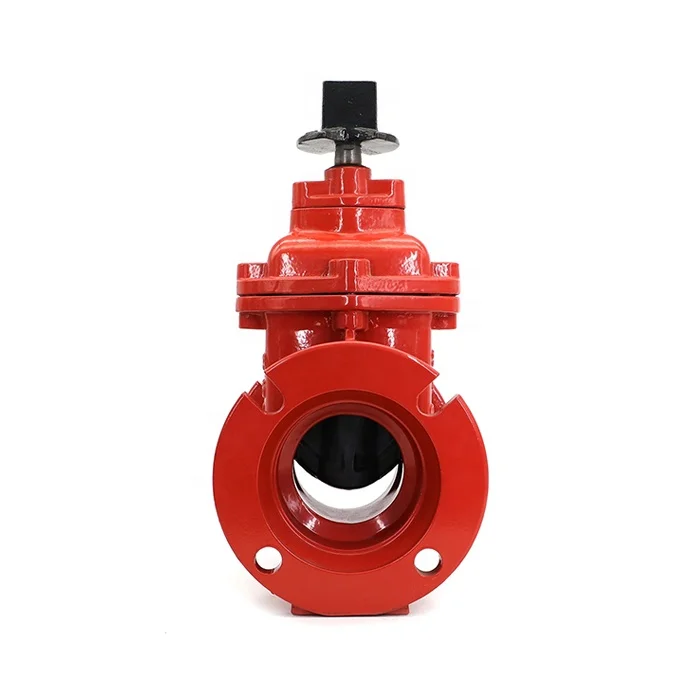

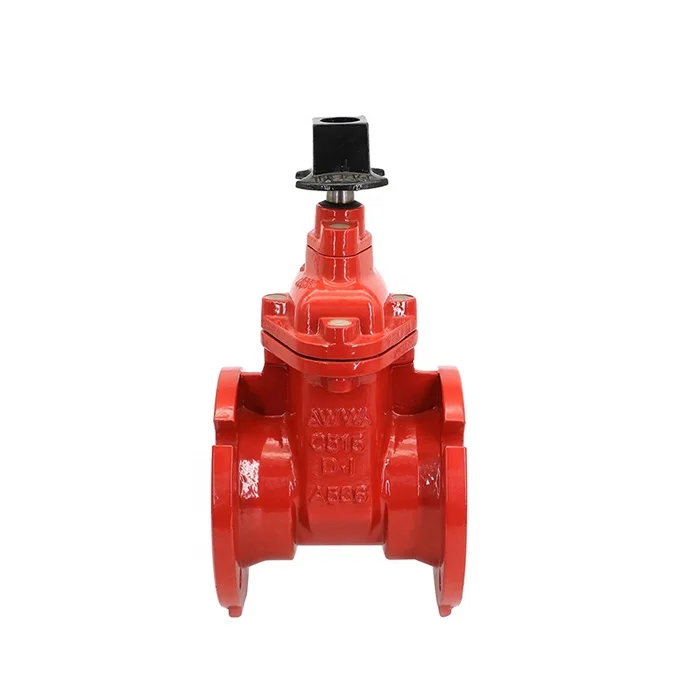

Awwa C509/515 Ductile Cast Iron Mechanical Connection Resilient Gate Valve
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SOLID
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN,QINGDAO,SHANGHAI
Delivery Detail:
15 days
Related Products
-
Awwa C515 Ductile Iron OS&Y Type Rising Stem Resilient Seat Flanged End Gate ValveNegotiableMOQ: 50 Pieces -
Awwa Inside Screw Rising Long Stem Flanged Gate ValveNegotiableMOQ: 50 Pieces
-
Pn10/16 BS5163 Dinf4/F5 Nrs Resilient Seated Gate Valve With Flanged EndsNegotiableMOQ: 50 Pieces
-
Cast Iron Rising Stem Knife Gate Valve With Electric/Pneumatic DriveNegotiableMOQ: 50 Pieces
-
DIN3352 F4 DI (GGG40/GGG50) Double Flanged End Metal Seal Gate ValveNegotiableMOQ: 50 Pieces
Brand Name
SOLID
Place of Origin
China
Product Description
Design Standard AWWA C515.
Face to Face:ASME B16.10.
Non-Rising stem, Resilient Seated.
Fusion Bonded Epoxy Coated Interior and Exterior to
AWWA C550 Standard.
Inspection & testing:AWWA C515.
Working Pressure:250PSI.
(200 and 300 PSI available on request)
Working Temperature:-20ºC to 100ºC(-4°F to 212°F)
Operator:Handwheel,2"Operating Nut,Gearbox
| NO. | Part | Material(ASTM) |
| 1 | Body | Ductile lron ASTM A536 |
| 2 | Wedge | Ductile lron EPDM/NBR Encapsulated |
| 3 | Wedge Nut | Brass ASTM B124 C37700 |
| 4 | Stem | Stainless Steel AISI 420 |
| 5 | Bonnet | Ductile lron ASTM A536 |
| 6 | Wedge Nut Gasket | Rubber NBR |
| 7 | Washers | Nylon/Brass ASTM B124 C37700 |
| 8 | O-ring | Rubber NBR |
| 9 | Gland | Ductile lron ASTM A536 |
| 10 | Operating Nut | Ductile lron ASTM A536 |
| 11 | Bonnet Gasket | Rubber NBR |
| 12 | Bonnet/Gland Bolt | CS With ZINC Plated/SS304 |
| 13 | Dust Cap | Rubber NBR |
| 14 | Top Bolts | CS With ZINC Plated/SS304 |
Detailed Images
