Home > Industrial Equipment & Components > Valve > Ball Valve > DIN3352/EN 1171 DN350-DN800 Big Size Resilient Seated Gate Valve

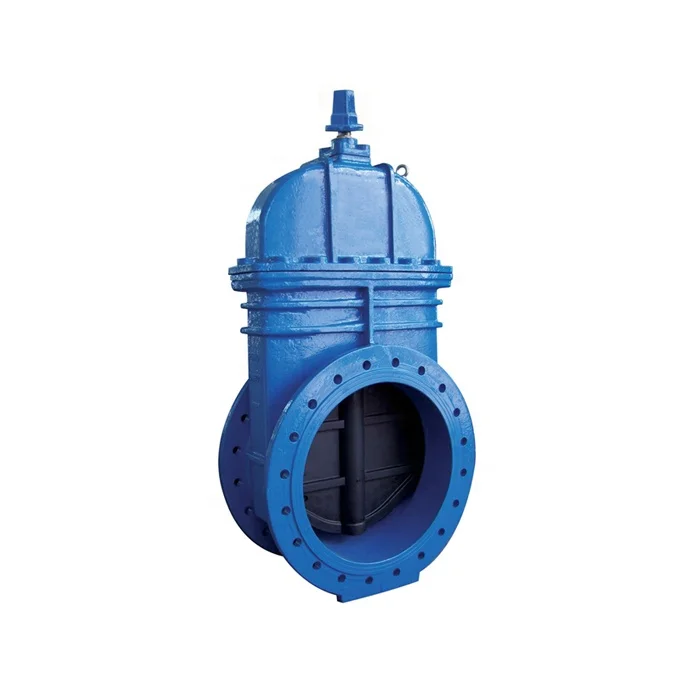

DIN3352/EN 1171 DN350-DN800 Big Size Resilient Seated Gate Valve
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SOLID
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN,QINGDAO,SHANGHAI
Delivery Detail:
15 days
Related Products
-
Awwa C509/515 Ductile Cast Iron Mechanical Connection Resilient Gate ValveNegotiableMOQ: 50 Pieces -
Awwa C515 Ductile Iron OS&Y Type Rising Stem Resilient Seat Flanged End Gate ValveNegotiableMOQ: 50 Pieces
-
Awwa Inside Screw Rising Long Stem Flanged Gate ValveNegotiableMOQ: 50 Pieces
-
Pn10/16 BS5163 Dinf4/F5 Nrs Resilient Seated Gate Valve With Flanged EndsNegotiableMOQ: 50 Pieces
-
Cast Iron Rising Stem Knife Gate Valve With Electric/Pneumatic DriveNegotiableMOQ: 50 Pieces
Brand Name
SOLID
Place of Origin
China
Product Description

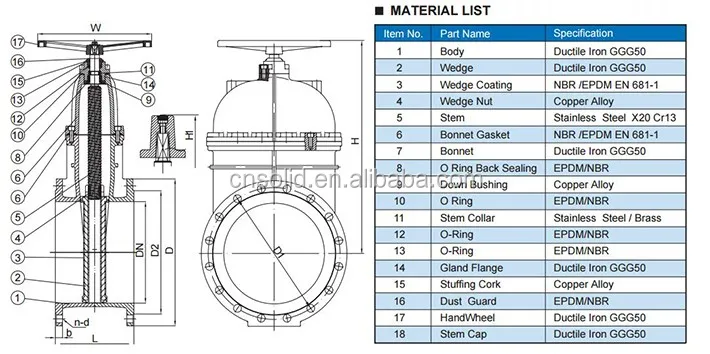

Features:
Bolted Bonnet Replaceable O-ring
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick Working pressure from -1 to +16 Bar and working temperature from -10 to +80 ºC
Technical Specification:

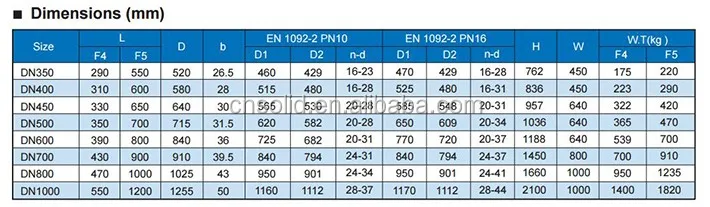

Valve design according to EN 1171,DIN3352,EN 1074-1 and 2 Face to face dimensions according to EN 558-1 , DIN3202 F4/F5 Standard flange drilling to EN 1092-2,ISO 7005-2
Hydraulic test according to EN 12266,ISO5208

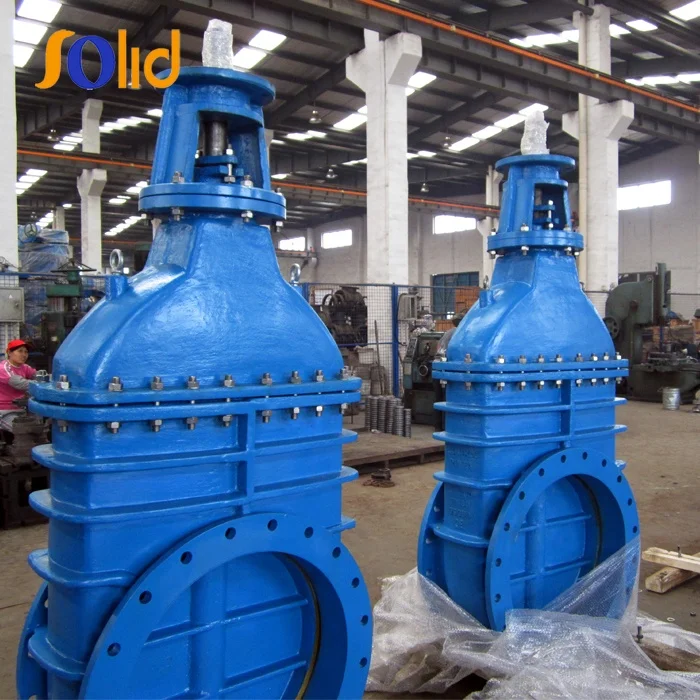

Detailed Images
