Home > Industrial Equipment & Components > Valve > Ball Valve > DIN 3352 F5 /EN 1171 Flanged Resilient Gate Valve With Non Rising Stem

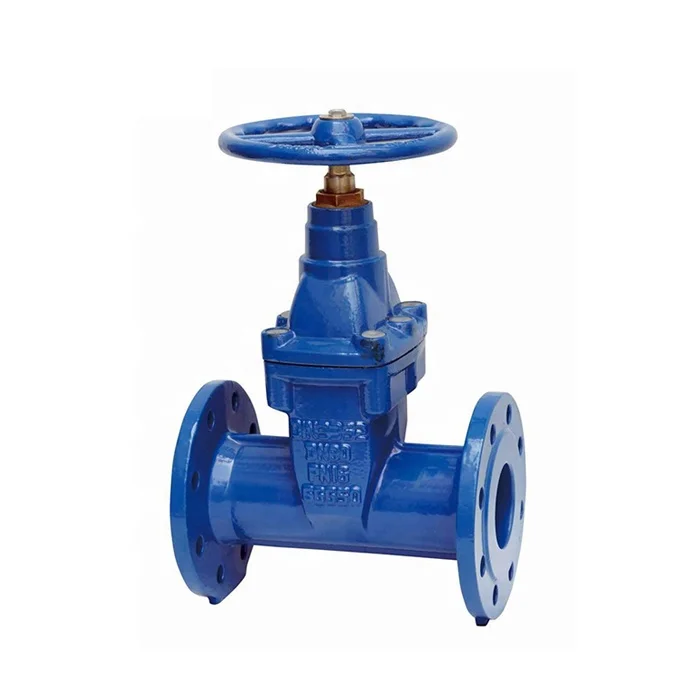

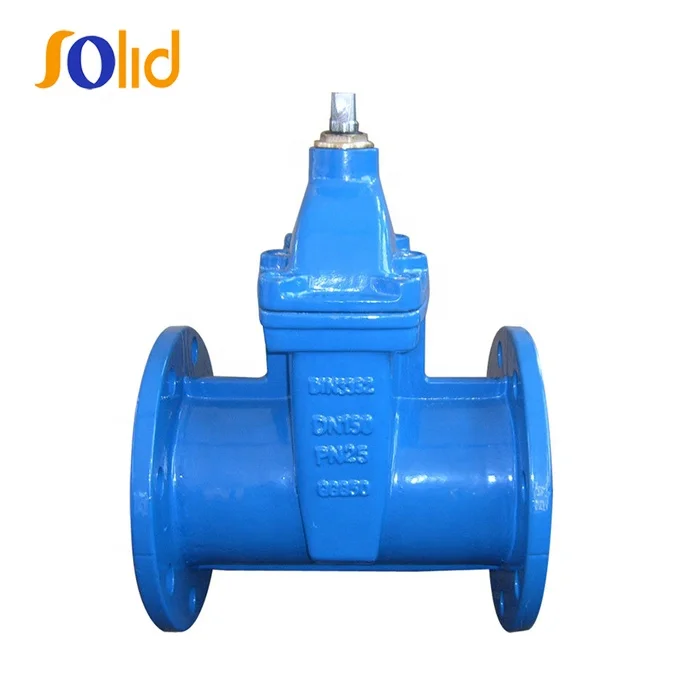

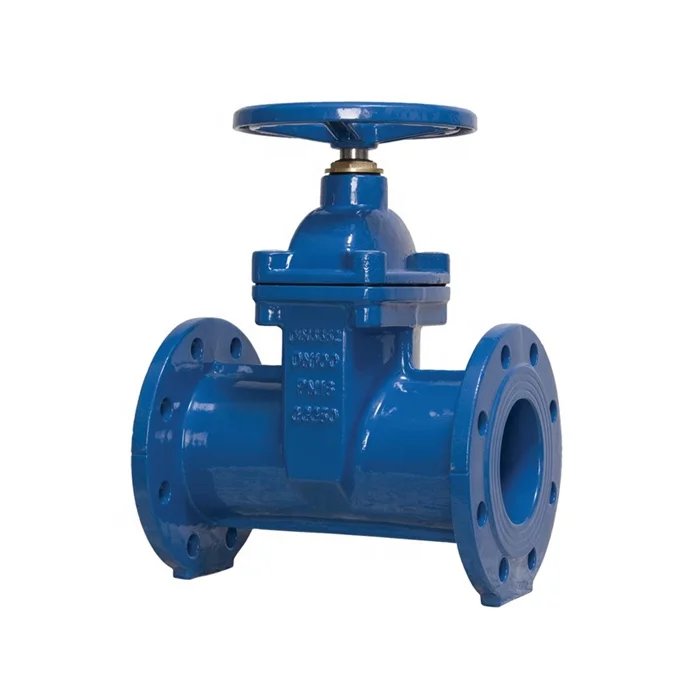

DIN 3352 F5 /EN 1171 Flanged Resilient Gate Valve With Non Rising Stem
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SOLID
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN,QINGDAO,SHANGHAI
Delivery Detail:
15 days
Related Products
-
DIN3352/EN 1171 DN350-DN800 Big Size Resilient Seated Gate ValveNegotiableMOQ: 50 Pieces -
Awwa C509/515 Ductile Cast Iron Mechanical Connection Resilient Gate ValveNegotiableMOQ: 50 Pieces
-
Awwa C515 Ductile Iron OS&Y Type Rising Stem Resilient Seat Flanged End Gate ValveNegotiableMOQ: 50 Pieces
-
Awwa Inside Screw Rising Long Stem Flanged Gate ValveNegotiableMOQ: 50 Pieces
-
Pn10/16 BS5163 Dinf4/F5 Nrs Resilient Seated Gate Valve With Flanged EndsNegotiableMOQ: 50 Pieces
Brand Name
SOLID
Place of Origin
China
Product Description
Design: EN1171, DIN3352, EN1074-1/2
Class: PN10 / 16 / 25
Face to Face: DIN3202 F5, EN558-1 Series 15
Flange: EN1092-2, ISO7005-2
Testing: EN12266 / ISO5208
Size: DN40- DN1200
DN40-DN300: PN10-16-25.
DN350-1200: PN10-16.
DN40-DN600: Wheel, Cap, Top flange free shaft, Gear box;
DN700-DN1200: Top flange free shaft, Gear box
Body: Ductile Iron EN- GJS- 500- 7;
Bonnet: Ductile Iron EN- GJS- 500- 7;
Wedge: Ductile Iron EN- GJS- 500- 7 Coated NBR /EPDM EN 681-1;
Wedge Nut: Copper Alloy;
Stem: Stainless Steel X20 Cr13, AISI304/316/431;
Bonnet Gasket: NBR /EPDM EN 681-1;
O-Ring: EPDM/NBR;
HandWheel: Ductile Iron EN- GJS- 500- 7;
Coating: FEB powder epoxy
Bonnet: Ductile Iron EN- GJS- 500- 7;
Wedge: Ductile Iron EN- GJS- 500- 7 Coated NBR /EPDM EN 681-1;
Wedge Nut: Copper Alloy;
Stem: Stainless Steel X20 Cr13, AISI304/316/431;
Bonnet Gasket: NBR /EPDM EN 681-1;
O-Ring: EPDM/NBR;
HandWheel: Ductile Iron EN- GJS- 500- 7;
Coating: FEB powder epoxy
