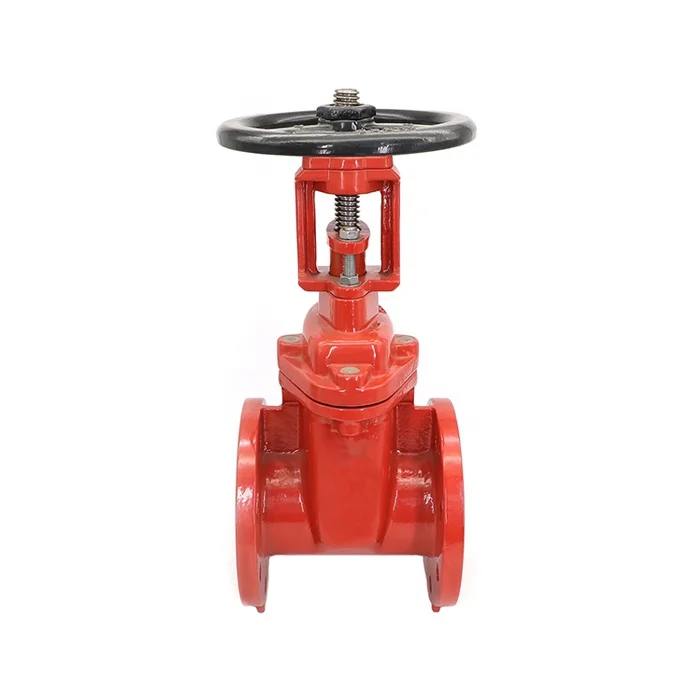

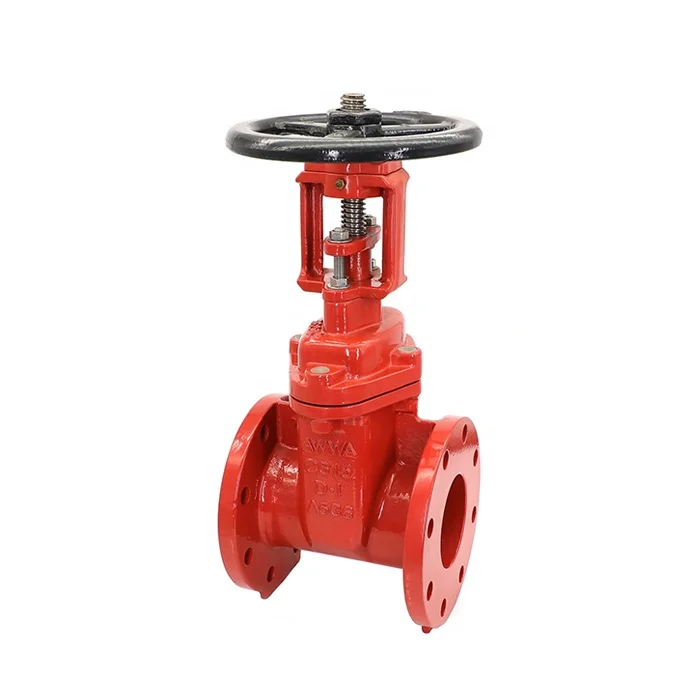

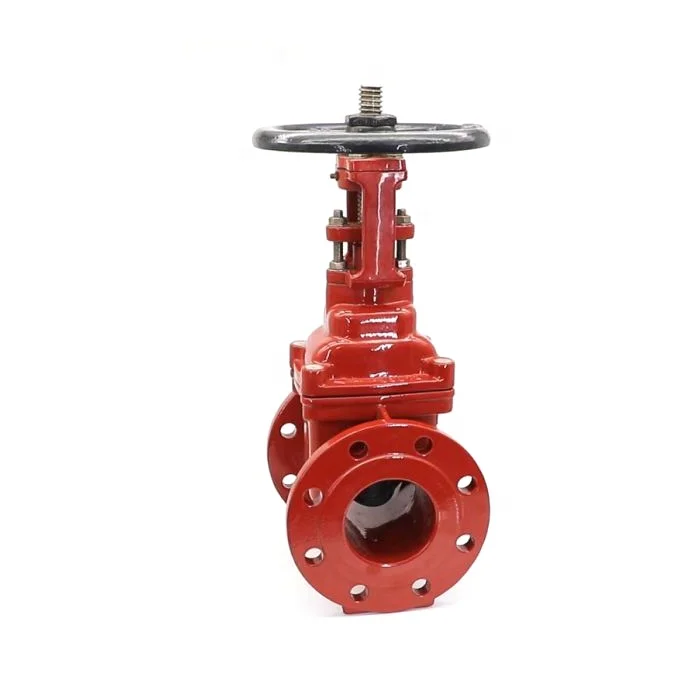

Awwa Inside Screw Rising Long Stem Flanged Gate Valve
Negotiable
/ Piece
50 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- TIANJIN,QINGDAO,SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
Pn10/16 BS5163 Dinf4/F5 Nrs Resilient Seated Gate Valve with Flanged Ends
-
Cast Iron Rising Stem Knife Gate Valve with Electric/Pneumatic Drive
-
DIN3352 F4 DI (GGG40/GGG50) Double Flanged End Metal Seal Gate Valve
-
PN16 DN75 Ductile Iron GGG50 Non Rising Stem Spigot Ends Resilient Seated Gate Valve
-
Red Color AWWA C509 Ductile Iron Flanged Ends NRS Resilient Seated Sluice Gate Valve Price
-
BS5163 Big Size DN500 Epoxy Coated Metal Seated by Pass Flanged Gate Valve
Product Details
| Brand Name | SOLID | Place of Origin | China |
Product Description
Product Description
Design Standard AWWA C515.
Non-Rising stem, Resilient Seated
Face to Face: ASME B16.10.
Flanges Standard: AWWA C110/A21.10,ASME B16.1 AWWA C515 (Other Flange Types available upon request)
Inspection & testing: AWWA C515.
Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550 Standard
Working Pressure:250PSI (200 and 300 PSI available on request)
Working Temperature:-20ºC to 100ºC(-4°F to 212°F)
Operator:Handwheel,2"Operating Nut,Gearbox
| No | Part | Material(ASTM) |
| 1 | Body | Ductile Iron ASTM A536 |
| 2 | Wedge | Ductile lron EPDM/NBR Encapsulated |
| 3 | Wedge Nut | Brass ASTM B124 C37700 |
| 4 | Stem | Stainless Steel AISI 420 |
| 5 | Bonnet | Ductile Iron ASTM A536 |
| 6 | Packing | Flexinle Graphite |
| 7 | Gland | Ductile Iron ASTM A536 |
| 8 | Yoke | Ductile Iron ASTM A536 |
| 9 | Stem Nut | Brass ASTM B124 C37700 |
| 10 | Handwheel | Ductile Iron ASTM A536 |
| 11 | PIN | Stainless Steel |
| 12 | Bonnet Gasket | Rubber NBR |
| 13 | Bonnet/Gland Bolt | CS With ZINC Plated/SS304 |
| 14 | Yoke Gland | Ductile Iron ASTM A536 |
| 15 | Handwheel Bolts | Ductile Iron ASTM A536 |

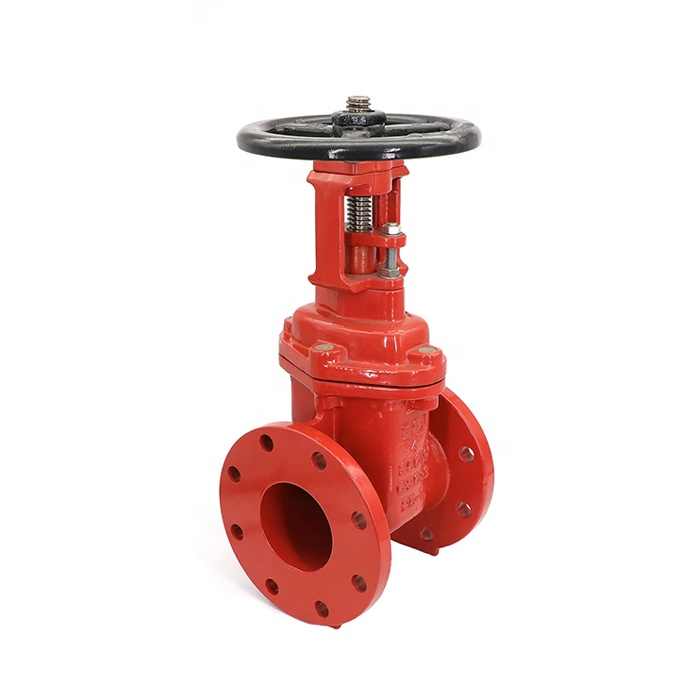

Detailed Images
