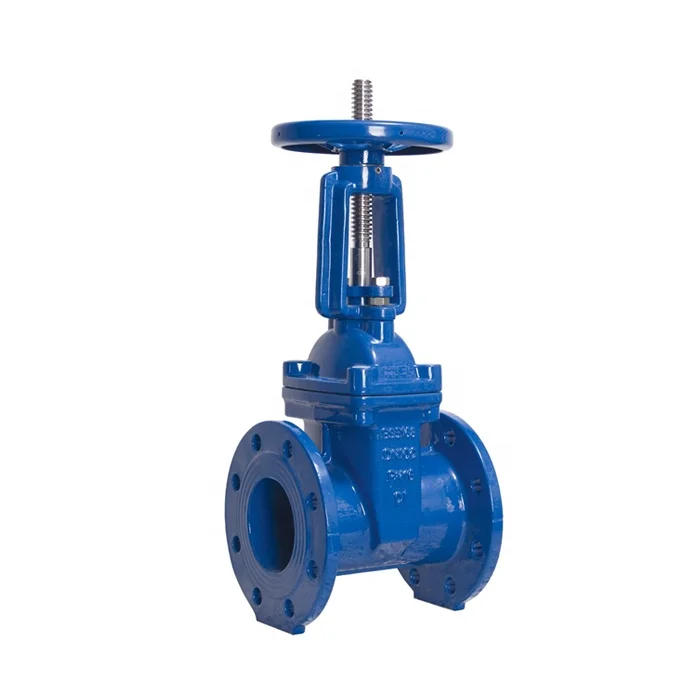

Factory Price BS5163/ EN 1171 PN25 Rising Stem Sluice Valve Resilient Seated Ductile Iron Gate Valve
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SOLID
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN,QINGDAO,SHANGHAI
Delivery Detail:
15 days
Related Products
-
DIN3352 PN10/16Non-Rising Stem Resilient Seated F4 Gate ValveNegotiableMOQ: 50 Pieces -
DIN 3352 F5 /EN 1171 Flanged Resilient Gate Valve With Non Rising StemNegotiableMOQ: 50 Pieces
-
DIN3352/EN 1171 DN350-DN800 Big Size Resilient Seated Gate ValveNegotiableMOQ: 50 Pieces
-
Awwa C509/515 Ductile Cast Iron Mechanical Connection Resilient Gate ValveNegotiableMOQ: 50 Pieces
-
Awwa C515 Ductile Iron OS&Y Type Rising Stem Resilient Seat Flanged End Gate ValveNegotiableMOQ: 50 Pieces
Brand Name
SOLID
Place of Origin
China
Product Description
Features:
Outside stem and yoke (OS&Y) Stem Seal with O-ring
Bolt bonnet, Full bore
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick Working pressure from -1 to +16 Bar and working temperature from -10 to +80 ºC
Technical Specification:
Valve design according to EN 1171,BS5163,EN 1074-1 and 2 Face to face dimensions according to BS5163,EN 551-1 Series 13 Hydraulic test according to EN 12266,ISO5208
Standard flange drilling to EN 1092-2,ISO 7005-2
Outside stem and yoke (OS&Y) Stem Seal with O-ring
Bolt bonnet, Full bore
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick Working pressure from -1 to +16 Bar and working temperature from -10 to +80 ºC
Technical Specification:
Valve design according to EN 1171,BS5163,EN 1074-1 and 2 Face to face dimensions according to BS5163,EN 551-1 Series 13 Hydraulic test according to EN 12266,ISO5208
Standard flange drilling to EN 1092-2,ISO 7005-2

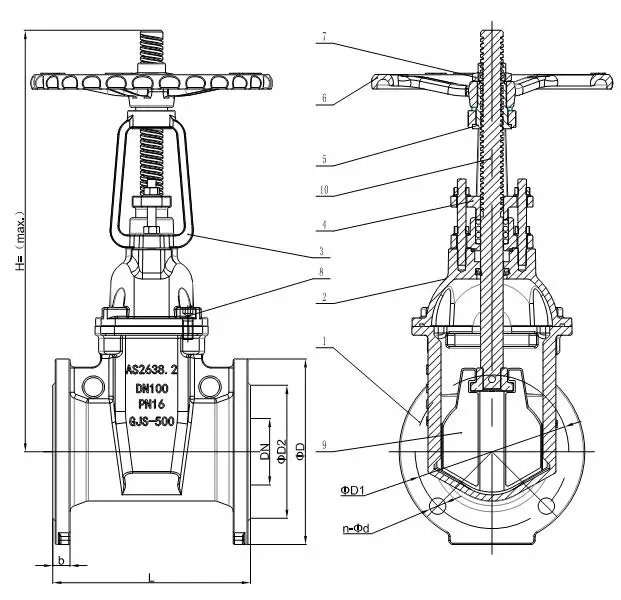

1 |
Body |
Cast iron/Ductile iron |
2 |
Bonnet |
Cast iron/Ductile iron |
3 |
Wedge |
Ductile iron with NBR/EPDM |
4 |
Stem |
2Cr13 |
| DN | D | D1 | D2 | n-d | b | L | H |
|---|---|---|---|---|---|---|---|
| 50 | 150 | 114 | 90 | 4-18 | 18 | 178 | 373 |
| 65 | 165 | 127 | 103 | 4-18 | 18 | 190 | 378.5 |
| 80 | 185 | 146 | 122 | 4-18 | 18 | 203 | 450 |
| 100 | 215 | 178 | 154 | 4-18 | 20 | 229 | 484 |
| 150 | 280 | 235 | 211 | 8-18 | 23 | 267 | 634 |
| 200 | 335 | 292 | 268 | 8-18 | 23 | 292 | 779 |
| 250 | 405 | 356 | 328 | 8-22 | 24 | 330 | 932 |
| 300 | 455 | 406 | 378 | 12-22 | 30 | 356 | 1071 |
Detailed Images
