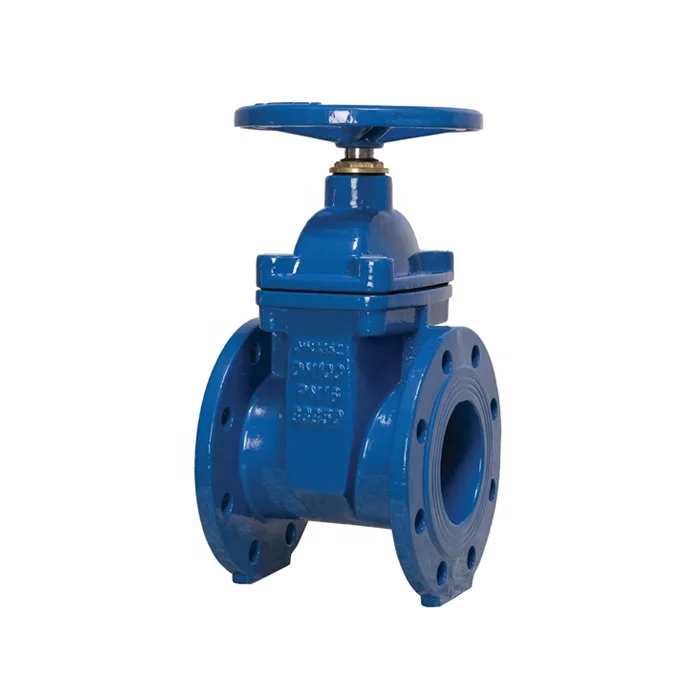

DIN3352 PN10/16Non-Rising Stem Resilient Seated F4 Gate Valve
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SOLID
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN,QINGDAO,SHANGHAI
Delivery Detail:
15 days
Related Products
-
DIN 3352 F5 /EN 1171 Flanged Resilient Gate Valve With Non Rising StemNegotiableMOQ: 50 Pieces -
DIN3352/EN 1171 DN350-DN800 Big Size Resilient Seated Gate ValveNegotiableMOQ: 50 Pieces
-
Awwa C509/515 Ductile Cast Iron Mechanical Connection Resilient Gate ValveNegotiableMOQ: 50 Pieces
-
Awwa C515 Ductile Iron OS&Y Type Rising Stem Resilient Seat Flanged End Gate ValveNegotiableMOQ: 50 Pieces
-
Awwa Inside Screw Rising Long Stem Flanged Gate ValveNegotiableMOQ: 50 Pieces
Brand Name
SOLID
Place of Origin
China
Product Description
Features:
Bolted Bonnet
Replaceable O-ring
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside, blue RAL 5017 ≥ 250 Micron thick
Working pressure from -1 to +16 Bar and working temperature from -10 to +80 ºC
Technical Specification:
Valve design according to EN 1171,DIN3352,EN 1074-1 and 2
Face to face dimensions according to EN 558-1 Series 14/15, DIN3202 F4/F5
Standard flange drilling to EN 1092-2,ISO 7005-2
Hydraulic test according to EN 12266,ISO5208
Bolted Bonnet
Replaceable O-ring
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside, blue RAL 5017 ≥ 250 Micron thick
Working pressure from -1 to +16 Bar and working temperature from -10 to +80 ºC
Technical Specification:
Valve design according to EN 1171,DIN3352,EN 1074-1 and 2
Face to face dimensions according to EN 558-1 Series 14/15, DIN3202 F4/F5
Standard flange drilling to EN 1092-2,ISO 7005-2
Hydraulic test according to EN 12266,ISO5208
1 |
Body |
Cast iron/Ductile iron |
2 |
Bonnet |
Cast iron/Ductile iron |
3 |
Wedge |
Ductile iron with NBR/EPDM |
4 |
Stem |
2Cr13 |
Face to face is according to DIN3202-F4 |
Flange drilled is according to DIN2532/2533 |
