Wide Temperature Industrial Computer With Intel E3845 Processor for Network Application

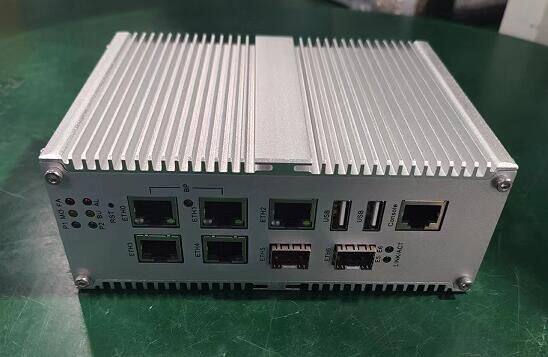

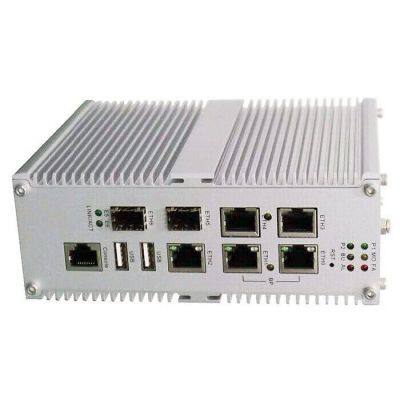

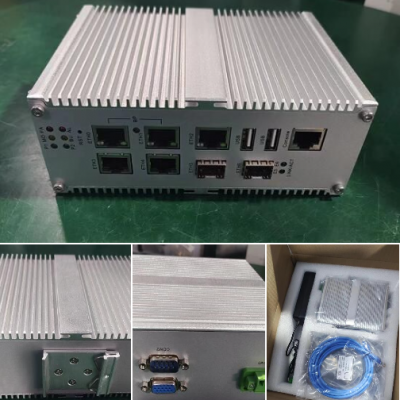

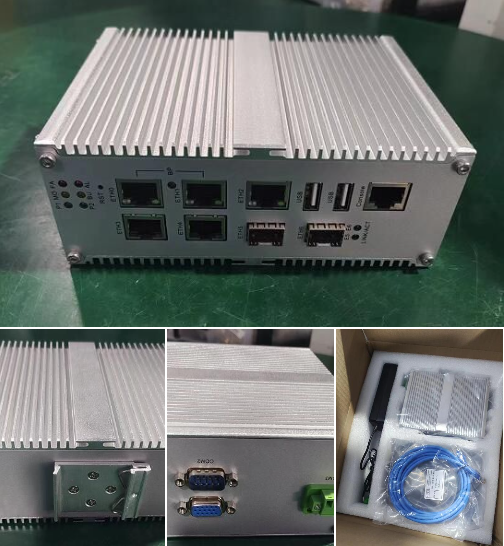

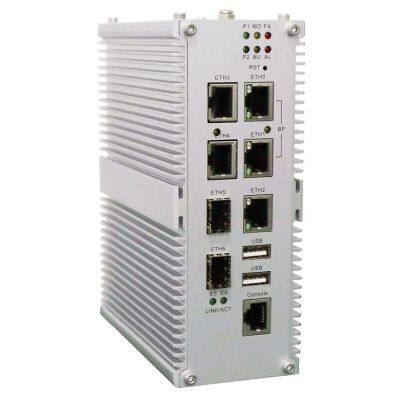

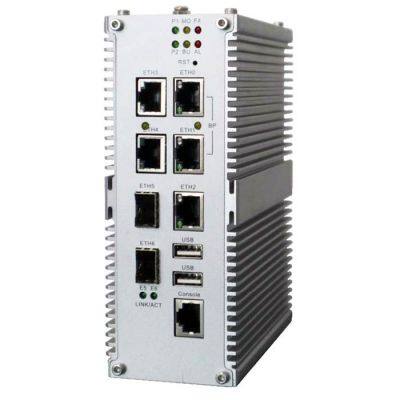

F19308 is a Din rail industrial PC, Wide-temperature, for Industries network application appliance, high reliability, small size support DIN-RAIL type installation. onboard Intel® E3845 processor, 5 RJ-45 GbE network ports and 2 SFP GbE network ports,RS485 & RS232 One mSATA interface, Dual 9-36V DC in.

They are widely used in industrial automation systems such as smart energy, electricity, transport ports to control and manage field data. and can be used for data collection and transmission in information systems, security systems, and behavior processing systems.

• Onbaord Intel low-power Atom quad-core E3845 processor, 1.91GHz, 2MB cache

• One 204pin 1600MHz DDR3L RAM, max 8GB RAM

• Five Gigabit Ethernet ports, support one channel LAN BYPASS

• Two SFP Gigabit network ports with led indicator

• One RJ-45 Console serial port, one RS-485 isolated phoenix interface

• Two USB2.0, mSATA storage

• Two 9~36VDC wide voltage DC inputs, with alarm for power failure

• Multi-function LED indicators , support  customize according to requirements

• Fanless thermally conductive aluminum extrusion to support wide temperature working

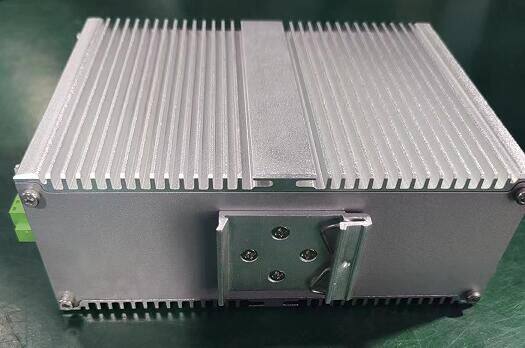

• Support DIN-RAIL rail type installation

• Widely used in  industrial-application environments

• CPU   Onboard Intel Atom 32nm quad-core E3845 1.91GHz processor with 2MB L2 cache

• BIOS   SPI FLASH BIOS

• System memory   Max 4GB RAM

• Interface   One SATA Interface

• SSD   MAX 512G industrial m SATA SSD

• CF slot   None

• LAN Port Rj45 Five 10/100/1000Mbps RJ45 network interfaces


• LAN prot SFP Two SFP GBE ports


• BYPASS Suppoer one channel LAN BYPASS


• Indicator With LAN link, active, speed LED, built-in BYPASS status LED

• USB Two USB2.0

• COM One RJ-45 COM console

• Indicator One Power LED, one HDD LED

• Display One built-in VGA interface, supports hot plug, maximum resolution support 2048x1536

• USB Two USB2.0 Pin interface

• Button One built-in reset button

• COM One RS232 DB9 interface, One RS-485(3-pin phoenix interface)

• TPM One TPM interface

• DIO 8 digital level input and output interfaces (4 inputs, 4 outputs)

• Watchdog 1~255 seconds programmable software watchdog, support system reset

• 4G module Optional One full Netcom 4G module, external SIM slot

• Power consumption 60W power adapter

• Power input Dual 9 ~ 36V wide range DC input

• Mounting Support DIN-RAIL rail type installation

• Operate Temperature -40°C ~ 70°C

• Storage Temperature -50°C ~ 85°C

• Operate Humidity 5% ~ 85% non-condensing @ 40°C

• Storage Humidity 5% ~ 95% non-condensing

• Chassis Color Silver and Blue

• Front panel Front panel silk-screen [Customized LOGO optional]

• Construction Aluminum extrusion chassis

• Dimensions (D x W x H) 158.1x122x60.8 mm

• Weight 3.0 kg
