Network Security Appliance Hardware Platform Supports 64G RAM Max 10 Gigabit Network Ports

Network security system hardware appliance supports the 6/7th generation Intel Core processors

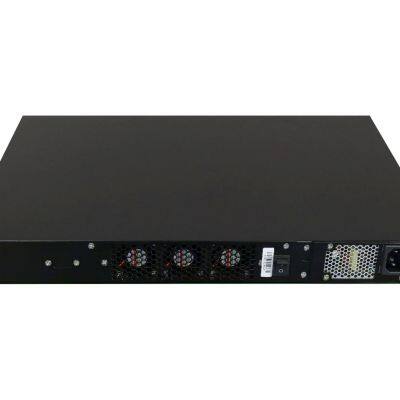

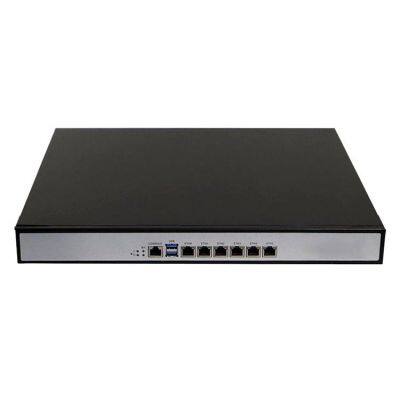

F23611 is an 1U rackmount network security system application hardware appliance, use network application motherboard based on Intel® C236, supports the 6/7th generation Intel Core processors (codenamed Kaby Lake). up to 64G DDR4 RAM, The high performance and I/O rich appliance is developed for #networksecurity, #cloudcomputing #datacenters.

Features

Supports Sky Lake Intel LGA1151 Socket Xeon E3-1200V5, Gen 6/7th i3 i5 i7 Core, Pentium processor

Intel C236 chipset

Two dual-channel 1866/2133MHz DDR4 slots, up to 64 GB

Six Intel PCIe GbE controllers(i210-AT)

One HDD trays and Three SATA 6Gb/s support RAID0, 1, 5, 10

Supports USB3.0, MSATA, CF TypeII, COM

Supports add one NIC model for more Intel GbE network ports

Ordering informations

F23611-B21u rackmount chassis, C236 Chipset, 6 x GbE RJ45, 2 channels bypass, 250W PSU

F23611-B2P21u rackmount chassis, C236 Chipset, 6 x GbE RJ45, 2 channels bypass, 350W redundant PSU

Optional Nic Modules

58N44 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers

58F44 GBE SFP LAN ports Nic module LAN card based on Intel 82580EB controllers

58NF22 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel 82580EB controllers

58N88 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers

58F88 GBE SFP LAN ports Nic module LAN card based on Intel 82580EB controllers

58B22 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass

59W22 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers

59B22 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass

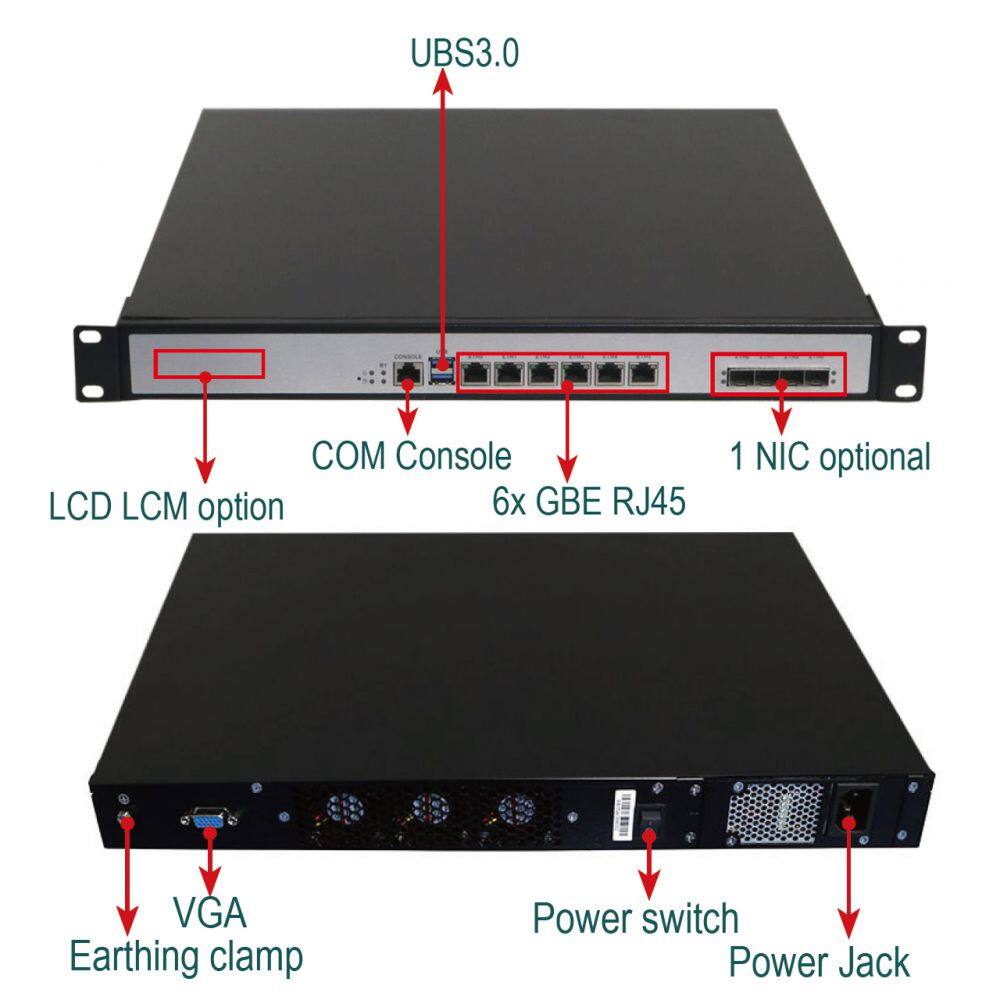

The F23611 is a 1U network security system or UTM firewall hardware now upgraded with the 6th/7th generation Intel Core processors (codenamed Kaby Lake). Depending on the SKUs, there are various Ethernet connectivity options available. This high performance and I/O rich appliance is developed for network security, cloud computing and data centers.

CPU Supports Intel Gen6/Gen7 Xeon E3-1200 i3/i5/i7 Core, Pentium processor
Chipset Intel C236
System memory Two 2133/2400MHz DDR4 slots, up to 64GB

Interface Two SATA3.0 connectors and one mSATA slot
Hard Drive Supports two 3.5/2.5" HDD trays

LAN Port Six 10/100/1000Mbps RJ-45 ports
Ethernet Controller Six Intel PCIe GbE controllers
BYPASS Optional 2 channels BYPASS
Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED

USB Two USB3.0
COM One RJ-45 COM
Indicator One Power LED, one HDD LED
LCM module Optional 2x16 characters LCM display module
Video Built-in one VGA interface, support hot plug(Internal)
Expansion One PCIex16

Power consumption Built-in 250W power supply
Power input 100 ~ 240V AC input
Optional DC power or Redundant power
