Home > Products > IEC Test Finger Probes > IEC 60335-2-24 Scratch Test Pin
IEC 60335-2-24 Scratch Test Pin
USD $60 - $500
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- Shenzhen
- T/T PayPal
- 3 days
You May Like
-
IEC60335-2-24 Test Sphere with 75mm Diameter
-
IEC60335-2-80 Figure 102 Fan Test Pin
-
IEC60601-1 Test Probe Kits includes Jointed Finger Probe Test Probe 13, Test Hook and Ball Pressure Test Apparatus
-
IEC60884-1 Test Probes for Socket-outlet no-accessibility of live parts test gauges through shutters
-
IEC60950-1 Test Probe Kits includes Jointed Finger Probe Test Probe 13, TVN Test Probe and Wedge Probe
-
IEC 61032 Figure 6 12.5mm Test probe 2
Product Details
| Brand Name | Pego | Place of Origin | China | |
| Model Number | PG-STP24 |
Product Description

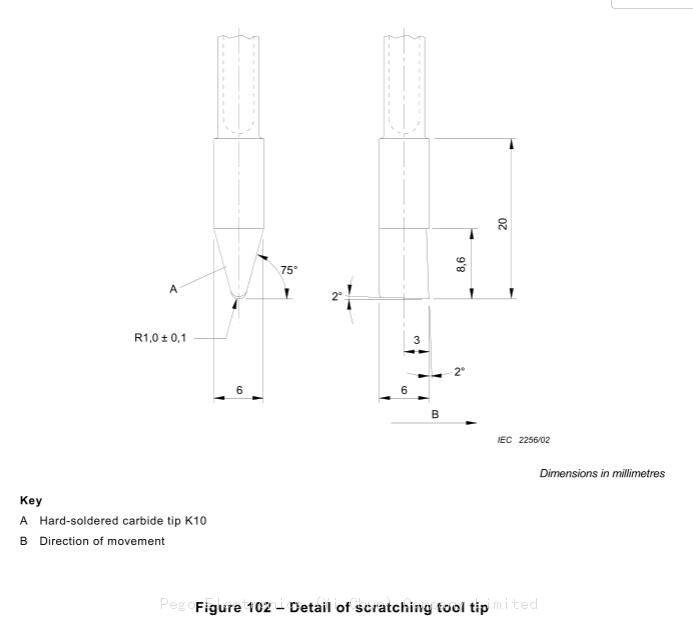

IEC60335-2-24 Scratch Test PinThe scratch test pin is designed according to IEC60335-2-24 fig. 102 and GB4706.13 Fig 102. It’s used to perform scratch tests on the accessible component surfaces of all protected cooling systems in appliances, including accessible surfaces that are in close contact with the protected cooling system.
Parameters:
Radius of Tip | 1mm |
Diameter of Tip | 6mm |
Length of Tip | 8.6mm |
Length of Pin | 20mm |
