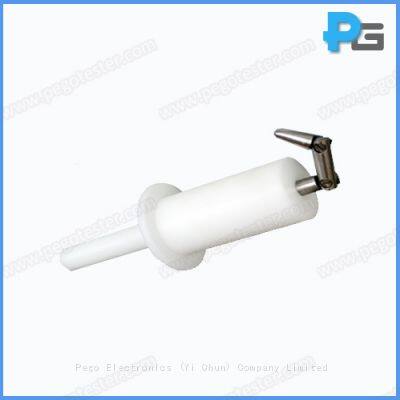

IEC60335-1 Similar Test Probe B with 50mm Circular Stop Face
USD $60 - $1000
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- Shenzhen
- T/T PayPal
- 3 days
You May Like
-
IEC60335-1 Figure 13 Small Parts Cylinder
-
IEC60335-2-11 Figure 101 Test Probe for Measuring Surface Temperatures
-
IEC 60598-1 figure 29 Test Chain made by 63% Cu and 37% Zn
-
ISO 15717 Test hammer for Fragmentation Test of Glass with 75g Mass
-
IEC 60065 Figure 9 Test plug for Antenna Coaxial Socket
-
IEC60335-2-25 Figure 101 Test Rod for Interlock Concelament
Product Details
| Brand Name | Pego | Place of Origin | China | |
| Model Number | PG-TPB-1 |
Product Description
1. Introduction

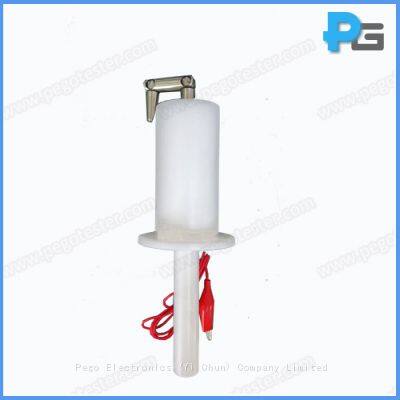

Similar test probe B is designed to meet the test requirements of IEC60335-1 clause 20.2, the finger part is same as the test probe B of IEC61032, but having a circular stop face with a diameter of 50mm. The recommend force applied is 5N. The finger part has two active joints that can bend in 90 degrees and made of stainless steel, the handle made of insulating material can customized with terminals or M6 threaded hole to work with force gauge to apply force.
2. Specification
Model | PG-TPB-1 |
Jointed point size 1 | 30±0.2 |
Jointed point size 2 | 60±0.2 |
Length of finger | 80±0.2 |
Fingertip to baffle size | 180±0.2 |
Fingertip taper fillet | S4±0.05 |
Diameter of finger | Ф12 0 -0.05 |
Diameter of baffle | Ф75±0.2 |
Thickness of baffle | 5±0.5 |
A-A section diameter | Ф50 |
A-A section width | - |
Thruster | 0N, 5N optional |
Standard | IEC60335-1 |
