Home > Products > IEC Test Finger Probes > IEC62368-1 Steel Disc & Aluminum Ring & Aluminum Foil
IEC62368-1 Steel Disc & Aluminum Ring & Aluminum Foil
USD $60 - $1000
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- Shenzhen
- T/T PayPal
- 3 days
You May Like
Product Details
| Brand Name | Pego | Place of Origin | China | |
| Model Number | PG-FNO |
Product Description

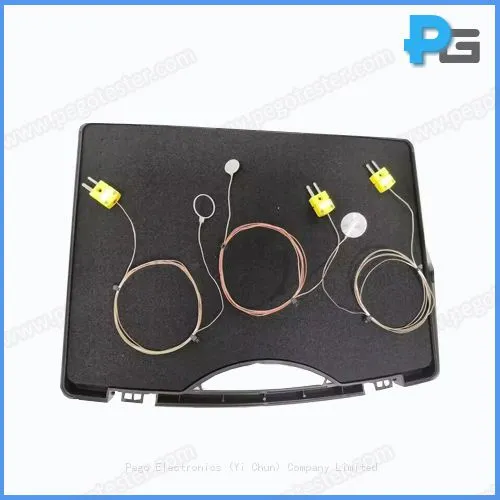

IEC62368-1 Steel Disc & Aluminum Ring & Aluminum Foil
Introduction:

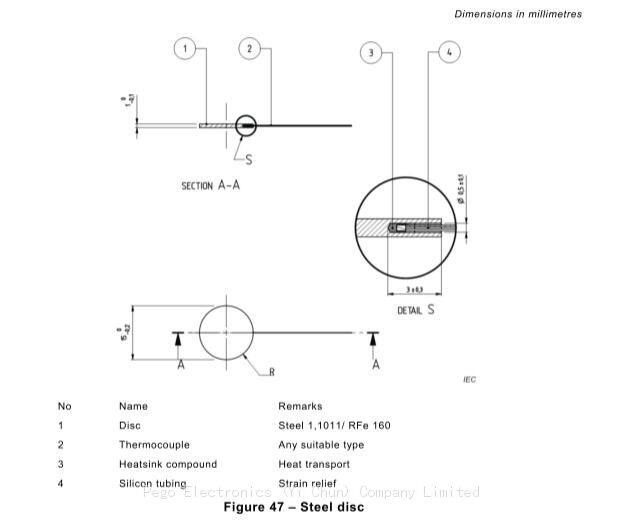

The steel disc is designed according to IEC62368-1 figure 47, the disc is made of steel 1.1011/RFe 160, and configure with K type thermocouple, the end of thermocouple equip with plug.

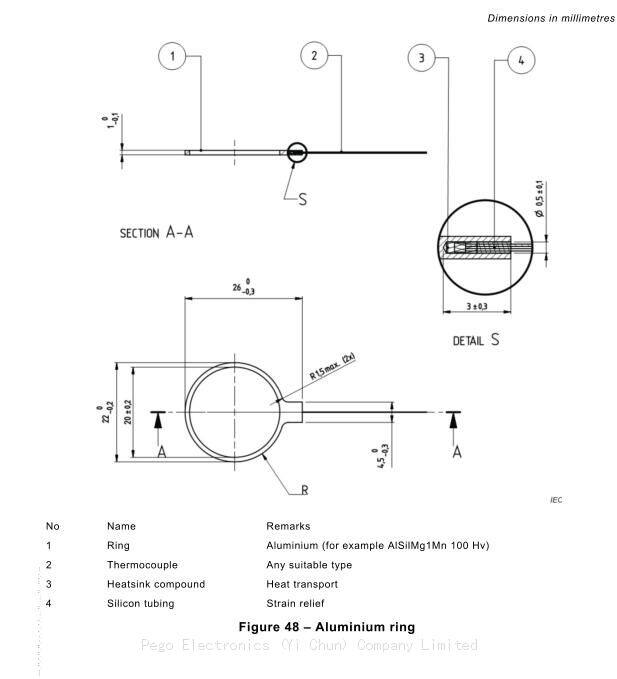

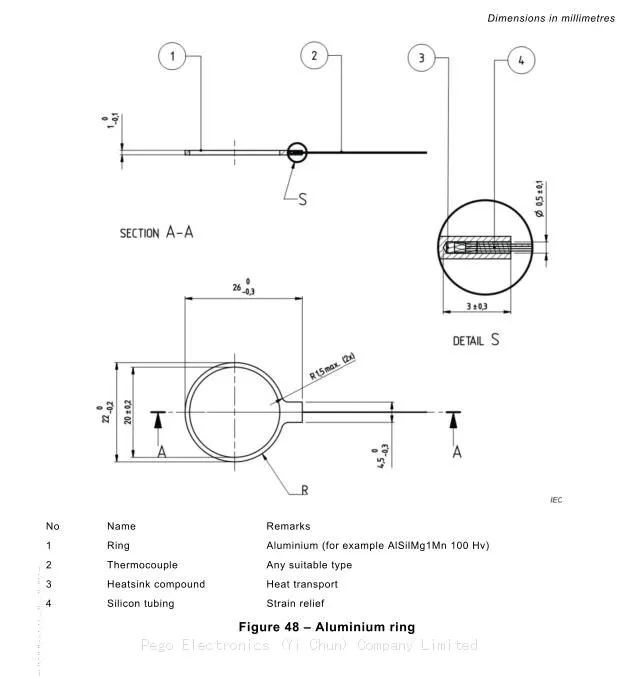

The aluminum Ring is designed according to IEC62368-1 figure 48, the ring is made of aluminum, and configure with K type thermocouple, the end of thermocouple equip with plug.

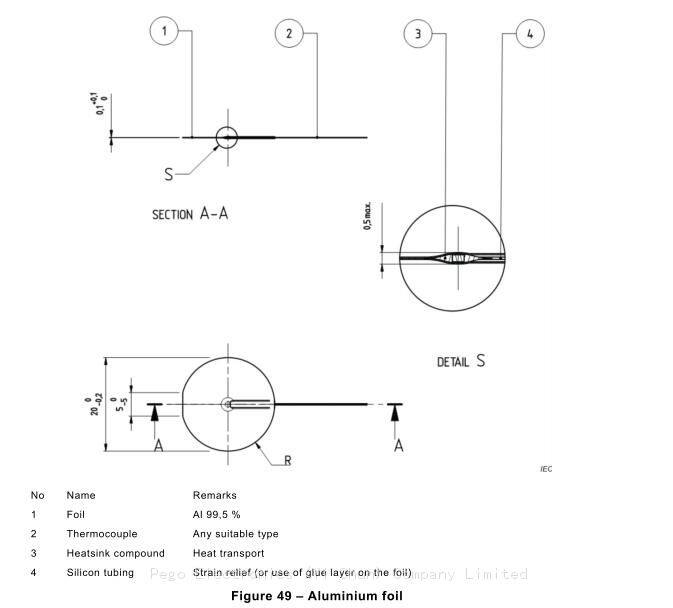

The Aluminium Foil is designed according to IEC62368-1 figure 49, the ring is made of 99.5% aluminum, and configure with K type thermocouple, the end of thermocouple equip with plug.
