IEC61032 Figure 13 Child Finger Test Probe 19 With 5.6mm Diameter

Pego Electronics (Yi Chun) Company Limited
IEC61032 Figure 13 Child Finger Test Probe 19 With 5.6mm Diameter thumbnail-1
IEC61032 Figure 13 Child Finger Test Probe 19 With 5.6mm Diameter photo-1
US$ 60 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Pego
Place of Origin:
China
Model Number:
PG-TP19
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Pego
Place of Origin China
Model Number PG-TP19

IEC61032 Figure 12 Child Finger Test Probe 19 with 5.6mm Diameter

1. Introduction:

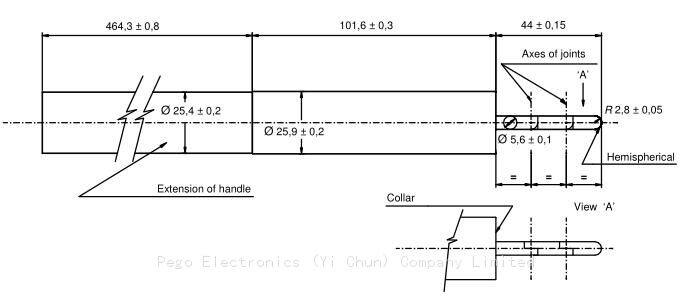

Test probe 19 (small finger probe: Φ5.6-length 44)  is designed according to IEC61032 figure 13, this is an access probe intended to simulate access to hazardous parts by children of 36 months or less.  The handle is provided with an extension 464.3mm long, and it is detachable to applied with or without this extension, whichever is the more onerous condition. The extension of the handle represents of the arm of child. Both joints shall permit movement in the same plane and the same direction through an angle of 90°


2. Specification:

Diameter of probe

5.6mm

Semi-diameter of probe

2.8mm

Length of probe

44mm

Diameter of first handle

25.9mm

Length of first handle

101.6mm

Diameter of second handle

25.4mm

Length of second handle

464.3mm

Material

Insulating material (handle), probe (metal)
