IEC61032 Figure 12 Child Finger Test Probe 18 With 8.6mm Diameter

Pego Electronics (Yi Chun) Company Limited
IEC61032 Figure 12 Child Finger Test Probe 18 With 8.6mm Diameter thumbnail-1
IEC61032 Figure 12 Child Finger Test Probe 18 With 8.6mm Diameter thumbnail-2
IEC61032 Figure 12 Child Finger Test Probe 18 With 8.6mm Diameter photo-1

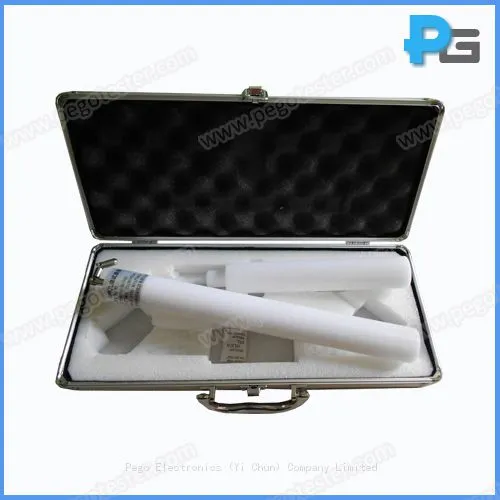

IEC61032 Figure 12 Child Finger Test Probe 18 With 8.6mm Diameter photo-2
US$ 60 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Pego
Place of Origin:
China
Model Number:
PG-TP18
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Pego
Place of Origin China
Model Number PG-TP18

IEC61032 Figure 12 Child Finger Test Probe 18 with 8.6mm Diameter

1. Introduction:

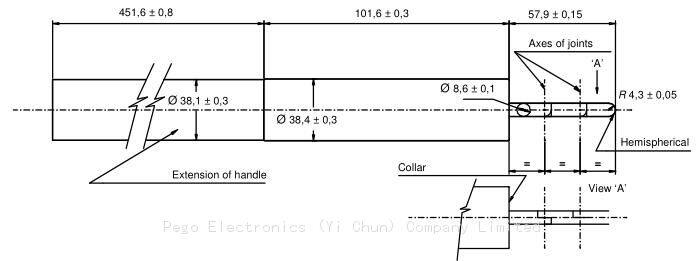

Test probe 18 (small finger probe: Φ8.6-length 57.9)  is designed according to IEC61032 figure 12, this is an access probe intended to simulate access to hazardous parts by children of more than 36 months and less than 14 years. The handle is provided with an extension 451.6mm long, and it is detachable to applied with or without this extension, the extension of the handle represents of the arm of child. Both joints shall permit movement in the same plane and the same direction through an angle of 90°


2. Specification:

Diameter of probe

 8.6mm

Semi-diameter probe

4.3mm

Length probe

57.9mm

Diameter of first handle

38.4mm

Length of first handle

101.6mm

Diameter of second handle

38.1mm

Length of second handle

451.6mm

Material

insulating material (handle), metal (probe)
