Home > Instruments & Meters > Test Instrument > Test Machine > IEC61032 Figure 7 Unjointed Test Finger Probe 11 With 50N Thruster

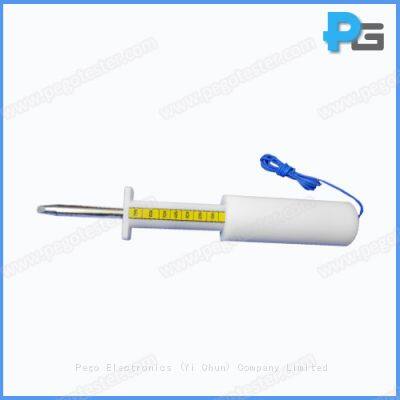

IEC61032 Figure 7 Unjointed Test Finger Probe 11 With 50N Thruster
US$ 60 - 500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Pego
Place of Origin:
China
Model Number:
PG-TP11
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
3 days
Related Products
-
IEC61032 Test Probe 12US$ 60 - 500MOQ: 1 Piece -
IEC61032 Figure 9 Short Test Pin Probe 13US$ 60 - 500MOQ: 1 Piece
-
IEC61032 Figure 10 Test Probe 14US$ 60 - 500MOQ: 1 Piece
-
IEC61032 Figure 11 Test Probe 17US$ 60 - 500MOQ: 1 Piece
-
IEC61032 Figure 12 Child Finger Test Probe 18 With 8.6mm DiameterUS$ 60 - 500MOQ: 1 Piece
Brand Name
Pego
Place of Origin
China
Model Number
PG-TP11
1. Introduction:
It is designed according to IEC61032 figure 7 and UL clauses. This probe may be used to verify the protection of persons against access to hazardous parts, and to verify the mechanical strength of openings in the enclosure or internal barriers.

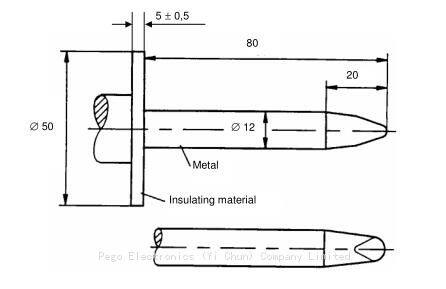

2. Specification:
diameter of test finger | 12mm |
Length of test finger | 80mm |
Diameter of baffle | 50mm |
Thickness of baffle: | 5mm |
Strength range | 10N, 20N, 30N, 40N, 50N |
Material | insulating material, metal |
