Home > Products > IEC Test Finger Probes > Interlock Concealment Test Probe IEC60335-2-25 Fig 101
Interlock Concealment Test Probe IEC60335-2-25 Fig 101
US$ 60 - 1000
/ Piece
1 Piece(Min. Order)
- Shenzhen
- T/T PayPal
- 3 days
You May Like
-
UL982 UL Test Rod Probe
-
IEC60950 clause 2.10.8.4 Hardened Steel Pin
-
IEC60335-1 Similar Test Probe B with 50mm Circular Stop Face
-
IEC60335-1 Figure 13 Small Parts Cylinder
-
IEC60335-2-11 Figure 101 Test Probe for Measuring Surface Temperatures
-
IEC 60598-1 figure 29 Test Chain made by 63% Cu and 37% Zn
Product Details
| Brand Name | Pego | Place of Origin | China | |
| Model Number | PG-TRD |
Product Description
1. Introduction
The interlock concealment test probe is designed according to IEC60335-2-25 clause 22.105 and figure 101, it is applied to microwave oven.
2. Parameter
Diameter of test rod | Φ3mm |
Diameter of handle | Φ10mm |
Length of rod | 100mm |
Standard | IEC60335-2-25 |

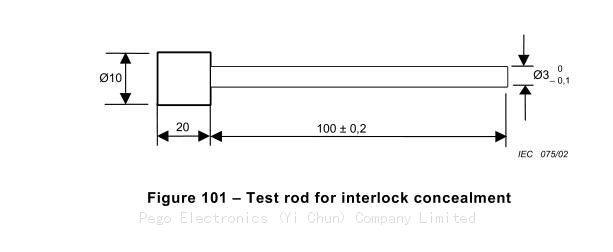

3. Figure
