IEC 60065 Figure 9 Test plug for Antenna Coaxial Socket
- 100 Piece / Pieces per Month
- Shenzhen
- T/T PayPal
- 3 days
You May Like
-
IEC60335-2-25 Figure 101 Test Rod for Interlock Concelament
-
UL60335-2-24 Articulated Probes
-
IEC60335-2-14 8mm Diameter Cylindrical Rod Test Probe for Blender
-
IEC60335-2-14 φ40mm Cylindrical rod Test Probe
-
IEC60335-2-30 Φ75mm Cylindrical rod Test Probe
-
45VAC Electrical Control Panel for Accessability IPX Probe
Product Details
Brand Name | Pego | Place of Origin | China | |
Model Number | PG-TTP |
Product Description

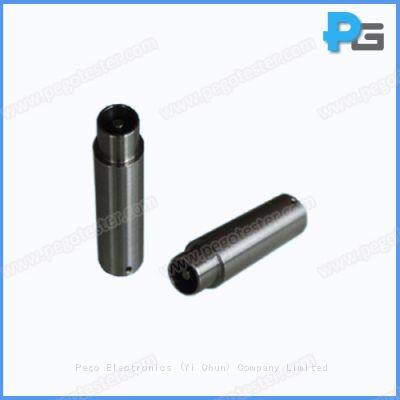

IEC 60065 Figure 9 Test plug for Antenna Coaxial Socket
1. Introduction
The test plug is designed according to IEC60065 figure 9, it is applied to test the antenna coaxial socket of live parts, and it should endure the mechanical strength during the endurance test, impact test, torque test and etc.
2. Specification
● Length j: 43±0.4mm
● Length g: 40±0.4mm
● Depth d: 9.1mm
● Depth e: 7.112mm
● Depth f: 0.8±0.4mm
● Outer diameter h: 12±0.4mm
● Outer diameter a: 9.576mm
● Outer diameter b: 8.05mm
● Shaft diameter c: 2.438mm
● Radius K: 0.3mm
● Hole Diameter: 1.5mm
● Material: steel
● Standard: IEC60065-2005 figure 9, GB8898-2011 figure 9
