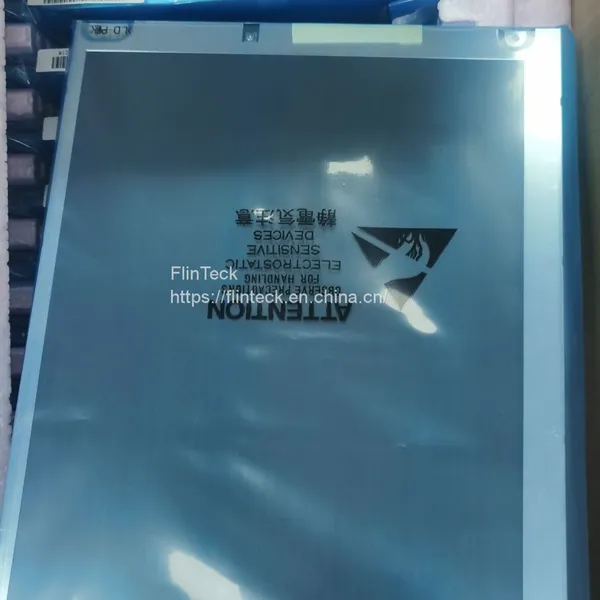

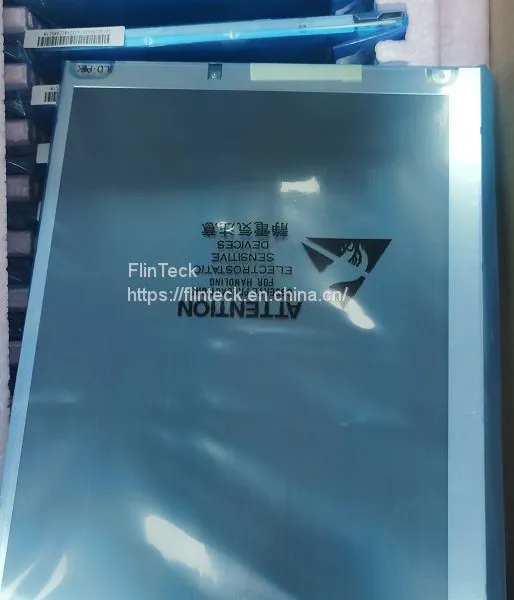

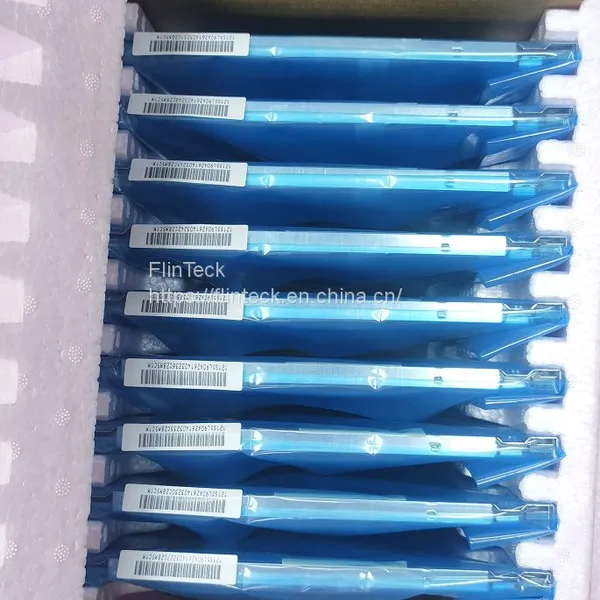

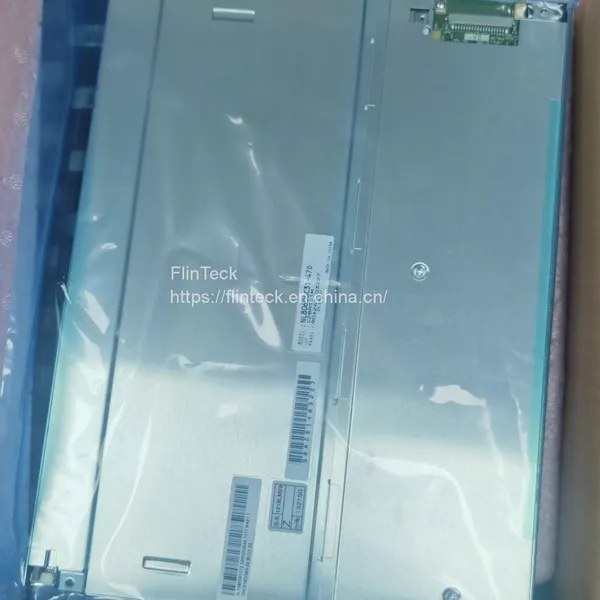

Help CenterNEC 12.1 Inches NL8060BC31-47D
Related Products
Panel brand NEC (NEC)
Panel model NL8060BC31-47D
Panel size 12.1 inches
Panel type a-Si TFT-LCD, LCD module
800(RGB)×600, SVGA, 82PPI pixel layout RGB vertical stripes.
Display area 246(W)×184.5(H) mm
The external dimension is 280 (w) × 210 (h) × 9.6 (d) mm.
Opening area is 249.0 (w) × 187.5 (h) mm.
Surface treatment fog surface, Hard coating (3H)
The display brightness is 450 cd/m² (Typ.)
Contrast ratio 900:1 (Typ.) (transmission)
Recommended viewing angle 6 o'clock
Response time 3/15 (Typ.)(Tr/Td) ms
Viewing angle 80/80/80/60 (Typ.)(CR≥10) Left/Right/Up/Down
Display mode TN, normally white display, transmissive
Support color 262K/16.7M, 40% NTSC.
Type of light source WLED [3 strings], 70K hours, without driving.
Application product industry with weight of 580/600g (Typ./Max.)
Frame frequency is 60Hz.
Interface type 20 pins LVDS (1 ch, 6/8-bit), terminal
The voltage supply is 3.3V (Typ.)
Working temperature of application environment:-30 ~ 80 C;
Storage temperature:-30 ~ 80 C; Vibration resistance: 2.0g (19.6m/s)
