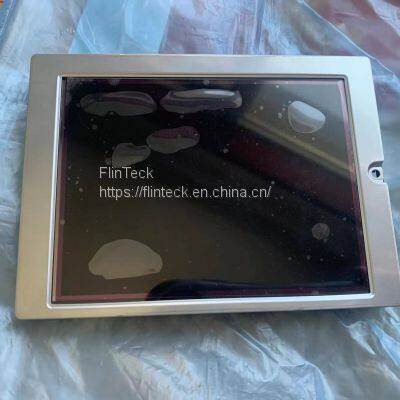

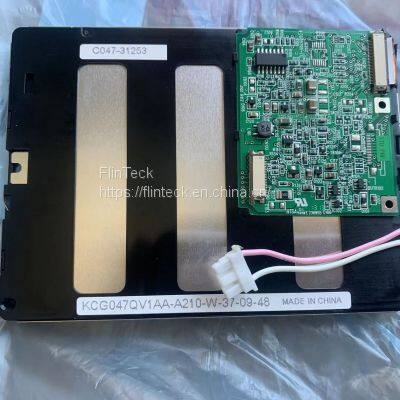

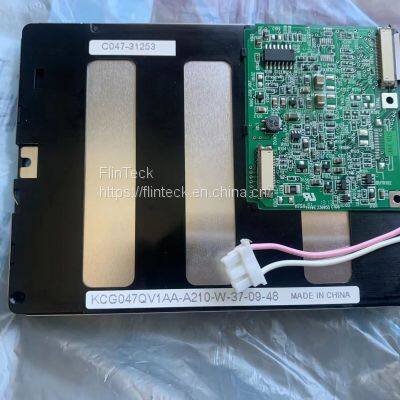

KCG047QV1AA-A210

Panel brand Kyocera

Panel model KCG047QV1AA-A21

Panel size 4.7 inches

Panel type CSTN-LCD, LCD module

The resolution is 320(RGB)×240, QVGA, 84PPI.

Pixel layout RGB vertical bar

Display area is 95.98 (w) × 71.98 (h) mm.

The external dimension is 122.4 (w) × 90 (h) × 11.4 (d) mm.

The visual dimension is 100.6× 76.6 (h× v) mm.

Brightness (CD/m) 160 CD/m (typ.)

Recommended perspective

Viewing angle 50/50/20/30 (Typ.)(CR≥2) Left/Right/Up/Down

Color quantity false color, 33% NTSC

Weight 120g

The refresh frequency is 75Hz.
