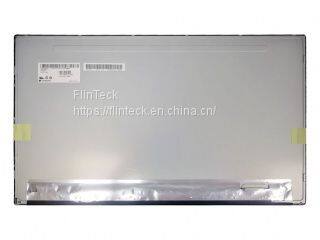

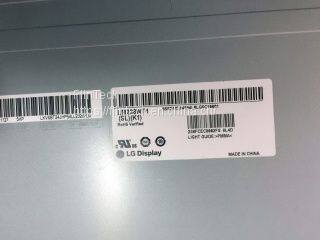

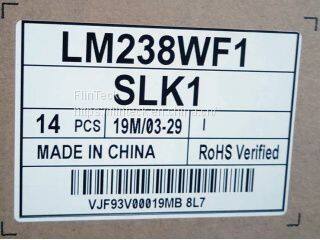

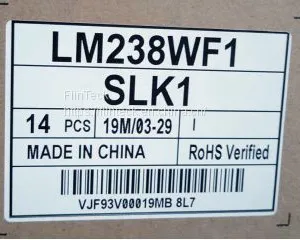

LM238WF1-SLK1 LG 23.8 Inches Panel Type A-Si TFT-LCD

Panel brand LG Display (LG Display)

Panel model LM238WF1-SLK1

Panel size 23.8 inches Panel type a-Si TFT-LCD, LCD module

Resolution 1920(RGB)×1080, FHD, 92PPI pixel layout RGB vertical stripes.

Display area 527.04(W)×296.46(H) mm

The external dimension is 543 (w) × 317.4 (h) × 11.7 (d) mm.

The visual size is 530.2 × 299.6 mm (H×V).

Surface treatment fog surface, Hard coating (3H)

Brightness (CD/m) 250 (typ.)

Contrast ratio 1000: 1 (Typ.) [transmission]

Optical mode IPS, normally black display, transmissive

Viewing angle 89/89/89/89 (Typ.)(CR≥10)

Response speed 14 (Typ.)(G to G) ms

Color quantity 16.7M, 72% NTSC

Backlight type 18s2pwled, 30kh, no drive.

Screen weight of 2.00/2.10Kgs (Typ./Max.) is suitable for

Refresh frequency 60Hz Touch function no touch.

Signal system LVDS (2 ch, 8-bit), terminal, 30 pins

Supply voltage is 5.0V (Typ.).

Storage temperature:-20 ~ 60 C.

Working temperature: 0 ~ 50 C.
