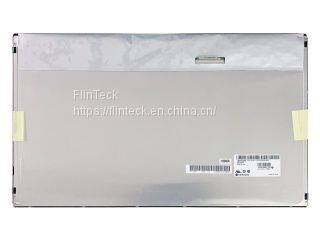

LM215WF3-SLC2 LG 21.5 Inches Panel Type A-Si TFT-LCD

Panel brand LG Display (LG Display)

Panel model LM215WF3-SLC2

Panel size 21.5 inches

Panel type a-Si TFT-LCD, LCD module

The resolution is 1920 (RGB) × 1080, FHD, and the pixel layout of 102 PPI is RGB vertical stripes.

Display area is 475.2 (w) × 267.3 (h) mm.

The external dimension is 495.6 (w) × 292.2 (h) × 10.7 (d) mm.

The visible size is 478.8 (w) × 271.3 (h) mm.

Surface treatment fog surface, Hard coating (3H)

Brightness (CD/m) 250 (typ.)

Contrast ratio 1000: 1 (Typ.) [transmission]

Optical mode IPS, normally black display, transmissive

Viewing angle 89/89/89/89 (Typ.)(CR≥10)

Response speed 14 (Typ.)(G to G) ms

Color quantity 16.7M, 72% NTSC

Backlight type 13s4pwled, 30kh, no drive.

Screen weight of 1.19/1.25Kgs (Typ./Max.) is suitable for

The refresh rate is 60Hz. Touch function and touchless signal system LVDS (2 ch, 8-bit), terminal, 30 pins.

Supply voltage 5.0V (Typ.) Maximum rated storage temperature:-20 ~ 60 C Working temperature: 0 ~ 50 C.
