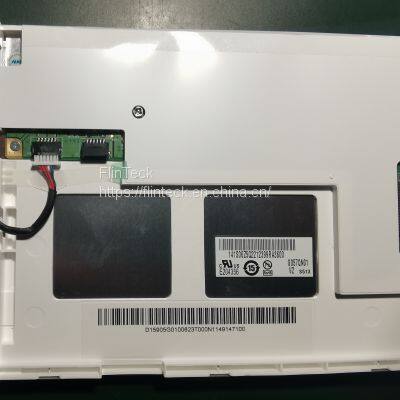

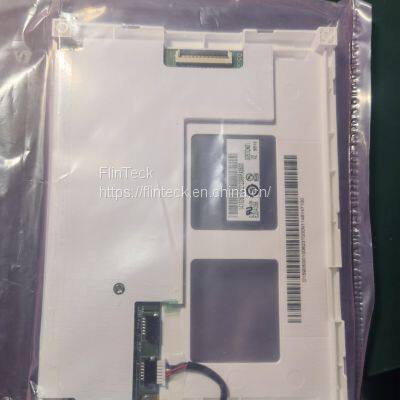

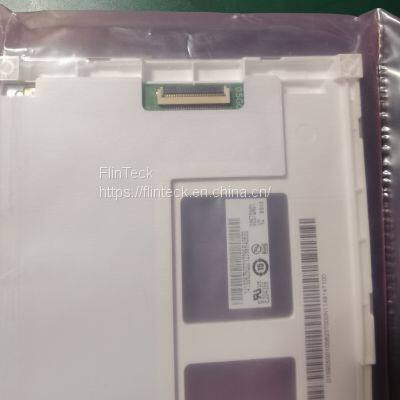

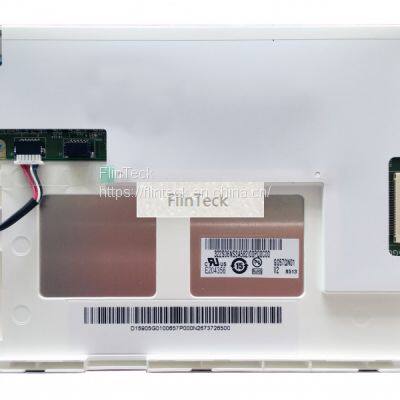

G057QN01 V2 AUO 5.7 Inch LCD Screen

Brand AUO (auo)

Model name G057QN01 V2

Screen size 5.7 "

Screen type LCD module, a-Si TFT-LCD

The resolution is 320(RGB)×240 [QVGA] 70PPI.

Pixel configuration RGB vertical stripes

The display size is 115.2 × 86.4 mm (H×V)

The external dimension is 144 × 104.6 × 12.8 mm (H×V×D).

The visual size is 118.2 × 89.4 mm (H×V).

Surface treatment fog surface, Hard coating (3H)

Brightness (CD/M) 800 (typ.)

Contrast ratio 800: 1 (Typ.) [transmission]

Optical mode TN, normally white display, transmissive

Viewing angle 80/80/70/70 (Typ.)(CR≥10)

Response speed 15/10 (Typ.)(Tr/Td) ms

Color quantity 262K, 50% NTSC

Backlight type WLED, 50K hours, including LED driver.

Screen weight 150/165g (Typ./Max.) is suitable for

The refresh frequency is 60Hz.

Touch function no touch

Signal system CMOS (1 ch, 6-bit), terminal, 33 pins

Supply voltage 3.3V (Typ.) Rated storage temperature:-30 ~ 85 C Working temperature:-30 ~ 85 C.
