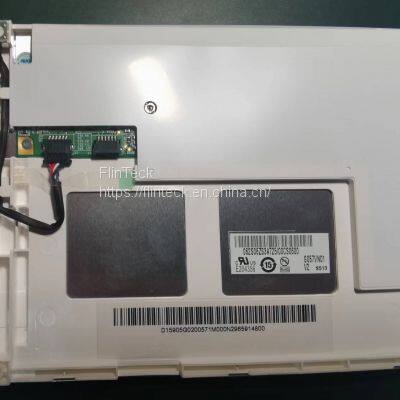

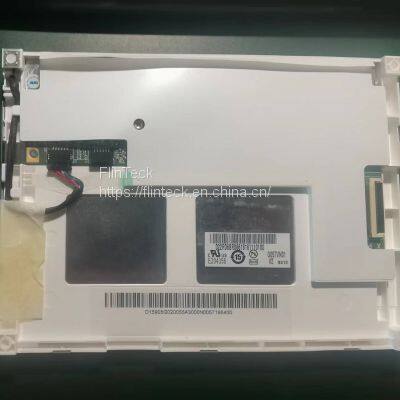

G057VN01 V2 AUO 5.7 Inch LCD Screen

AUO (AUO)

Model G057VN01 V2

Diagonal dimension 5.7 inch

Type a-Si TFT-LCD, liquid crystal module

Resolution 640(RGB)×480 QVGA 70PPI

Pixel arrangement RGB vertical strip

The display area is 115.2 (horizontal) ×86.4 (vertical) mm.

The external dimension is 144 (horizontal) ×104.6 (vertical) ×12.8 (thickness) mm.

The opening area is 118.2 (horizontal) ×89.4 (vertical) mm.

Surface treatment fog surface, Hard coating (3H)

Display brightness is 800 cd/m² (Typ.)

Contrast ratio 800:1 (Typ.) (transmission)

Recommended viewing angle 12 o'clock

Response time 15/10 (Typ.)(Tr/Td) ms

Viewing angle 80/80/70/70 (Typ.)(CR≥10)

Display mode TN, normally white display, transmissive

Support color 262K, 50% NTSC.

Type of light source WLED, 50K hours, including LED driver.

Application product with weight of 150/165g (Typ./Max.)

The frame frequency is 60Hz. Touch technology is non-touch.

Interface type 33 pins CMOS (1 ch, 6-bit), terminal

The voltage supply is 3.3V (Typ.)

Working temperature of application environment:-30 ~ 85 C; Storage temperature:-30 ~ 85 C.
