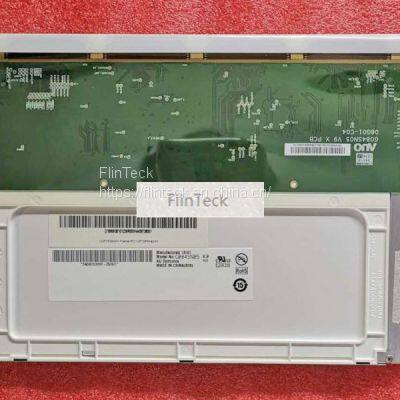

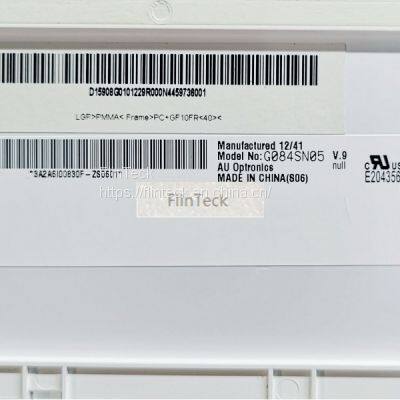

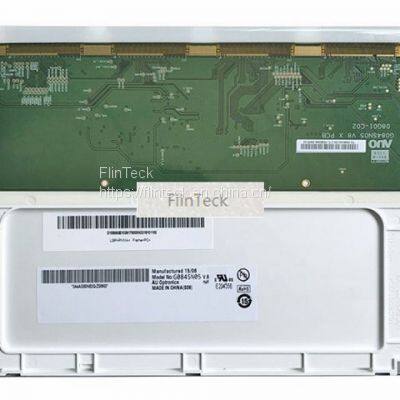

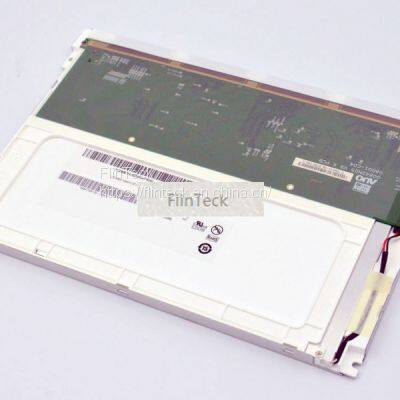

G084SN05 V9 AUO 8.4 Inch LCD Screen

Panel brand AUO (AUO)

Panel model G084SN05 V9

Panel size 8.4 inches

Panel type a-Si TFT-LCD, LCD module

The number of pixels is 800(RGB)×600, SVGA, 119PPI.

Pixel layout RGB vertical bar

The display area is 170.4 (width) ×127.8 (height) mm.

The visible area is 174.15 (width) ×131.2 (height) mm.

The external dimension is 203 (width) ×142.5 (height) ×8 (thickness) mm.

Surface treatment fog surface, Hard coating (3H)

Panel brightness 450 cd/m² (Typ.)

Contrast 600:1 (Typ.) (TM)

Viewing angle 80/80/80/60 (Typ.)(CR≥10)

Working mode TN, normally white display, transmissive

Angle of view 6 o'clock

The reaction time was 20/10 (Typ.)(Tr/Td).

Display color 262K/16.2M, 45% NTSC.

Light source type 2 strings WLED, 50K hours, including LED driver.

Working frequency 60Hz

Touch-free screen

Panel weight 250g (Typ.) Panel application

Signal interface LVDS (1 ch, 6/8-bit), 20 pins, terminal

Screen driving voltage is 3.3V (Typ.).

Working environment:-30 ~ 85 C; Storage:-30 ~ 85 c
