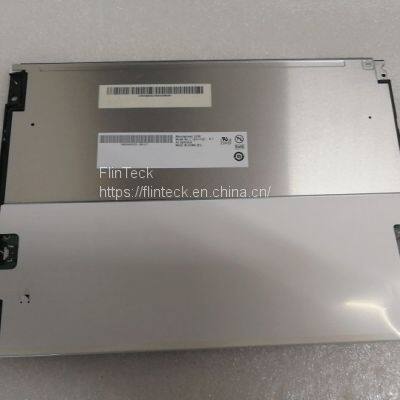

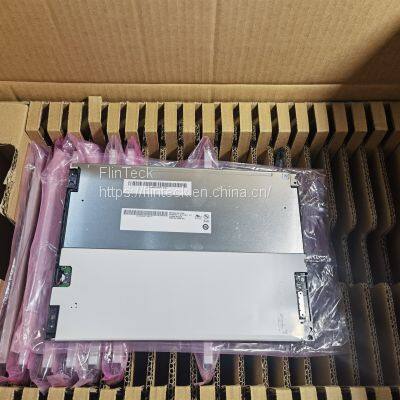

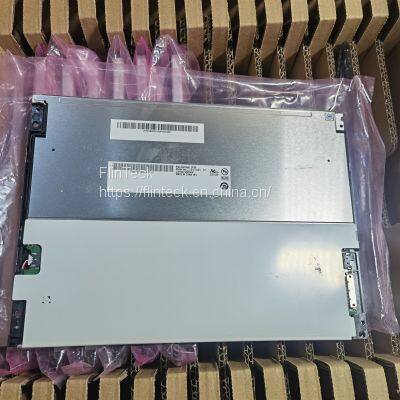

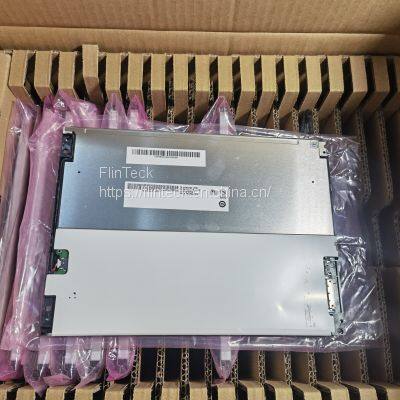

Panel brand AUO (AUO)
Panel model G104VN01 V1
Panel size 10.4 inches Panel type a-Si TFT-LCD,
The number of pixels of LCD module is 640 (RGB) × 480, VGA and 76 PPI images.
Pixel layout RGB vertical strip
The display area is 211.2 (width) ×158.4 (height) mm.
Visible area 214.8 (width) ×162.4 (height) mm.
The external dimension is 243 (width) ×176.6 (height) ×8.5 (thickness) mm.
Surface treatment fog surface, Hard coating (3H)
Panel brightness 450 cd/m² (Typ.) and contrast 700:1 (Typ.) (TM).
Viewing angle 80/80/60/80 (Typ.)(CR≥10) Working mode TN, normally white display, transmissive.
Angle of view 6 o'clock reaction time 20/10 (Typ.)(Tr/Td) ms
Display color 262K/16.2M, 45% NTSC.
Light source type 8S2P WLED, 50K hours, including LED driver.
Working frequency 60Hz
Touch-free screen
Panel weight is 350g (Typ.), panel application signal interface LVDS (1 ch, 6/8-bit), 20 pins, terminal screen driving voltage is 3.3V (Typ.) Working environment:-30 ~ 85 C; Storage:-30 ~ 85 c
