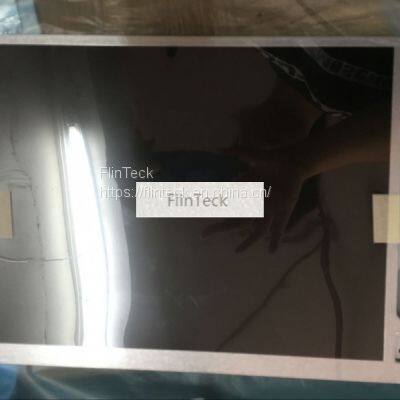

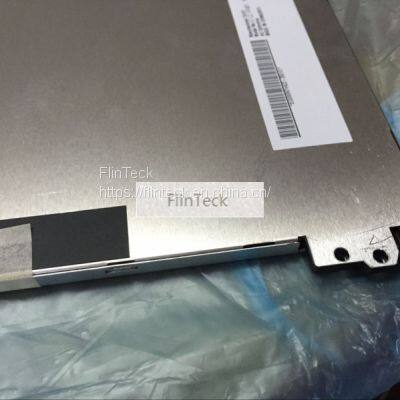

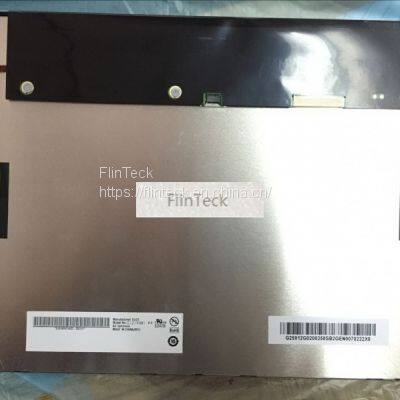

G121XN01 V0 AUO 12.1 Inch LCD Screen

AUO (AUO)

Model G121XN01 V0 (G121XN01.0)

Diagonal dimension 12.1 inch Type a-Si TFT-LCD, liquid crystal module

Resolution 1024(2)×768(2) XGA 105PPI

Pixel arrangement RGBW rectangle

The display area is 245.76 (horizontal) ×184.32 (vertical) mm.

Appearance dimension is 279 (horizontal) ×209 (vertical) ×9 (thickness) mm.

The opening area is 250.8 (horizontal) ×189.4 (vertical) mm.

Surface treatment fog surface, Hard coating (3H)

Display brightness 500 cd/m² (Typ.)

Contrast ratio 700:1 (Typ.) (transmission)

Recommended viewing angle-response time 25/10 (Typ.)(Tr/Td) ms

Viewing angle 80/80/80/80 (Typ.)(CR≥10)

Display mode TN, normally white display, transmissive

Support color 262K/16.2M, 70% NTSC.

Type of light source WLED [9S2P], 50K hours, including LED driver.

Weight 495g (Max.) Application product frame frequency 60Hz.

Touch technology without touch

Interface type 20 pins LVDS (1 ch, 6/8-bit), terminal

The voltage supply is 3.3V (Typ.)

Working temperature of application environment:-30 ~ 85 C; Storage temperature:-30 ~ 85 C.
