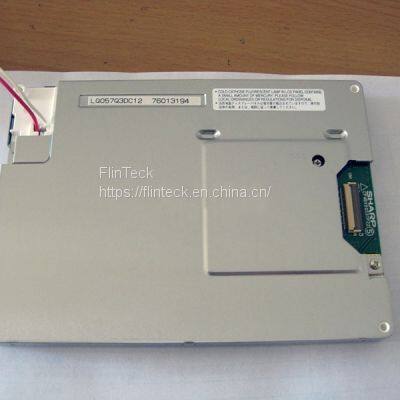

LQ057Q3DC12 Sharp 5.7 Inch LCD Screen

Panel brand Sharp

Panel model LQ057Q3DC12

Panel size 5.7 inches

Panel type a-Si TFT-LCD, LCD module

The resolution is 320(RGB)×240, QVGA, 70PPI.

Pixel layout RGB vertical bar

The display area is 115.2 (w) × 86.4 (h) mm.

The external dimension is 144 (w) × 104.6 (h) × 13.5 (d) mm.

The visual size is 121.0× 92.2 (h× v) mm.

Brightness (CD/m) 500 CD/m (typ.)

Recommended viewing angle 12 o'clock

Viewing angle 65/65/65/40 (Typ.)(CR≥5)

Weight 220±20g

Refresh frequency-

Surface treatment Hard coating (3H)

Contrast 350: 1 (Typ.) (transmission)

Optical mode TN, normally white display, transmissive

Response speed 8/21 (Typ.)(Tr/Td) ms

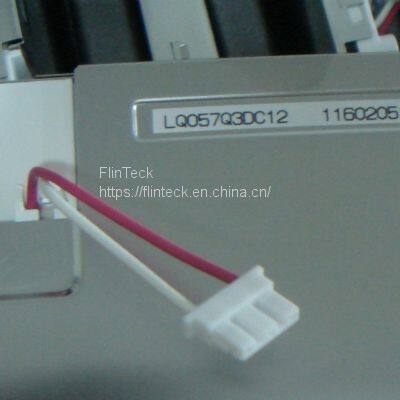

Backlight system 1 pcs CCFL, 50K hours, without driving.

Storage temperature:-30 ~ 80 C and working temperature:-30 ~ 80 C.
