Brand Mitsubishi

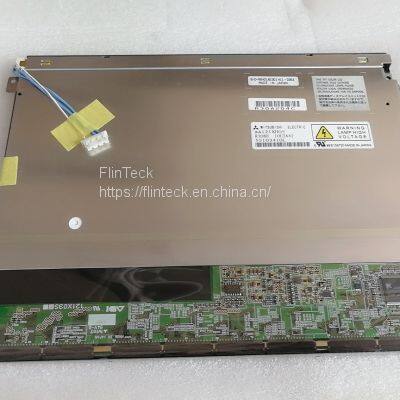

Model name AA121XH05
2 compatible model screen size 12.1 "
Screen type LCD module, a-Si TFT-LCD
The resolution is 1024(RGB)×768 [XGA] 105PPI.
Pixel configuration RGB vertical stripes
The display size is 245.76 × 184.32 mm (H×V).
The external dimension is 280 × 210 × 12.5 mm (H×V×D).
The visual size is 249.0 × 187.5 mm (H×V).
Surface treatment fog surface, Hard coating (3H)
Brightness (CD/m) 320 (typ.)
Contrast ratio 550: 1 (Typ.) [transmission]
Angle 6 o'clock
Optical mode TN, normally white display, transmissive
Viewing angle 65/65/45/75 (Typ.)(CR≥10)
Response speed 6/19 (Typ.)(Tr/Td) ms
Color quantity 262K, 40% NTSC
Backlight type 2 pcs CCFL, 50K hours, no drive.
Screen weight 720g (Typ.) is suitable for
Refresh frequency 60Hz Touch function no touch.
Signal system LVDS (1 ch, 6-bit), terminal, 20 pins
Supply voltage is 3.3V (Typ.).
Rated storage temperature:-20 ~ 80 C and working temperature:-20 ~ 70 C.
