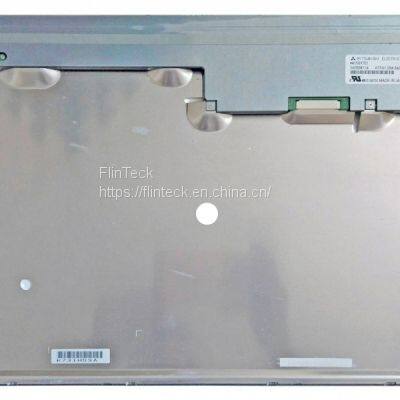

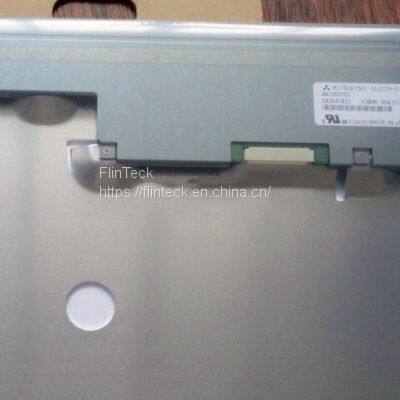

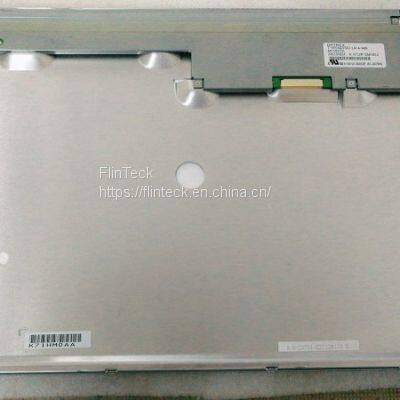

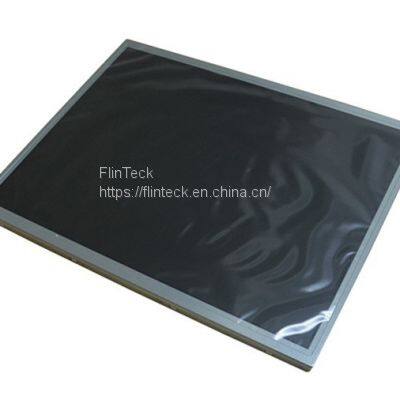

AA150XT01 Mitsubishi 15-inch LCD AA150XT01 Resolution 1024x768
- T/T
You May Like
Product Description
Brand Mitsubishi
Model name AA150XT01
1 compatible model screen size 15.0 "
Screen type LCD module, a-Si TFT-LCD
Pixels with resolution of 1024(RGB)×768 [XGA] 85PPI are provided with RGB vertical stripes.
The display size is 304.128 × 228.096 mm (H×V).
The external dimension is 326 × 255 × 17.1 mm (H×V×D).
The visual size is 308.1 × 232.1 mm (H×V).
Surface treatment fog surface, Hard coating (3H)
Brightness (CD/M) 800 (typ.)
Contrast ratio 800: 1 (Typ.) [transmission]
Angle 6 o'clock
Optical mode TN, normally white display, transmissive
Viewing angle 80/80/60/80 (Typ.)(CR≥10)
Response speed 6/19 (Typ.)(Tr/Td) ms
Color quantity 262K/16.7M, 50% NTSC.
Backlight type 7S4P WLED, 100K hours, no drive.
Screen weight of 1.27Kgs (Typ.) is suitable for
Refresh frequency 60Hz Touch function no touch.
Signal system LVDS (1 ch, 6/8-bit), terminal, 20 pins
Supply voltage is 3.3V (Typ.).
Rated storage temperature:-20 ~ 80 C and working temperature:-20 ~ 70 C.
