Air Float Pneumatic Rotary Table ODM/OEM Manufacturer
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
You May Like
-
Surface Profile CMM Contour Measuring Machine
-
Comprehensive Contour Roughness Measurement Profilometer Machine
-
Digital Contour Measuring Machine Profile Measuring Equipment
-
High Precision Digital Contour Testing Machine
-
Large Range Profile Measurement Machine
-
Fully Automatic CNC Surface Shape Measuring Machine
Product Details
| Brand Name | Wilson | Place of Origin | China | |
| Model Number | RT100 |
Product Description

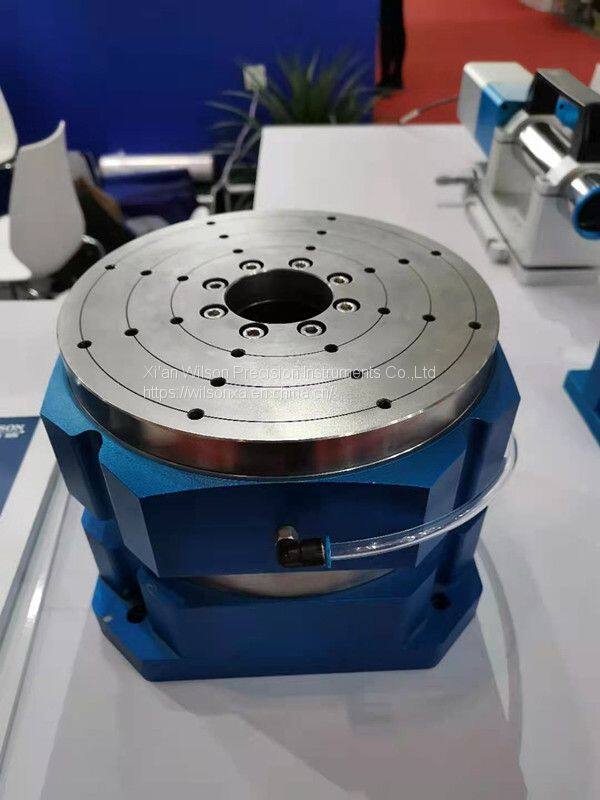

Air Float Pneumatic Rotary Table ODM/OEM Manufacturer
Wilson,one of the drafting members of the Industry Standard for Contour Measuring Machines(JB/T 11271-2012)
Wilson,one of the drafting members of the National Standard of Roundness Measuring Machines(GB/T 26098-2010)
Main parameters: Optical testing equipment / high precision measuring instruments / high precision drilling machine / laser processing
Main Functions:
For optical inspection equipment, high-precision measuring instruments, high-precision drilling machines, laser processing and other large high-precision measurements.
Product Features:
● High speed (speed up to 12,000 revolutions per minute)
● High accuracy (shaft and radial accuracy 0.05 micron)
● Large load capacity (5kg - 2000kg)
● Various options of working table, Φ100 200 300...2000
● No friction, no wear
● Low noise, no pollution
● Long life, easy maintenance
Application Field:
● Analog magnetic sensor calibration
● Gyroscope calibration
● Device motion simulation
● Acceleration test
● Optical measurement
● Other precision instrument applications
Product Parameter
Item | Product Model | ||
RT100 | RT200 | RT300 | |
Main application | Mainly used on measuring equipment where high precision angle detection is required (manual measurement) | ||
Main axis axial error | (±40+0.3H)nm | (±30+0.3H)nm | (±20+0.3H)nm |
Main axis radial error | (±50+0.6X)nm | (±35+0.6X)nm | (±30+0.6X)nm |
Load capacity | 15kg、25kg、50kg、120kg、200kg、300kg、600kg、1000kg、1500kg、2000kg | ||
Worktable diameter | 110mm、150mm、220mm、280mm、320mm | ||
Turning way | Auto/Manual, optional | ||
High precision rotary coding | Accuracy:±0.15″、±0.25″、±0.5″、±1″、±1.5″、±2″ | ||
3-D adjustment table | X direction adjustment distance 0-4mm, adjustment slope ratio: 150:3 | ||
Y direction adjustment distance 0-4mm, adjustment slope ratio: 150:3 | |||
Manual fine adjustment device | Minimum adjustment angle 0.01″ (optional) | ||
