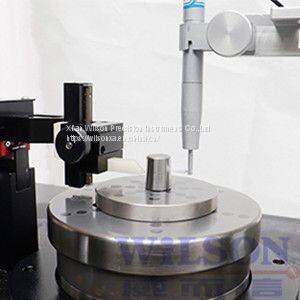

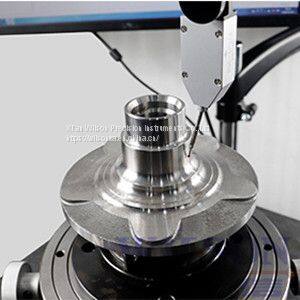

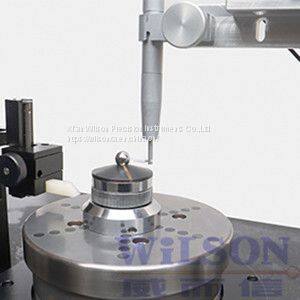

FINISHED BEARING MEASURING INSTRUMENTS
High-speed Bearing Roundness Measuring Instrument
Automotive bearings series testing machine
Special bearings test
Wilson,one of the drafting members of the Industry Standard for Contour Measuring Machines(JB/T 11271-2012)
Wilson,one of the drafting members of the National Standard of Roundness Measuring Machines(GB/T 26098-2010)
Main parameters: it can measure the roundness, concentricity, coaxiality, eccentricity, etc. of various regular and irregular ring-shaped workpieces.
Analysis function: static waviness, dynamic waviness, surface waviness (Wc, Wp, Wv, Wt, Wa, Wq), spectrum analysis, wave height analysis
Roundness filter mode: 1-500, 1-250, 1-50, 1-15
Waviness: 3-16, 3-17, 15-500, 17-100
Main Functions:
It can quickly measure the roundness, waviness, harmonic amplitude, coaxiality, concentricity, shaft curvature, spectrum analysis, wave height, wave width analysis, etc. of inner and outer rings of bearings.
Roundness evaluation method : minimum area method, least squares method, minimum external circle method, maximum internal tangent circle method roundness
Filter bands : 2-500, 2-15, 15-500, 2-50, 2-150, 1-500, eccentric
Manual arbitrary band selection ripple degree : 3-16, 3-17, 17-100
Product Parameters:
DTP-2000C | DTP-2000D | ||
Main axis accuracy | ±0.025μm | ±0.0125μm | |
System accuracy | ≤0.06μm | ≤0.03μm | |
Worktable | Table diameter | φ140mm | |
Turning diameter | φ200mm | ||
Load capacity | 10Kg | ||
Rotate speed | 0~180r/min | ||
Sensor | Measuring range | 30μm(radius difference) | |
Resolution | 0.01μm | ||
Stylus form | φ2mm Nylon probe | ||
