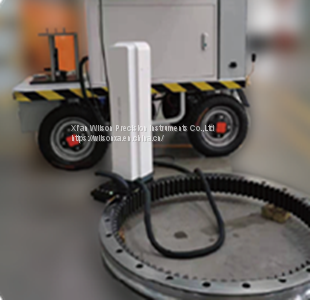

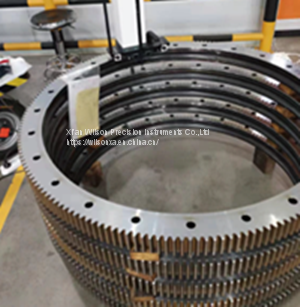

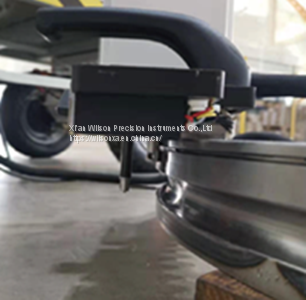

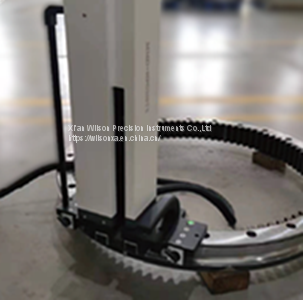

Large Wind Turbine Bearings Mobile Roughness Measuring Instrument
Wilson,one of the drafting members of the Industry Standard for Contour Measuring Machines(JB/T 11271-2012)
Measurement Function:
1.Measurement of shape deviation and form deviation
Dimensions: including horizontal distance, vertical distance, linear distance, radius, diameter
Angle: including horizontal angle, vertical angle, pinch angle
Position tolerance: including parallelism, perpendicularity
Shape tolerance: including straightness, convexity, arc contour degree
Auxiliary generation: including auxiliary point, auxiliary line, auxiliary circle
2.Roughness measurement
Roughness analysis: Ra, Rq, Rz (Ry), Rz (DIN), R3z, Rz (jis), Rp, Rv, Rt, etc.
Waviness analysis: wt, wa, wp, wv, wq, etc.
Product Parameter:
Item | Parameter | |
Measuring range | Z axis(Column) | 200mm |
Z1(Sensor) | 60mm | |
Measuring accuracy | Z axis measurement error | ±(2.5+0.02L)μm ※ |
Z1 axis measurement accuracy | ±(3+0.02H)μm ※ | |
Roughness value stability | ≤±7% | |
Roughness measurement repeatability | ±3% | |
Linearity accuracy | ≤±0.05%F.S | |
Curvature measurement error (R in mm) | ±（3+R/12）μm | |
Curvature value repeatability | ±3μm | |
Angle measurement error | ±2.5′ | |
Angle value repeatability | ±1% | |
Evaluation length | λc×3、4、5、6、7 | |
Cutoff wavelength | 0.025、0.08、0.25、0.8、2.5、8mm | |
Climbing angle | Upward 77°，downward 88° | |
※ L: measuring length H: measuring height
