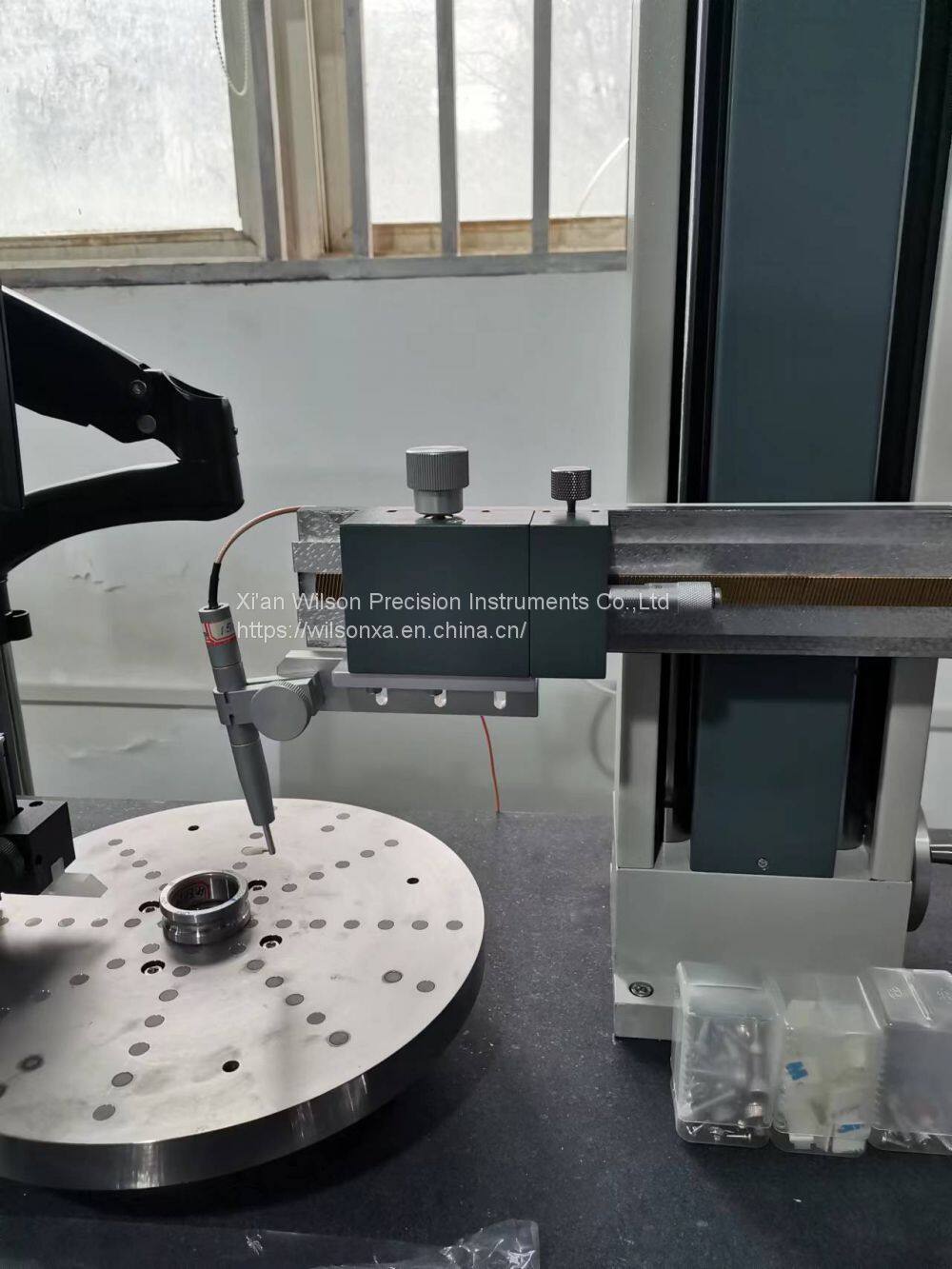

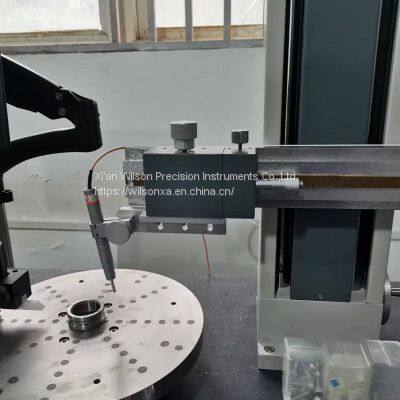

BEARING COMPONENTS ROUNDNESS MEASURING INSTRUMENT

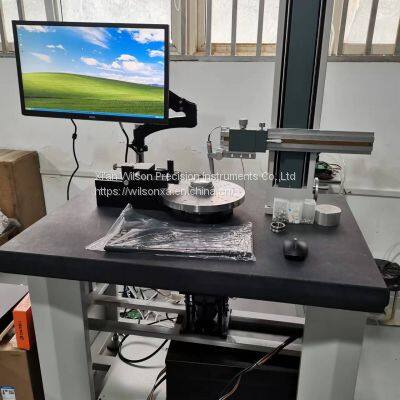

Steel ball roughness measuring instrument
Automotive bearings series testing machine
Special bearings test
Wilson,one of the drafting members of the Industry Standard for Contour Measuring Machines(JB/T 11271-2012)
Wilson,one of the drafting members of the National Standard of Roundness Measuring Machines(GB/T 26098-2010)
Main parameters: it can measure the roundness, concentricity, coaxiality, eccentricity, etc. of various regular and irregular ring-shaped workpieces.
Analysis function: static waviness, dynamic waviness, surface waviness (Wc, Wp, Wv, Wt, Wa, Wq), spectrum analysis, wave height analysis
Roundness filter mode: 1-500, 1-250, 1-50, 1-15
Waviness: 3-16, 3-17, 15-500, 17-100
Main Functions:
It can quickly measure the roundness, waviness, harmonic amplitude, coaxiality, concentricity, shaft curvature, spectrum analysis, wave height, wave width analysis, etc. of inner and outer rings of bearings.
Roundness evaluation method : minimum area method, least squares method, minimum external circle method, maximum internal tangent circle method roundness
Filter bands : 2-500, 2-15, 15-500, 2-50, 2-150, 1-500, eccentric
Manual arbitrary band selection ripple degree : 3-16, 3-17, 17-100
Product Parameters:
DTP-2000C | DTP-2000D | ||
Main axis accuracy | ±0.025μm | ±0.0125μm | |
System accuracy | ≤0.06μm | ≤0.03μm | |
Worktable | Table diameter | φ140mm | |
Turning diameter | φ200mm | ||
Load capacity | 10Kg | ||
Rotate speed | 0~180r/min | ||
Sensor | Measuring range | 30μm(radius difference) | |
Resolution | 0.01μm | ||
Stylus form | φ2mm Nylon probe | ||
