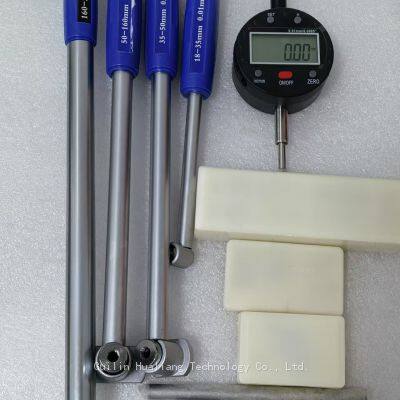

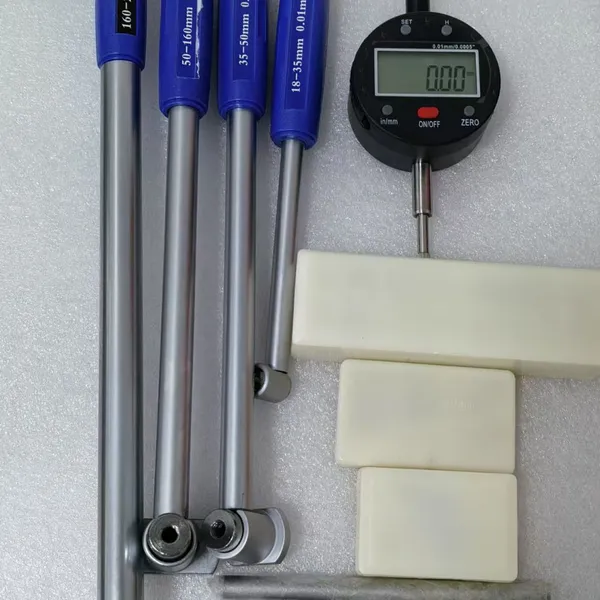

Digital Internal Micrometer

Digital Bore Gauge (Digital Internal Micrometer)

A digital bore gauge is a precision measuring instrument used to accurately determine the internal diameter of holes, cylinders, or bores in mechanical components. It combines traditional gauge technology with digital display capabilities, offering high precision and ease of use. Here are its key features and applications:

Key Features

Digital Display: Shows measurements in metric (mm) or imperial (inch) units, eliminating manual reading errors.
High Precision: Typically provides measurements with an accuracy of up to 0.001mm or 0.0001 inches.
Data Output: Some models support data transfer to computers or printers via USB, Bluetooth, or RS-232 interfaces for quality control documentation.
Zero Setting: Allows users to set a reference point (zero) for comparative measurements.
Hold Function: Freezes the current measurement on the display for easy recording.
Battery-Powered: Usually operates on replaceable batteries (e.g., button cells) for portability.

Applications

Automotive Industry: Measuring engine cylinders, gearbox holes, or bearing seats.
Aerospace: Inspecting precision components like turbine casings or hydraulic cylinders.
Manufacturing: Quality control for machined parts, molds, or pipes.
Research and Development: Precise measurements in material testing or prototype development.

How It Works

Probe Insertion: The gauge’s probe is inserted into the bore to be measured.
Expansion/Contraction: The probe expands or contracts to fit the internal diameter, and the displacement is converted into an electrical signal.
Digital Conversion: The signal is processed and displayed as a numerical value.
Measurement Reading: The user reads the direct measurement from the digital screen.

Comparison with Analog Gauges

Digital Advantage: Faster readings, reduced human error, and compatibility with data logging systems.
Analog Limitation: Requires manual interpretation of dial or scale readings, which can be less precise.

Example Usage

plaintext
To measure the internal diameter of an engine cylinder: 1. Set the gauge to the approximate size of the cylinder. 2. Zero the gauge on a reference ring or known standard. 3. Insert the gauge into the cylinder and rock it gently to find the maximum diameter. 4. Read the value displayed on the digital screen.

Maintenance Tips

Keep the probe clean and free of debris.
Store in a protective case to prevent damage.
Calibrate regularly against certified standards to ensure accuracy.

Digital bore gauges are essential tools for industries requiring high-precision internal measurements, offering efficiency and reliability in quality assurance processes.

Send Inquiry to This Supplier
