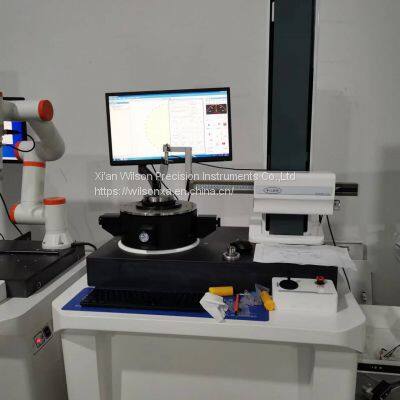

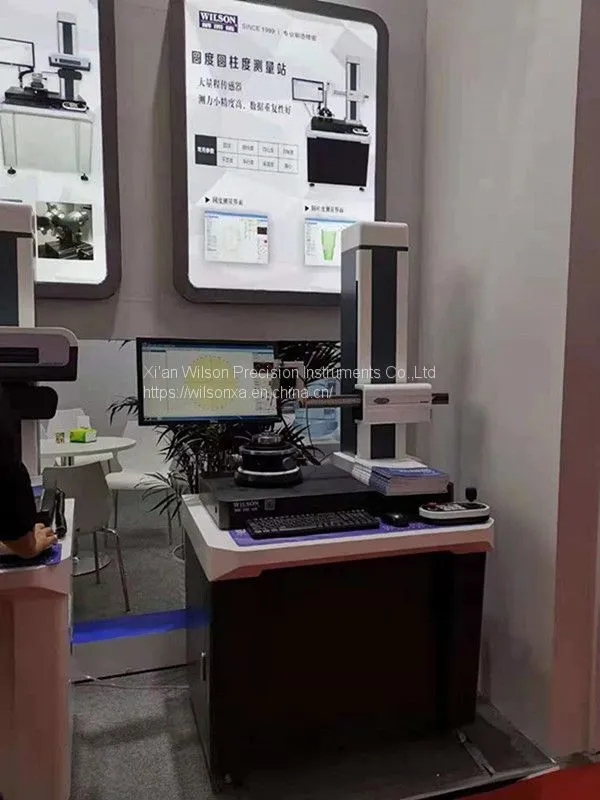

Fully automated roundness/cylindricity instrument
This CA series high accuracy roundness/cylindricity measuring instrument delivers ±0.0125μm accuracy and its rotary table with auto-centering and auto-levelling functions.
Main parameters: roundness, cylindricity, concentricity, coaxiality, flatness, parallelism, perpendicularity, eccentricity
Main Functions:
Measurement of roundness, cylindricity, straightness, runout, full runout, taper, diameter, concentricity, coaxiality, flatness, parallelism, perpendicularity, eccentricity, etc. of various regular and irregular ring-shaped workpieces
Analysis of surface waviness (Wc, Wp, Wv, Wt, Wa, Wq), spectrum analysis, wave height analysis
Roundness evaluation method: minimum area method, least squares method, minimum external circle method, maximum internal tangent circle method
Roundness filtering method: 1-500, 1-150, 1-50, 1-15
Waviness: 3-16, 15-500, 17-100
Technical Features:
● Accuracy: Adopting high precision rotary aerostatic bearing structure, the accuracy is up to ±0.0125μm.
● Lifespan: The spindle adopts air floating structure, which never wears out and keeps the accuracy for a long time, and the instrument has a long lifespan.
● Data acquisition adopts imported precision circular grating, which collects 14,400 points per week with high accuracy and stability.
● Appearance: One-piece structure, beautiful and elegant.
● CA measurement software based on WINDOWS system, with intuitive and friendly interface, easy operation and rich measurement functions.
● Automatic recognition of contour interruption, automatic rejection of notch, abnormal point function.
● Partial arc measurement roundness function.
● Powerful analysis function, such as taper, diameter, ripple degree, wave height and spectrum analysis, etc.
● SPC statistical analysis: statistical analysis of a large number of measurement data and graphic analysis report.
● The measurement parameters can be set to judge the process requirements to improve the observability of quality control.
● Single or multiple measurement data can be printed on the same page.
● Different sizes of ruby styli can be selected at will.
● High quality and reliable industrial control computer is adopted.
Product Parameters:
Item/Model |
CA35 |
CA65 |
CA95 |
CA125 |
CA255 |
|
Measuring range |
Parts max turning diameter |
φ420mm |
φ500mm |
|||
Max measuring height |
550mm |
650mm |
||||
Max measuring depth |
Use standard probes: 100mm (when the aperture diameter is less than 36mm, the maximum measurement of the non-standard fixture is 300mm,the aperture diameter is greater than 36mm, optional) |
|||||
Max load |
25Kg |
50Kg |
100Kg |
150Kg |
250kg |
|
Size |
Machine size |
910×700×1500mm |
||||
Package size |
1000×900×2000mm |
|||||
