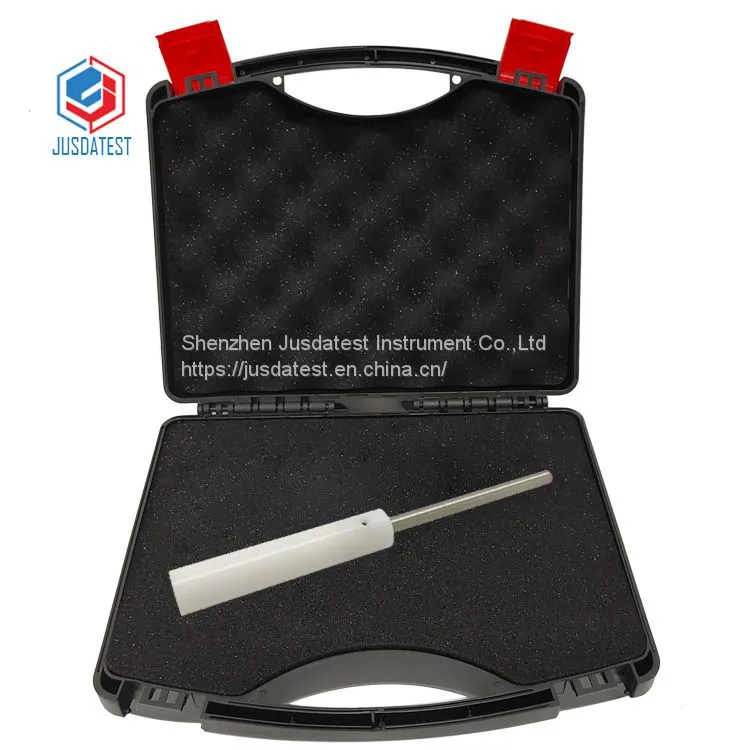

IEC60335-2-14 Clause 20.102 Handheld Blenders Blade 8mm Test Probe with Handle

IEC60335-2-14 Clause 20.102 Handheld Blenders Blade 8mm Test Probe with Handle

     According to IEC60335-2-14 Clause 20.102 blades of hand-held blenders shall be completely screened from above and shall not be able to touch a flat surface while rotating.

    Compliance is checked by inspection and by applying a cylindrical rod from any position between the vertical and an angle of 45° to the upperside of the blending blade. The rod has a diameter of 8,0 mm ± 0,1 mm and unlimited length.It shall not be possible to touch the blades with the end of the test rod.

1. Probe length: 80mm

2. Probe diameter: 8mm
