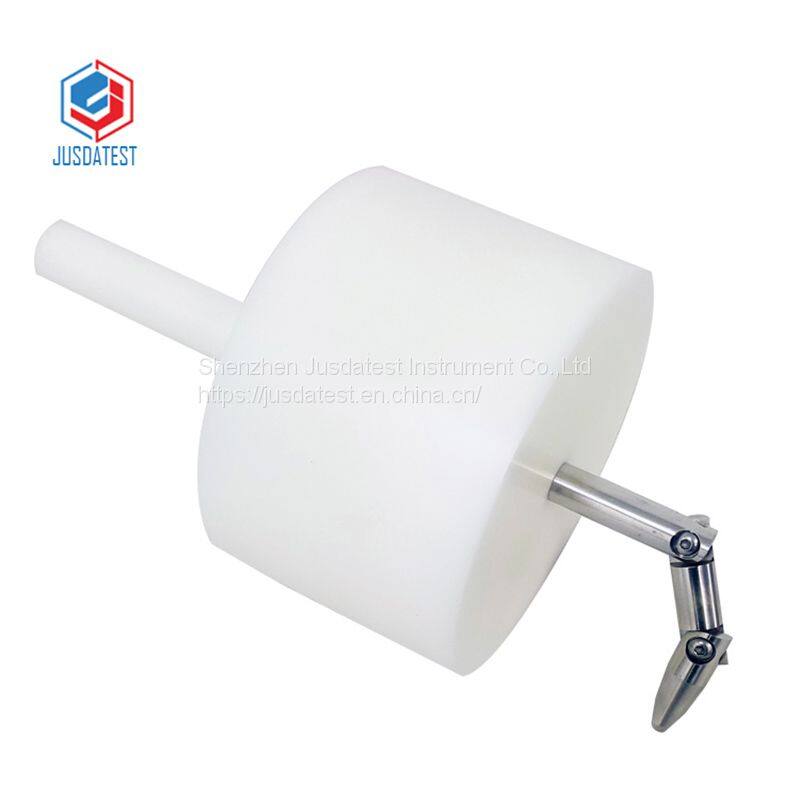

IEC60335-2-14:20.2 diameter of 125mm with a round stop plate test finger for blender

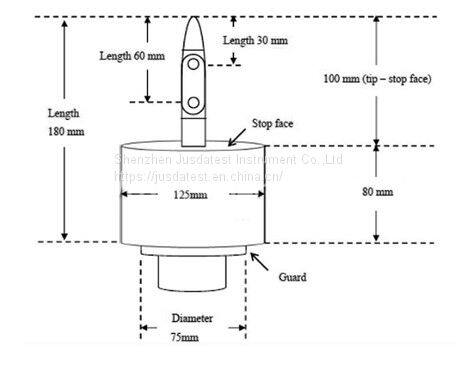

For blenders, detachable parts, except lids, are not removed. The test is carried out with a test probe similar to that of test probe B of IEC 61032 but having a circular stop face with a diameter of 125mm instead of the non-circular face,the distance between the tip of the test finger and the stop face being 100mm
Technical parameter
1. Diameter of finger: 12 mm
2.Finger length: 100mm (total length of three sections)
3. Diameter of baffle: 125mm
4. Baffle length: 80mm
5. Reference standard: IEC 60335-2-14 Clause 20.2
