IEC60335-2-64:20.2 Having a 56mm Non-circular Stop Face Test Finger Probe With Long Handle
- Shenzhen
- T/T
- 2 days
You May Like
-
IEC60335-2-14:20.2 Diameter of 125mm With a Round Stop Plate Test Finger for Blender
-
IEC60335-2-24 Clause21.102 75mm Diameter Sphere Test Probe
-
IEC60335-2-30/IEC60335-2-24 75mm Diameter Hemispherical Test Rod
-
UL507 Uninsulated Live Parts Test Probe PA130A ,PA135A
-
UL1278 Figure 8.2 Enameled Wire Test Probe PA140, Film-coated Wire Rod
-
UL507 Fan Blades of Air Heaters Test Probe PA160B
Product Details
| Brand Name | JUSDATEST | Model Number | JSD-BR56 |
Product Description

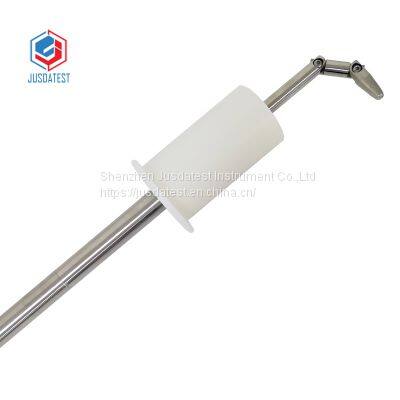

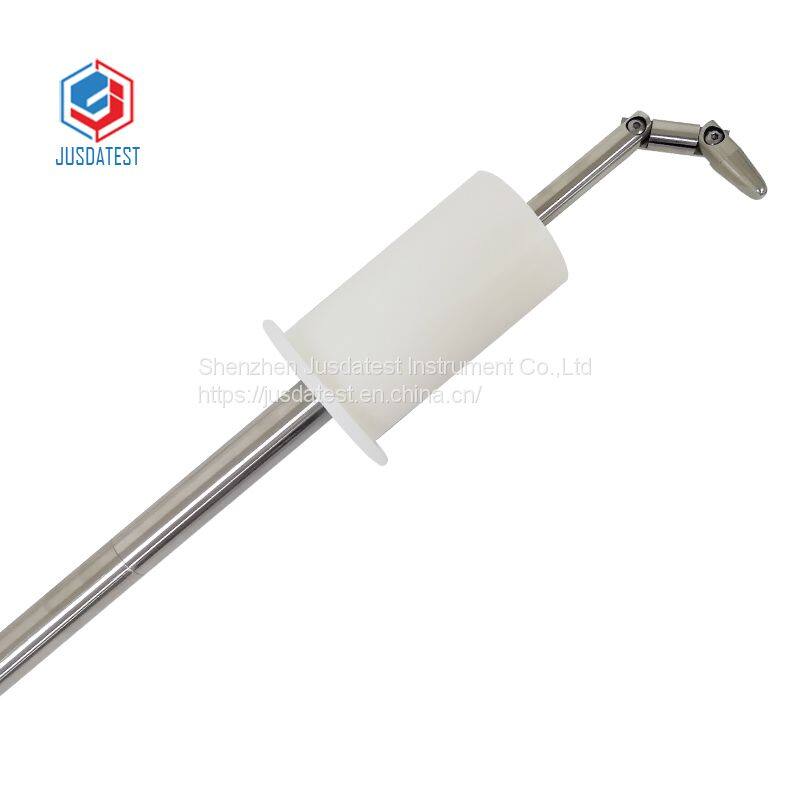

IEC60335-2-64:20.2 Having a 56mm non-circular stop face Test finger Probe with long handle
The test finger meets the requirements of IEC60335-2-64 Clause20.2 Similar to test probe B of IEC 61032,but a non-circular stop face with a diameter of 56mm instead of 50mm and with the distance between the tip of the test probe and the stop face being 120mm.The 75mm diameter guard is removed. The test probe is not inserted into the aperture for a linear distance of more than 850mm,measured from the tip of the probe,if the aperture has a largest dimension of less than 150mm.
Technical parameter
1. Diameter of finger: 12 mm
2. Finger length: 80mm (total length of three sections)
3. Diameter of baffle: 56mm
5. Reference standard: IEC60336-2-64: 20.2
