UL1278 Figure 8.2 Enameled Wire Test Probe PA140, Film-coated Wire Rod
US$ 140 - 150
/ Piece
1 Piece(Min. Order)
- Shenzhen
- T/T
- 2 days
You May Like
-
UL507 Fan Blades of Air Heaters Test Probe PA160B
-
UL507 Figure8.2 Fan Impellers Moving Parts Test Probe S2140A
-
IEC60695-2-10 Glow Wire Apparatus Replacement Glow Wire Loop Diameter 1mm
-
UL507 Figure9.2 Jointed Finger for Uninsulated Live Parts PA100A
-
IEC60335-2-75 Figure 101 Splash Apparatus
-
IEC62368 UL Rigid Test Probe, Unjointed Finger for Uninsulated Live Parts
Product Details
| Brand Name | JUSDATEST | Place of Origin | China | |
| Model Number | JSD-PA140A |
Product Description

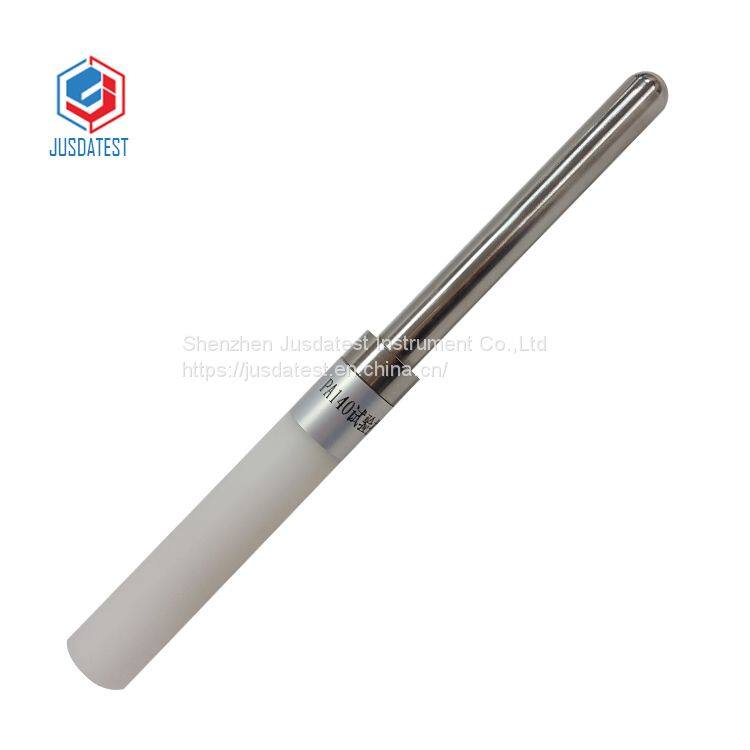

UL1278 Figure 8.2 Enameled Wire Test Probe PA140, Film-coated wire Rod
According to UL1278 Figure 8.2 standard.The UL test probe (PA140A test probe) is mainly used for the detection of enameled wires (film-coated conductors) or similar components.

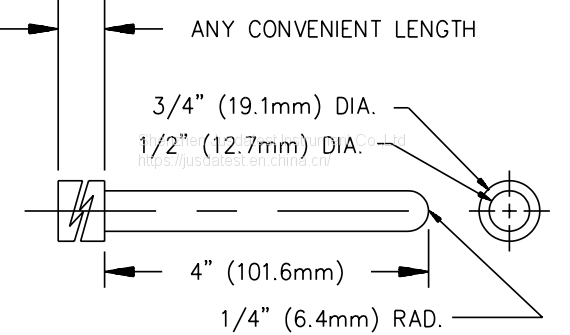

Technical parameter:
1. Diameter: 12.7mm (1/2 inch)
2. The total length of the probe: 101.6mm (4 inch)
4. Head radius: R 6.4mm (1/4 inch)
5. Tail diameter: 19.1mm (3/4 inch)
6. Reference standard: UL1278 figure 8.2 (PA140A )
