UL507 Uninsulated Live Parts Test Probe PA130A ,PA135A
US$ 140 - 150
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
JUSDATEST
Place of Origin:
China
Model Number:
JSD-PA130A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
2 days
Related Products
-
UL1278 Figure 8.2 Enameled Wire Test Probe PA140, Film-coated Wire RodUS$ 140 - 150MOQ: 1 Piece -
UL507 Fan Blades of Air Heaters Test Probe PA160BUS$ 140 - 150MOQ: 1 Piece
-
UL507 Figure8.2 Fan Impellers Moving Parts Test Probe S2140AUS$ 150 - 160MOQ: 1 Piece
-
UL507 Figure9.2 Jointed Finger for Uninsulated Live Parts PA100AUS$ 418 - 425MOQ: 1 Piece
-
IEC62368 UL Rigid Test Probe, Unjointed Finger for Uninsulated Live PartsUS$ 420 - 430MOQ: 1 Piece
Brand Name
JUSDATEST
Place of Origin
China
Model Number
JSD-PA130A
UL507 Uninsulated Live Parts Test Probe PA130A ,PA135A
According to UL1278, UL507 and other UL standards.UL test probe (PA130A test probe) is mainly used for the detection of noinsulated live parts.

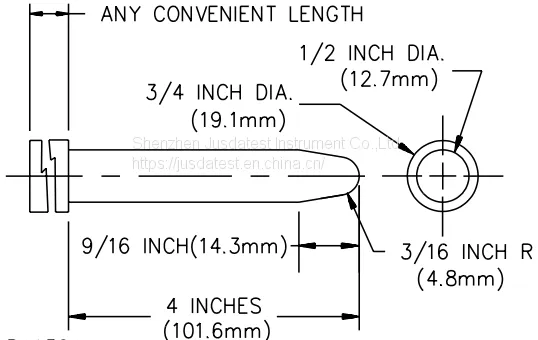

Technical parameter:
1. Diameter: 12.7mm (1/2 inch)
2. The total length of the probe: 101.6mm (4 inch)
3. Head length: 14.3mm (9/16 inch)
4. Head radius: R 4.8mm (3/16 inch)
5. Tail diameter: 19.1mm (3/4 inch)
6. Reference standard: UL507 (PA135A) figure 9.1, UL1278 (PA130A) figure 8.1
