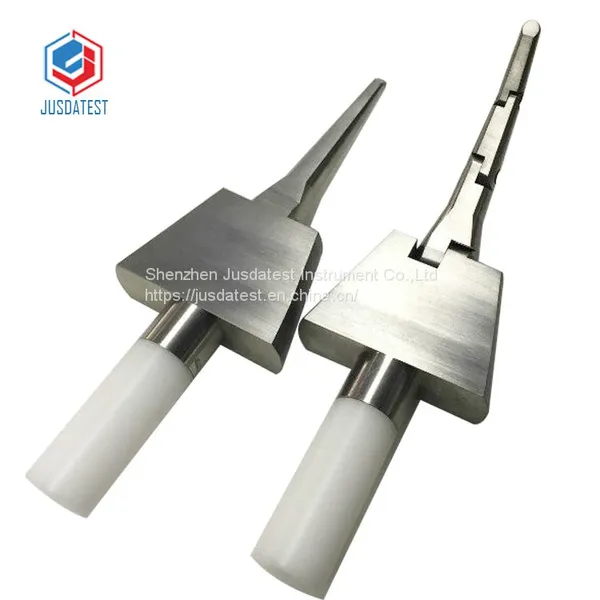

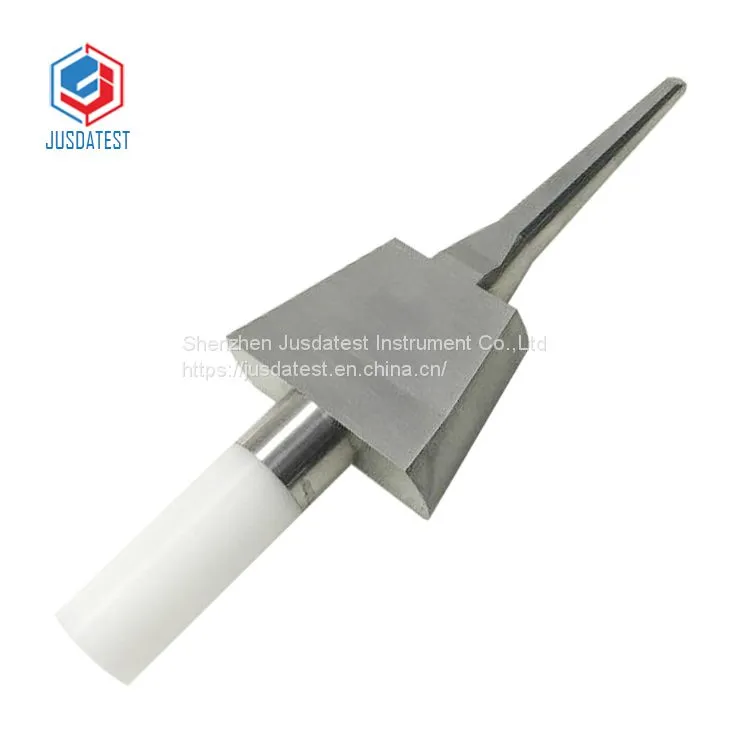

IEC62368 UL Rigid Test Probe, Unjointed Finger for Uninsulated Live Parts
1.Product Details
The probes according to IEC 62368-1 standard shall be used as measuring instruments to judge the accessibility to uninsulated live parts and film-coated wire provided by openings and not as instruments to judge the strength of a material. Force is not to be applied to the probe when judging accessibility.
Inserted through the opening, cannot be made to touch any uninsulated live part or film-coated wire that involves the risk of electric shock. The probe shall be applied in all possible articulated positions before, during, and after insertion.
2.Technical parameter:
Test finger root diameter: 25.4mm (1 inch)
Test finger top radius: 3.5mm / 30°
Test finger length: 101.6mm (4 inch)
Material: Stainless Steel, Nylon
