UL507 Fan Blades of Air Heaters Test Probe PA160B

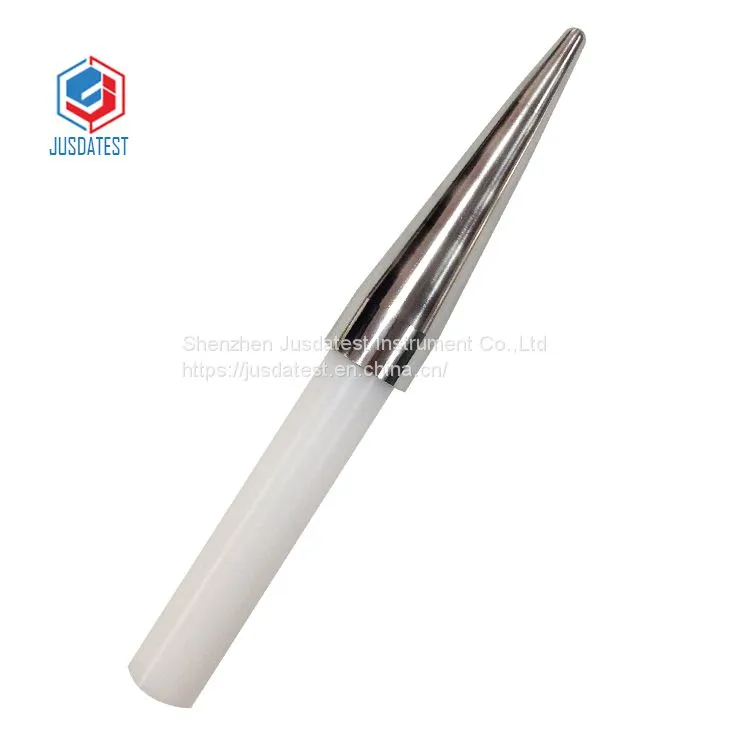

The UL test probe PA160B (PA160), which meets the requirements of UL507 Figure 8.1 (PA160B)、UL1278 Figure 9.1 (PA160) standards. It is used to protection air heater fan blade parts can not be touched.

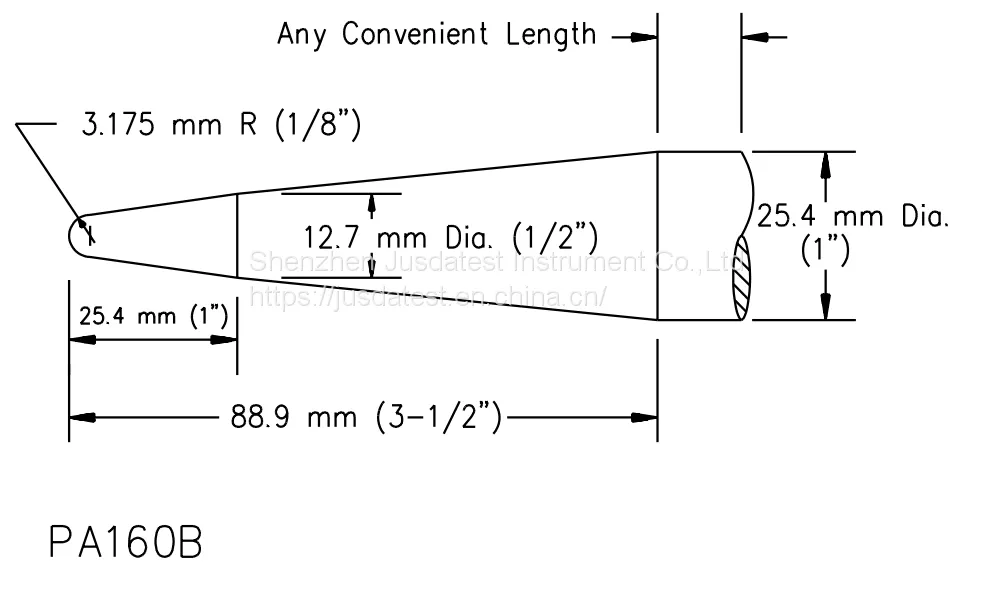

Technical parameters
1. The total length of the probe: 88.9mm (3.5 inch)
2. Head length: 25.4mm (1 inch)
3. Head radius: R 3.175mm (1/8 inch)
4. Diameter of front section of head: 12.7mm (1/2inch)
5. Tail diameter: 25.4mm (1 inch)
The portion of a fan blade that can cause a risk of injury to persons shall be guarded so that the probe cannot touch the part when inserted with a force of 1 lb (4.4 N) through any opening in the guard.
