IEC61032 Figure 14 Grinding Test Probe 31 Access to Hazardous Parts
US$ 140 - 150
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
JUSDATEST
Place of Origin:
China
Model Number:
JSD-31
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
2 days
Related Products
-
IEC61032 Figure 15 Fan Guards Access Probe 32 With Nylon HandleUS$ 110 - 120MOQ: 1 Piece -
IEC61032 Figure 17 Flat Test Probe 43 for Glowing Radiant HeatersUS$ 135 - 145MOQ: 1 Piece
-
IEC60335-1 Clause 20.2 50mm Circular Stop Face Jointed Test FingerUS$ 170 - 180MOQ: 1 Piece
-
IEC60335-2-64:20.2 Having a 56mm Non-circular Stop Face Test Finger Probe With Long HandleUS$ 250 - 260MOQ: 1 Piece
-
IEC60335-2-14:20.2 Diameter of 125mm With a Round Stop Plate Test Finger for BlenderUS$ 220 - 230MOQ: 1 Piece
Brand Name
JUSDATEST
Place of Origin
China
Model Number
JSD-31
IEC61032 Figure 14 Grinding Test Probe 31
According to IEC61032 Figure 14 standard,This probe is intended to verify the protection against access to hazardous mechanical parts of the grinding system of food waste disposal units.

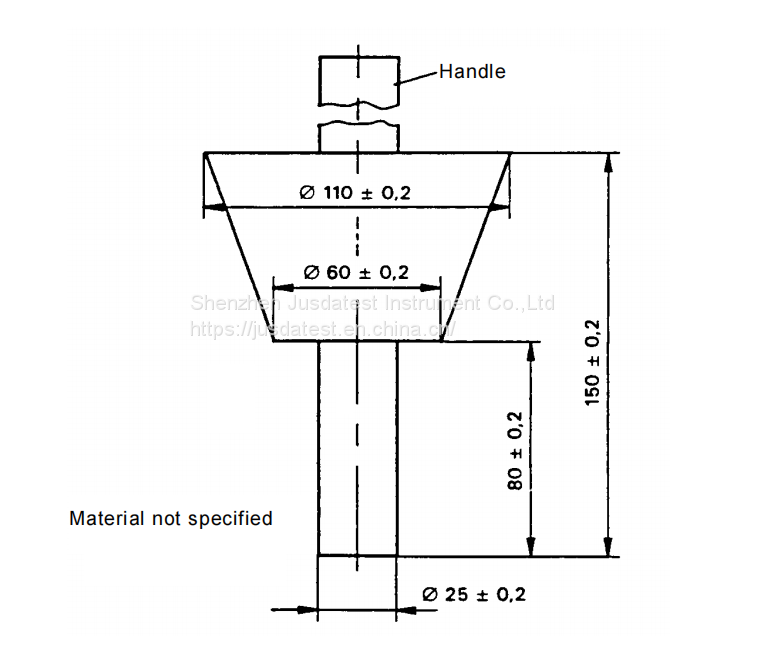

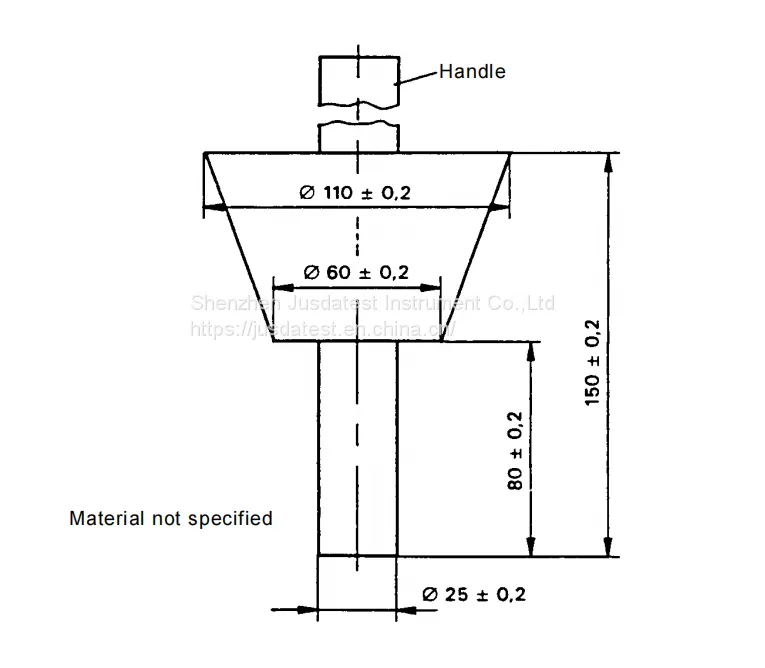

Technical parameter:
1. Probe diameter: Φ25±0.2 mm
2. Probe length: 80±0.2 mm
3. Front diameter of baffle: Φ60±0.2 mm
4. Diameter behind the baffle: Φ110±0.2 mm
5. Total length of probe and baffle: 150±0.2 mm
6. Reference standard: IEC61032 Figure 14
