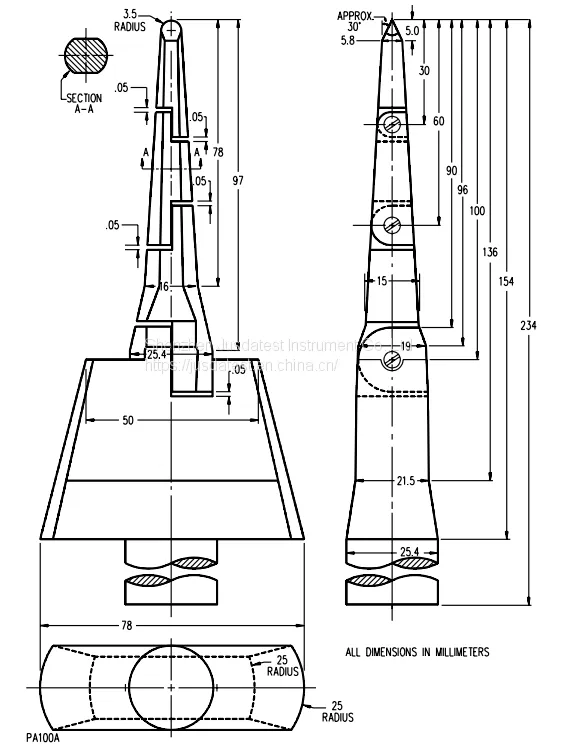

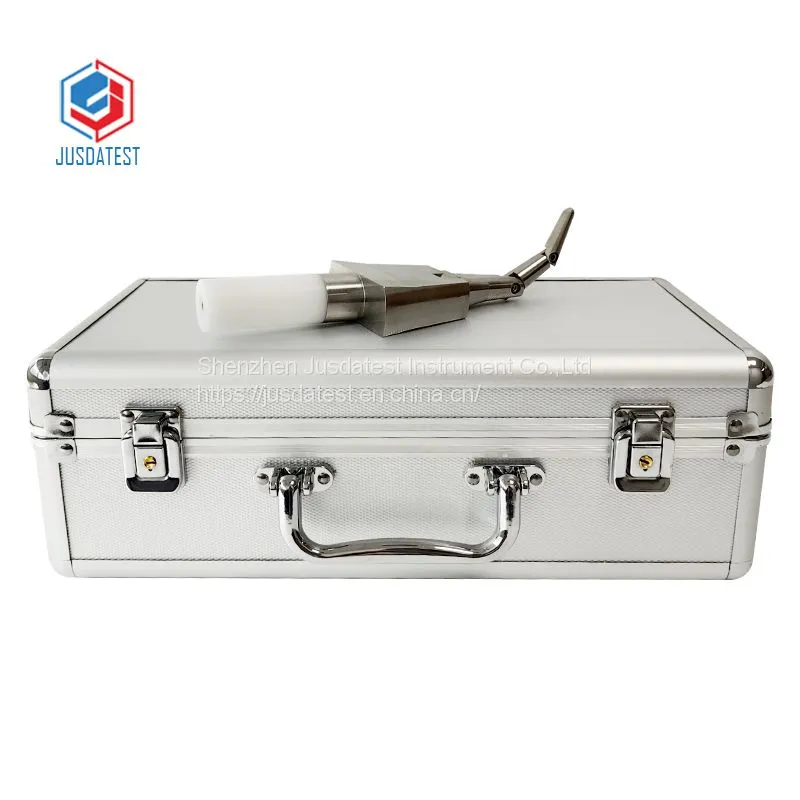

UL507 Figure9.2 Jointed Finger for Uninsulated live parts PA100A
The probes shall be used as measuring instruments to judge the accessibility to uninsulated live parts and film-coated wire provided by openings and not as instruments to judge the strength of a material. Force is not to be applied to the probe when judging accessibility.
Inserted through the opening, cannot be made to touch any uninsulated live part or film-coated wire that involves the risk of electric shock. The probe shall be applied in all possible articulated positions before, during, and after insertion.
1. According to UL507 Figure 9.2 (PA100A), UL1026 Figure 7.2 (PA100A), UL1278 Figure 8.3 (PA100A) and other UL standards.
