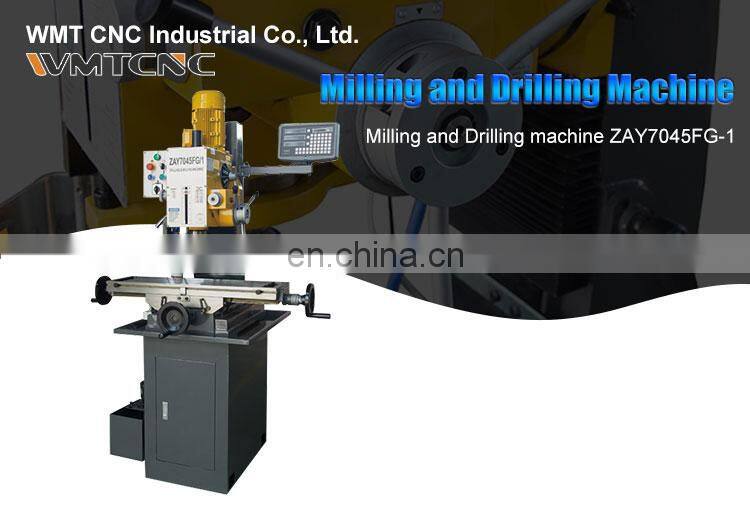

Table Milling Machine ZAY7045FG/1 AUTO FEEDING MILLING AND DRILLING MACHINE
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Table Milling Machine ZAY7013V Drilling and Milling for Hobby User From China
-
Small Milling Manual Universal Bridgeport Milling Machine ZX6350ZA for Metal Milling Function
-
WMTCNC New Vertical Manual Mills Machinery ZX5325C Metal Milling Machine From China With Competitive Price
-
High Quality Fresadora Universal X6325U Vertical and Horizontal Metal Mini Milling Machine From China
-
Milling Machine X6330 Factory Direct Sale Price Vertical Universal Milling Machine With CE
-
WMTCNC High Quality Metal Milling Machine XL6330 Vertical and Horizontal Milling Machine From China With CE for Sale

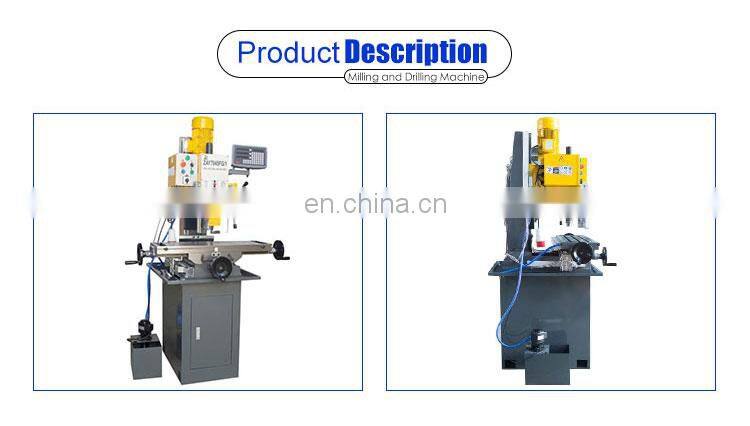

Product Description
Product Description
Drilling/Milling Machine ZAY7045FG/1 Features:
1. Spindle Auto-feedMilling, drilling, tapping, boring, reaming;
2. Head swivels ±90°verticaly;
3. Spindle micro feed precision;
4. Adjustable gibs on table precision;
5. Accurate position, strong rigidity, powerful cutting;
6. Gear-driven type and square column.
5. Accurate position, strong rigidity, powerful cutting;
6. Gear-driven type and square column.
Specification | ZAY7032FG/1 | ZAY7040FG/1 | ZAY7045FG/1 | ZAY7045M | |||
Drilling capacity | Φ32mm | Φ40mm | Φ45mm | Φ45mm | |||
Face milling capacity | Φ63mm | Φ80mm | Φ80mm | Φ80mm | |||
End milling capacity | Φ20mm | Φ32mm | Φ32mm | Φ32mm | |||
Distance from spindle nose to table | 450mm | 450mm | 450mm | 420mm | |||
Min.distance from spindle axis to column | 260mm | ||||||
Spindle travel | 130mm | ||||||
Spindle taper | MT3 MT4 or R8 | ||||||
Auto-feeding Step of spindle | 6 steps | ||||||
Auto-feeding amount of spindle | 0.06-0.30mm/r | ||||||
Range of spindle speed 50Hz | 80-1250 r.p.m | ||||||
60Hz | 95-1500 r.p.m | ||||||
Swivel angle of headstock (vertical) | ±45° | ||||||
Table size | 800×240mm | ||||||
Forward and backward travel of table | 175mm | ||||||
Left and right travel of table | 500mm | ||||||
Motor Power | 1.5kw | ||||||
N.W/G.W | 320/370kgs | ||||||
Packing size | 770×880×1160mm | ||||||

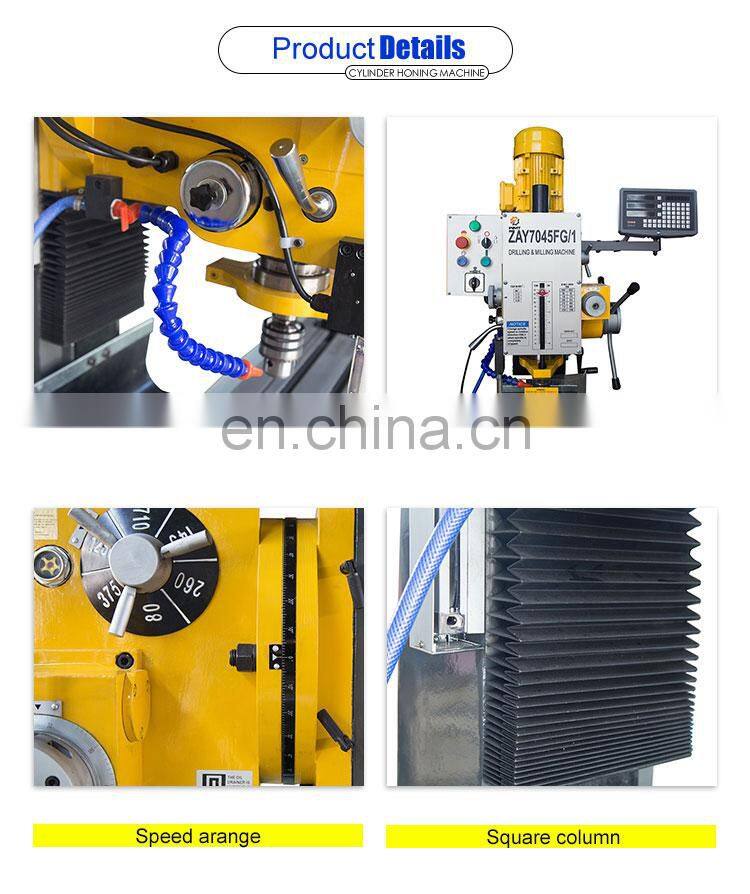

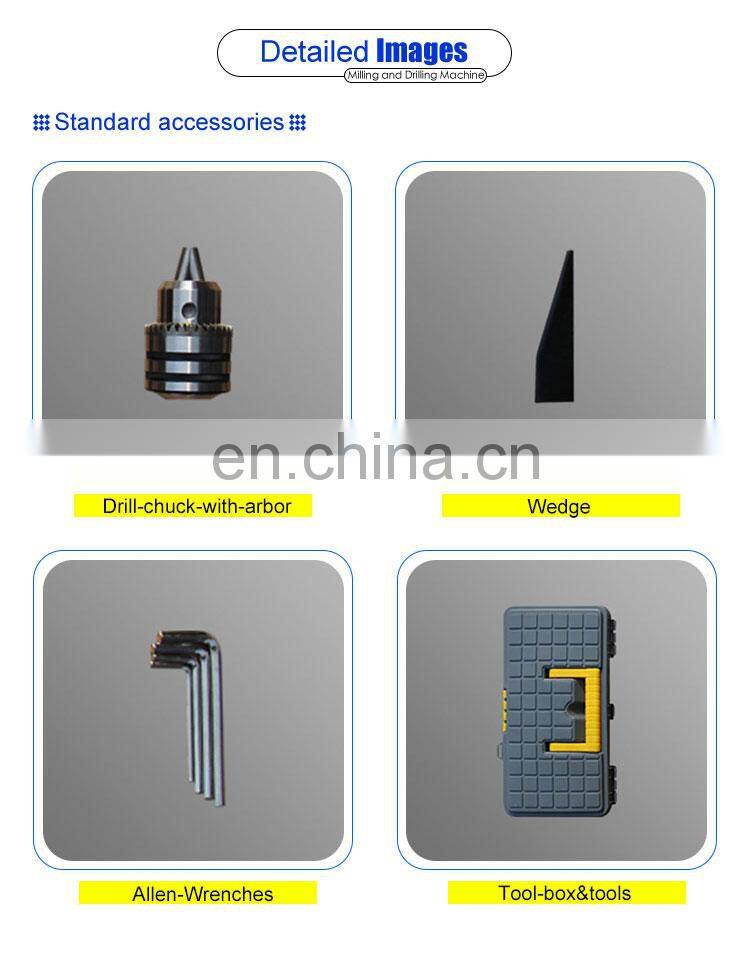

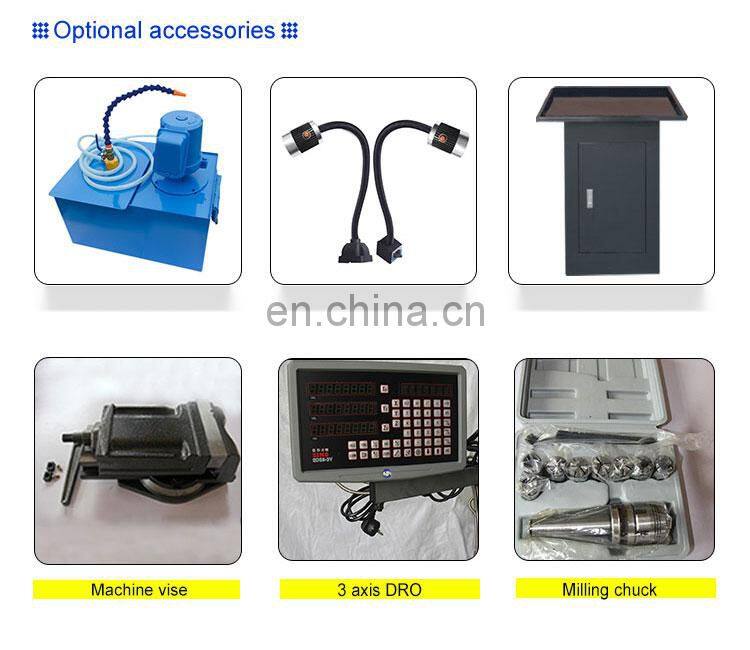

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
