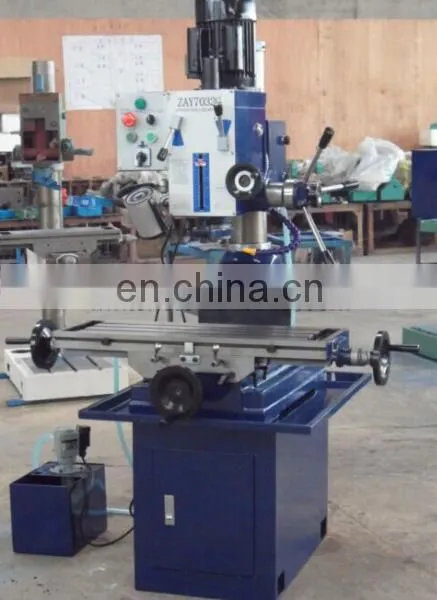

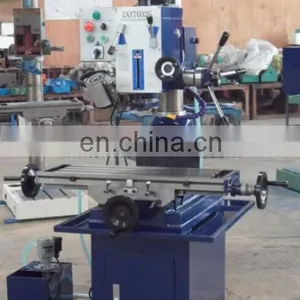

table milling machine ZAY7032G gear-driven type stand drilling and milling machine with swivel head

Name: table milling machine ZAY7032G gear-driven type stand drilling and milling machine with swivel head
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Products Description

Machine Features:

1) ZAY7032G Milling drilling,tapping boring, reaming. 2) Head swivels ±90° verticaly. 3) Spindle micro feed precisely. 4) Adjustable gibs on table precision. 5) Accurate position, strong rigidity, powerful cutting. 6) Gear-driven type and round column.

Model	ZAY7032G	ZAY7040G	ZAY7045G
Drilling capacity	Φ32mm(1-1/4")	Φ40mm(1-5/8")	Φ45mm(1-3/4")
Face milling capacity	Φ63mm(2-1/2")	Φ80mm(3-1/8")	Φ80mm(3-1/8")
End milling capacity	Φ20mm(3/4")	Φ32mm(1-1/4")	Φ32mm(1-1/4")
Distance from spindle nose to table	440mm(17-1/4")(optional 670mm)
Min.distance from spindle axis to column	272.5mm(10-3/4")
Spindle travel	130mm(5-1/8")
Spindle taper	MT3 or R8	MT4 or R8	MT4 or R8
Step of spindle speed	6 steps
Range of spindle speed 50Hz	80-1250 rpm
60Hz	95-1500 rpm
Swivel angle of headstock horizontally	360°
perpendicularly	±90°
Table size	800×240mm(31-1/2"×9-7/16")
Forward and backward travel of table	175mm(6-7/8")
Left and right travel of table	500mm(20")
Motor power	0.75KW	1.1KW	1.5KW
Net weight/gross weight	315kg/365kg	318kg/368kg	318kg/368kg
Packing size	770×880×1160mm
Loading amount/20" container	36pcs

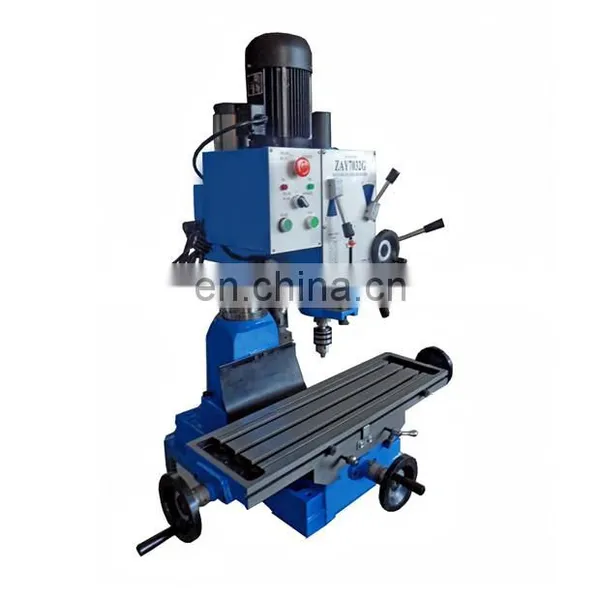

Detailed Images

Stand accessories :

1) Drill chuck and arbor 2) Draw bar 3) Allen wrenches 4) Wedge 5) Toolbox with tools

Company Profile

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?

A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?

A4:One set only.

Q5:How about your quality?

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?

A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?

A7:Yes, we can design and manufacture according to your specific requirements.
