WMTCNC High Quality Metal Milling Machine XL6330 Vertical and Horizontal Milling Machine From China With CE for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Table Milling Machine X6336U Vertical Universal Milling Drilling Machine PriceNegotiableMOQ: 1 -
Radial Drilling Machine Z3063X20/1 Radial Drilling Machine in Drilling MachinesNegotiableMOQ: 1
-
ZN5040A Manual Machine Vertical Drilling Machine With Low PriceNegotiableMOQ: 1
-
Universal Milling X6332WA Manual Milling Machine With CE for SaleNegotiableMOQ: 1
-
Small Milling XL6436CL Milling Machines With CE Made in ChinaNegotiableMOQ: 1
Product Description

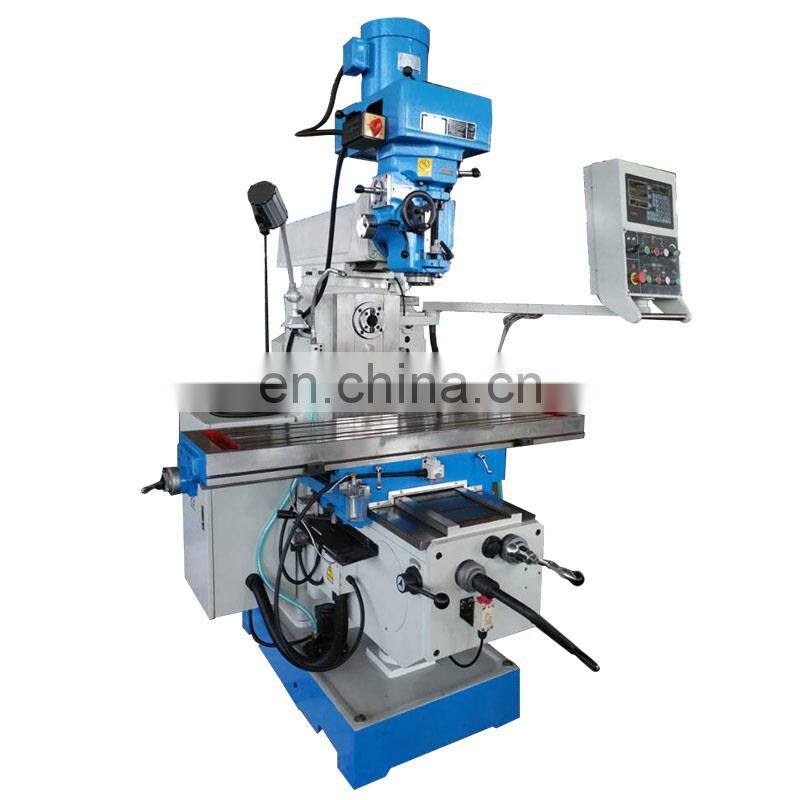

Metal milling machine XL6330 Vertical and Horizontal milling machine from China
Specifications | Unit | XL6330 | XL6330A | |
Table size | mm | 1270X300 | 1370X300 | |
Table travel (X/Y/Z) | mm | 720/300/400 | 820/300/400 | |
Rapid speed of table (X/Y/Z) | mm/min | 1335/1335/1000 | ||
Spindle taper | Vertical : 3HP: R8 or ISO30; 5HP: ISO40 Horizontal : ISO40 | |||
Table feed (X/Y/Z) | mm/min | XY:30-830 Z:23-625 | ||
Distance between horizontal nose and table surface | mm | 75-475 | ||
Distance between spindle axis and ram surface | mm | 200 | ||
Spindle speed range | r/min | vertical:1,variable speed 43-3225 2,step speed 65-4660(16 steps) | ||
horizontal 35-1500 (12steps) | ||||
T-slots(No./width/pitch) | mm | 3/14/80 | ||
Arm travel | mm | 450 | ||
Main motor power | vertical: 3hp / 5hp horizontal: 3kw | |||
Torque of X/Y/Z axis AC servo motor | N.m | 10 | ||
Overall size | mm | 1720×1680×2350 | 1820×1680×2350 | |
Net weight | kg | 1650 | 1700 | |
Machine pics.
Standard Accessories
7:24 middle cover | 7:24 ISO50/MS4 |
Horizontal arbor assembly | dia. 27 |
Horizontal arbor assembly | dia. 32 |
Drawbar | M24 |
Double-ended wrench | S22-24 |
Double-ended wrench | S17-19 |
Double-ended wrench | S36-41 |
Inner hexagonal wrench | 5 |
Inner hexagonal wrench | 10 |
Inner hexagonal wrench | 14 |
QB13 Series Machine vice | 160mm |
sleeve | M24 |
Washer | M24 |
Iso 50 sets milling chuck | 7:24 ISO50 456810121416 |
Taper shanl sets milling cutter arbor | 7:24 ISO50-dia.32 |
Operation manual | |
The packing list | |
certification | |
EP1C series servo drive manual |
Warranty:
One Year After You Receive Our Machines!
Service Hotline 24 Hours On Line!
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
