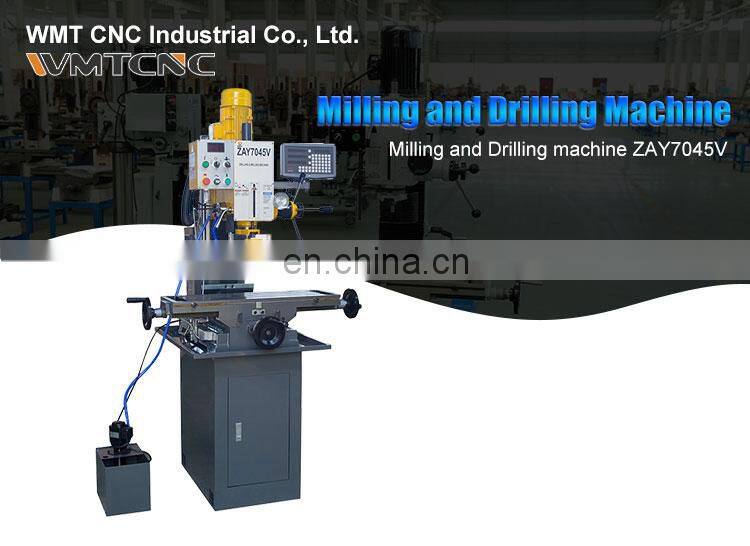

Table Milling Machine ZAY7045V Variable Speed Milling Machine for Metal Working
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Table Milling Machine ZX32G Hot Sales Vertical Combination Drilling and Milling Machine
-
Table Milling Machine ZAY7032G Gear-driven Type Stand Drilling and Milling Machine With Swivel Head
-
Table Milling Machine ZAY7045M Universal Milling Machine Price With Rotary Worktable
-
Table Milling Machine ZAY7045FG/1 AUTO FEEDING MILLING AND DRILLING MACHINE
-
Table Milling Machine ZAY7013V Drilling and Milling for Hobby User From China
-
Small Milling Manual Universal Bridgeport Milling Machine ZX6350ZA for Metal Milling Function
Product Description
Product Description
ZAY7045V Drilling and Milling Feature:
1. Variable speed;
2. Milling, drilling, tapping, boring and reaming;
3. Head swivels ±90°vertically;
4. Micro feed precision;
5. Adjustable gibs on table precision;
6. Strong rigidity, powerful cutting and precise positioning.
Model | ZAY7032V | ZAY7040V | ZAY7045V | ||
Max drilling capacity | 32mm | 40mm | 45mm | ||
Max Face mill capacity | Φ63mm | Φ80mm | Φ80mm | ||
Max End mill capacity | Φ20mm | Φ32mm | Φ32mm | ||
Max distance from spindle nose to table | 400mm | 450mm | |||
Min distance from spindle axis to column | 260mm | ||||
Spindle travel | 130mm | ||||
Spindle taper | MT3 , MT4 or R8 | ||||
Range of spindle speed | 100-530rpm 530-2600rpm | ||||
Swivel angle of headstock (perpendicular) | ±90° | ||||
Table size | 800×240mm | ||||
Forward and backward travel of table | 175mm | ||||
Left and right travel of table | 500mm | ||||
Motor Power | 1.1KW/1.1KW/1.5KW | ||||
Net/Gross weight | 300kgs/ 350kgs | ||||
Packing size | 770×880×1160mm | ||||
Loading amount/20" container | 36pcs | ||||

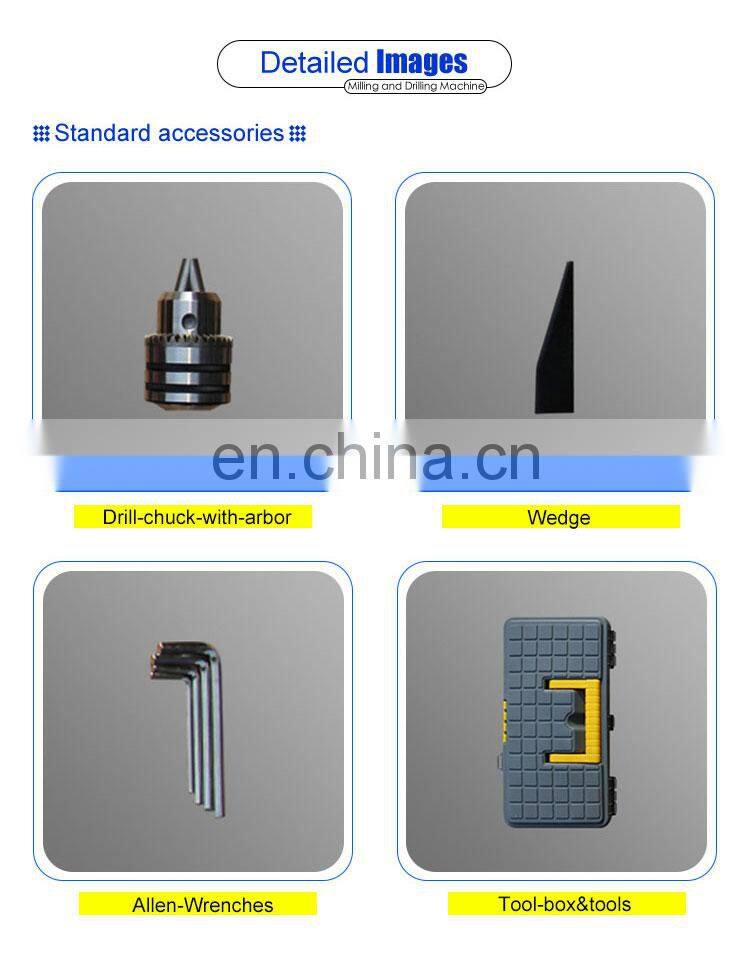

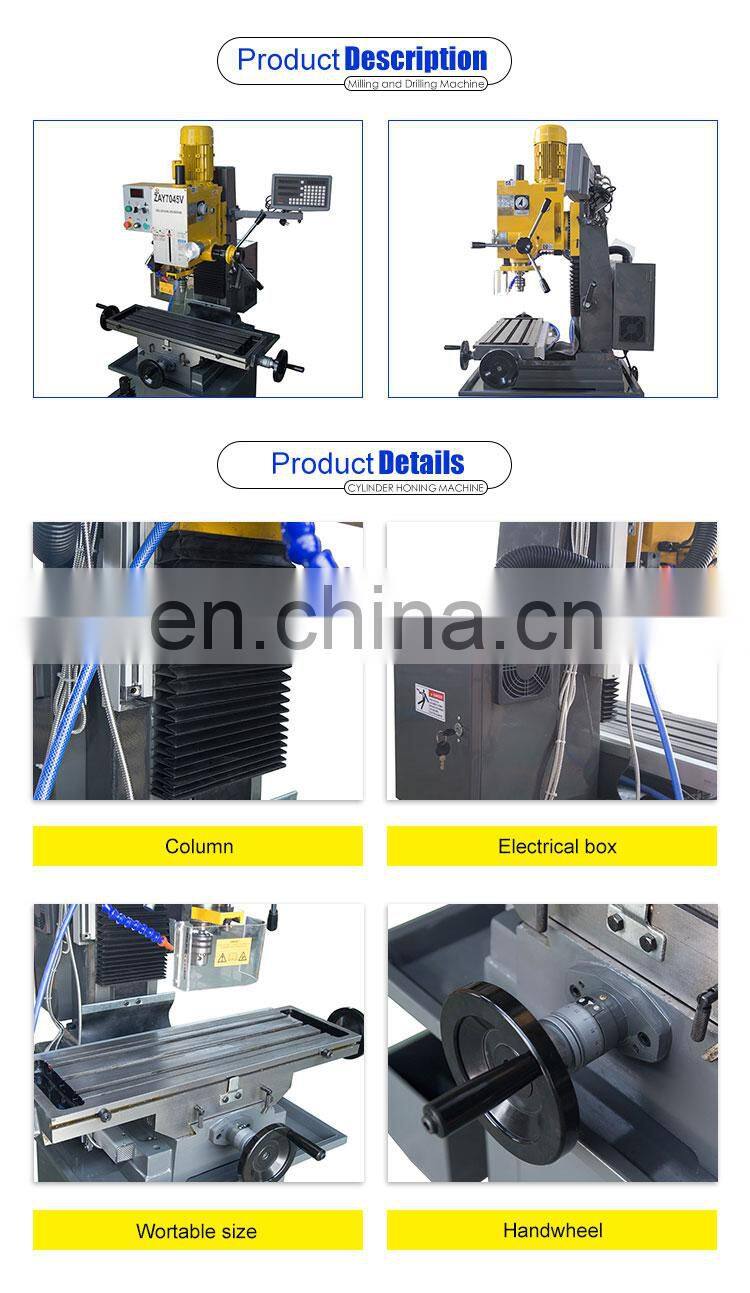

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
