Desktop Cnc Milling Machine for Metal X5746 High Rigid Metal Milling Machine Small Type Milling Machines

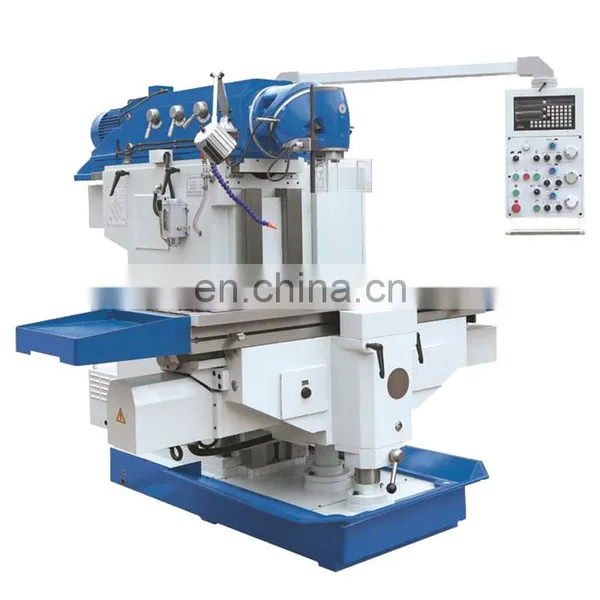

Desktop Cnc Milling Machine for Metal X5746 High Rigid Metal Milling Machine Small Type Milling Machines photo-1

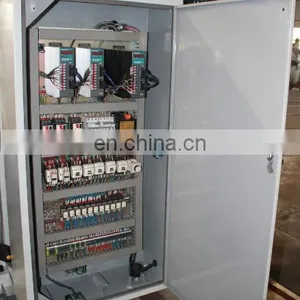

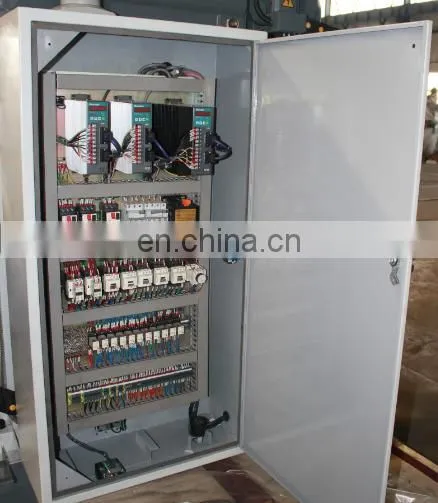

Desktop Cnc Milling Machine for Metal X5746 High Rigid Metal Milling Machine Small Type Milling Machines photo-2

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Contact Supplier Request Quote Chat Now

Jingjiang Fuji Technology Co., Ltd.

4Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Product Description

X5746 X5750 Series Milling Machine Main Feature 1. Table 3 axes with ball screws, high precision; 2. Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability, easy to operate; 3. Mechanical change speeds in head stock, powerful milling; 4. Table with an extra supporting column, big load, high accuracy; 5. It can mill any angle surface through front half-sphere by swivelling milling head.

Specifications	Unit	X5746	X5750	X5750A
Table size	mm	460*1235	500*1600	500*2000
T-slots(NO./width/pitch)	mm	51880
Table travel (X/Y/Z)	mm	900650450	1200700500	1400700500
Swivel angle of milling head	-	360°
Spindle taper	-	ISO40	ISO50	ISO50
Spindle speed range	r.p.m	(27) 30-2050
Table feed(X/Y/Z)	mm/min	10-1000/10-1000/6-640	10-1000/10-1000/5-500
Table rapid speed	mm/min	2200/2200/1100
Distance between spindle nose and table surface	mm	50-500	50-550
Distance from spindle center line to column	mm	36-686	45-745
Main motor power	Kw	5.5	7.5	7.5
Feed motor	Kw	AC servo motor X/Y:18NM; Z: 27NM
Max load	Kg	800	1800
Overall size	mm	183523622090	262524602080	262528602080
weight	kg	3600	4200	4500

Detailed Images

Standard Accessories

Draw bar

Machine chuck

ISO40/ISO50

End face milling cutter handle Double-ended wrench

Allen wrench

Operation manual

Certification

Optional Accessories

Schneider electric components

Aluminum alloy support arm

3-axis DRO

Spindle cover

Work table cover

LED work lamp

Automatic lubrication pump

Company Profile

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?

A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?

A4:One set only.

Q5:How about your quality?

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?

A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?

A7:Yes, we can design and manufacture according to your specific requirements.
