Table Milling Machine Manual Universal Bridgeport Milling Machine ZX6350ZA for Metal Milling Function
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Table Milling Machine Swivel Head Knee Milling MachineNegotiableMOQ: 1 -
Table Milling Machine ZAY7045V Variable Speed Milling Machine for Metal WorkingNegotiableMOQ: 1
-
Table Milling Machine ZX32G Hot Sales Vertical Combination Drilling and Milling MachineNegotiableMOQ: 1
-
Table Milling Machine ZAY7032G Gear-driven Type Stand Drilling and Milling Machine With Swivel HeadNegotiableMOQ: 1
-
Table Milling Machine ZAY7045M Universal Milling Machine Price With Rotary WorktableNegotiableMOQ: 1
Products Description
Manual Milling machine ZX63500ZA Features:
Headstock swivels ±45º
Hardened bed way
Difference between ZX6350C, ZX6350Z, ZX6350ZA
ZX6350C: Spindle manual feeding, X/Y/Z manual feeding
ZX6350Z: Spindle auto feeding, X/Y/Z manual feeding
ZX6350Z: Spindle auto feeding, X/Y/Z auto feeding
Specification | ZX6350C | ZX6350Z | ZX6350ZA | ||
Max.drilling dia | Φ50/Φ30mm | Φ50/Φ30mm | Φ50/Φ30mm | ||
Spindle taper | ISO30,ISO40,R8, MT4 | ||||
Max.vertical milling dia | 25mm | ||||
Max boring dia | 120mm | ||||
Distance spindle to table surface | 100-480mm | 140-490mm | 80-460mm | ||
Spindle speeds range(V/H) | 115-1750rpm/40-1300rpm | 90-2000/38-1310rpm | 90-2000rpm/40-1300rpm | ||
Spindle travel | 120mm | ||||
Table size | 1120×280mm | 1120×280mm | 1250×320mm | ||
Table travel | 600×260mm | 600×260mm | 600×300×430mm | ||
Main motor power(V/H) | 0.85/1.5,2.2kw | 2.2,2.2kw | 1.5,2.2kw | ||
Packing size | 1400×1630×2350mm | 1400×1630×2350mm | 1680×1480×2250mm | ||
N.W/G.W | 1200kg/1350kg | 1200kg/1350kg | 1450kg/1560kg | ||

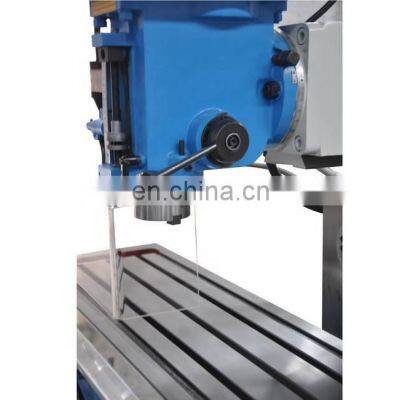

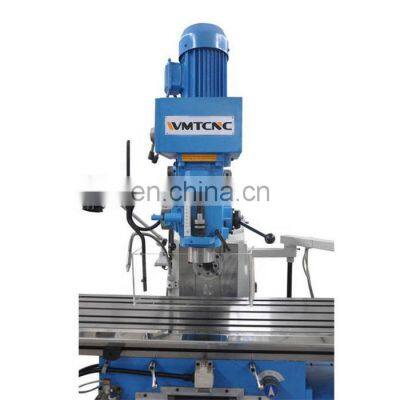

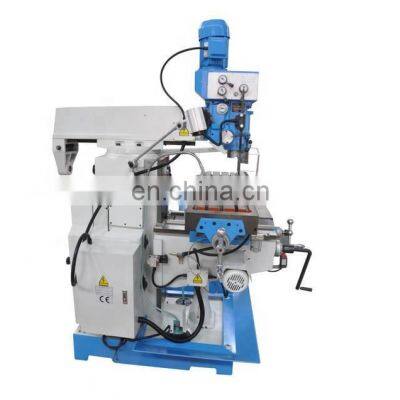

Detailed Images
Standard Accessories:
coolant system,
milling chuck,
worling lamp,
parallel vise QH160mm,
oil tray, wrench, reduction sleeve ,
horizontal milling bar
drill chuck, draw bar,
Optional Accessories

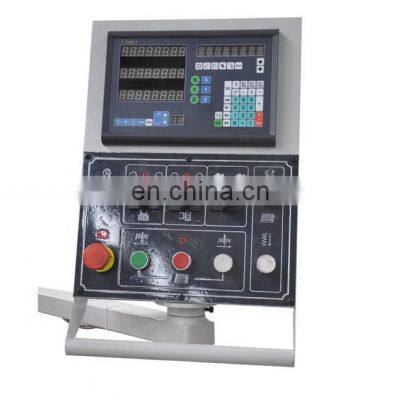

3-axis DRO
58 pcs clamping kit
Dividing head
Rotary table
Spindle protection
CE Electrical part
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
